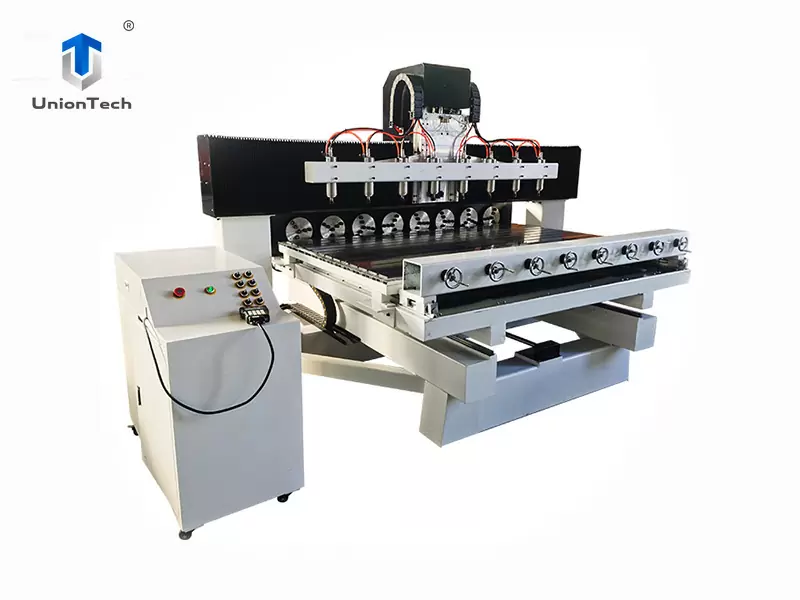

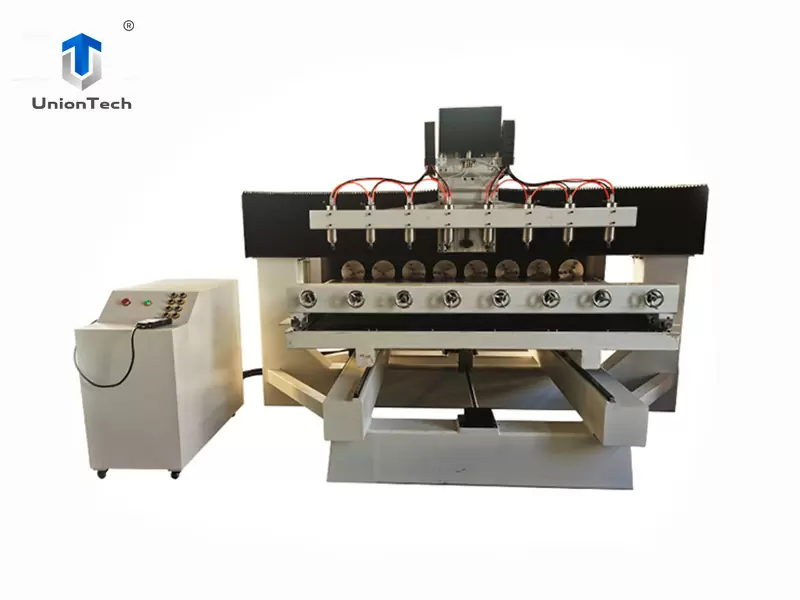

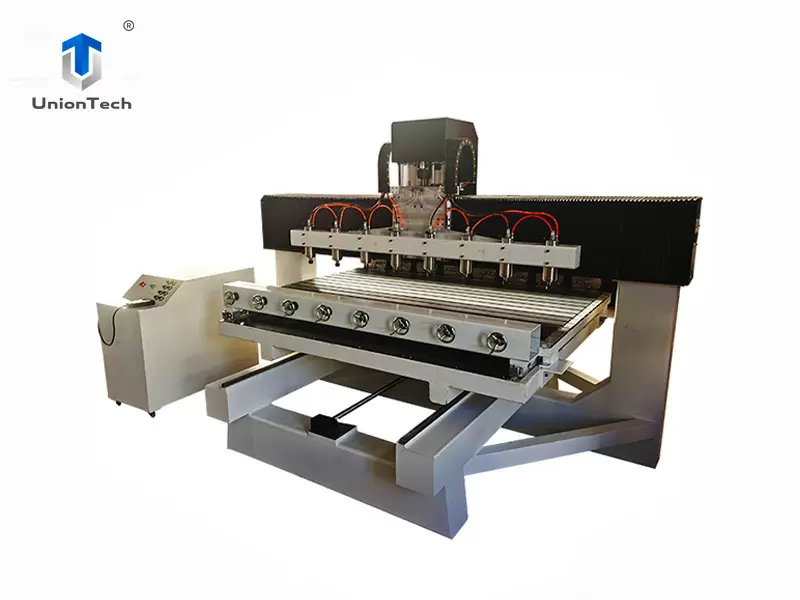

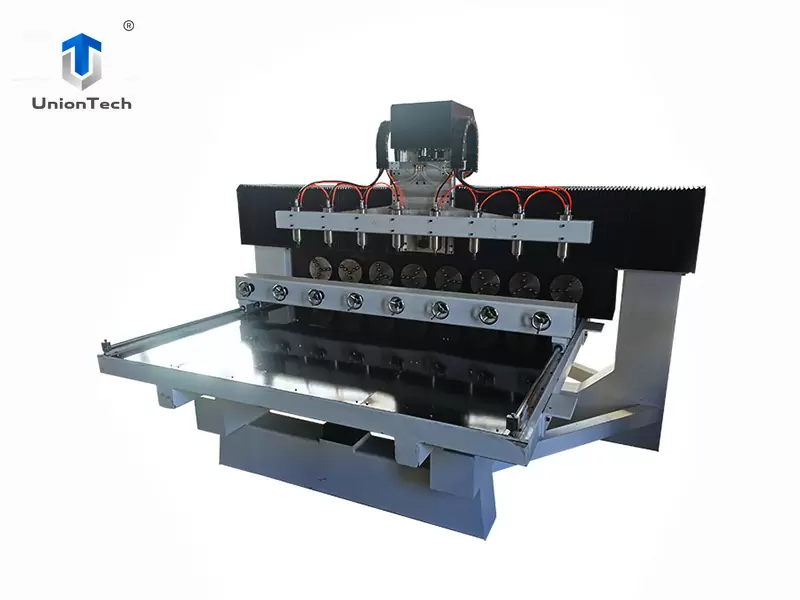

Economic Price Automatic Wood Engraving Machine Multi Spindle 3D CNC Router With 8 Heads

Brand : UnionTech
Model : UT-2015 multihead cnc router
Category : Multihead cnc router
Price Range : $12000 to $250000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter

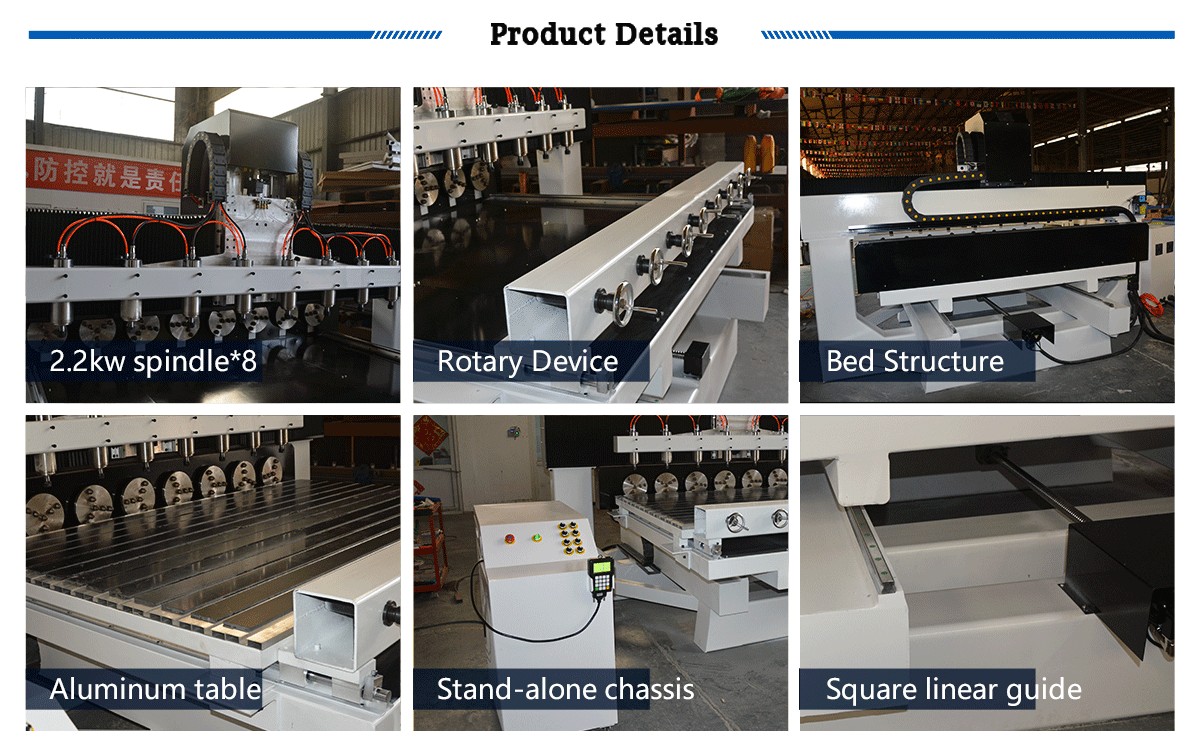

Parts
Applications



1. UnionTech 4 axis CNC router uses HIWIN25 linear square rails, XYZ axis adopts import ball

screw, move smoothly, high accuracy carving. high-speed low noise.

2. UnionTech 4 axis  CNC router has widened machine head part assembly additional bob-weight.

and ancillary shorting, make the whole machine move more smoothly.

3. UnionTech 4 axis CNC router with computer connection directly, support break, continue

carving after cut off electric.

4. UnionTech 4 axis CNC router has multi-function, it can make the machine work on flat or cylinders.




X,Y,Z Working Area2000*1500*300mm for flat working,200mm diameter, 2000mm length for rotary axis
Table SurfaceMovable T-slot Table
FrameWelded Structure
X, Y Structure25# HIWIN linear guide, helical rack
Z StructureHiwin Rail Linear guide and TBI Ball Screw
Max. Power Consumption(Without Spindle)2.5kw~3kw
Spindle Power8* 2.2kw water cooling spindle
Spindle Speed0-24000RPM
Drive MotorsLeadshine 850W servo motor
Working VoltageAC380V/50-60Hz,3PH (Option: 220V/1phase)
Command LanguageG Code
Operating SystemMach3  control system
Rotary device8 sets, 200mm diameter
Computer InterfaceUSB
Software CompatibilityType3/UcancameV9 Software, (Option: Artcam Software)
Optional partsJapanese YASKAWA servo motor,Italy HSD air cooling spindle
