Parameters:

Model

UT1325 atc cnc router

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

SIEMENS 808D control system

Control box

Imported Rittal control box

Spindle

9KW HSD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

Germany SIEMENS servo driver and motor

Inverter

11kw DELTA inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 4   zones

Gantry structure

Gantry Moving

Vacuum pump

7.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Lubrication system

Auto

Dust collector

3kw double packages

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Becker vacuum pump


The machine details:

undefined

20180525154455286.jpg@!w400

20180525154449360.jpg@!w400

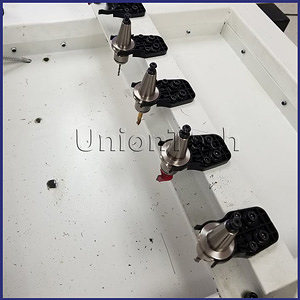

SIEMENS control systemItaly 9kw HSD ATC air cooling spindleLinear tool storage

20180525154647594.jpg@!w400

20180507144227509.jpg@!w400

20180525154747925.jpg@!w400

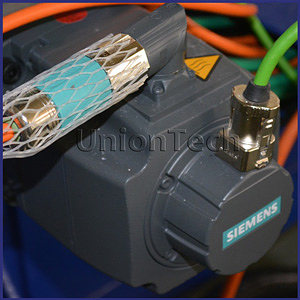

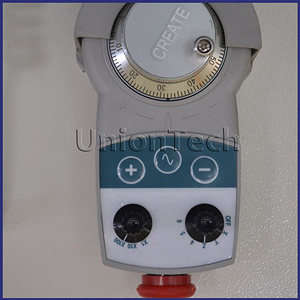

SIEMENS servo motor 1kwMPG for SIEMENS controllerPMI guide rails and limit switch


Applictions:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



4. relief sculpture, 3D engraving & Cylinder object engraving.
