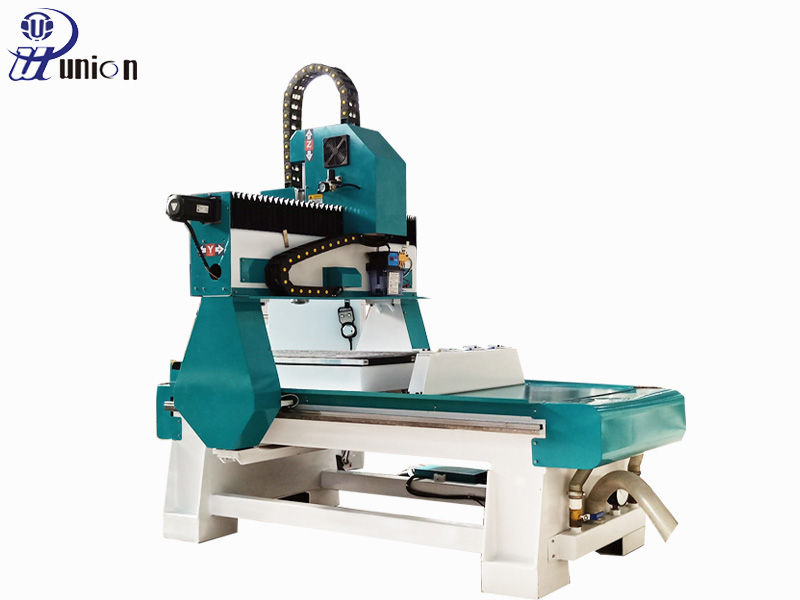

auto tool changer cnc router 6090

Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter
Parts
Applications

Technical Parameters:



Model

UT6090ATC

Working area

600*900*200mm (can be customized)

Working Voltage

220V, 1PHASE, 50HZ (can be customized)

Control System

RichAuto B57

Spindle

2.2KW HQD water cooling ATC spindle

Spindle speed

0-24000RPM/MIN

Motor and Driver

Leadshine easy servo motor

Inverter

Fuling inverter

Structure

Welded heavy duty

Table surface

Vacuum and T-slot

Gantry structure

Gantry Moving

Transmission

3 Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Applications

Wood, MDF, PVC, Acrylic, Leather, Carpet,   Carton, Rubber, Corrugated box, Foam, Leather strip.



Main parts:

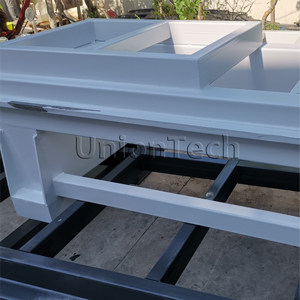

Machine bedControl boxLinear type tool bank

20180504114800194.jpg@!w400

20180504114758926.jpg@!w400

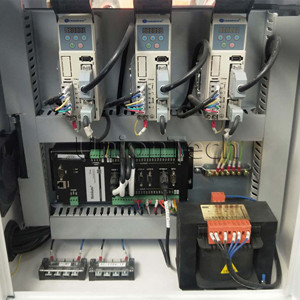

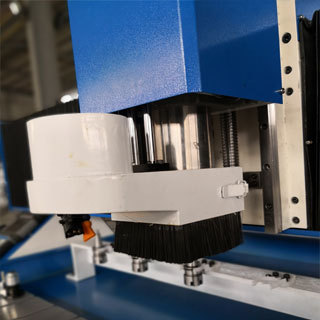

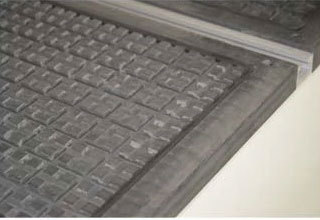

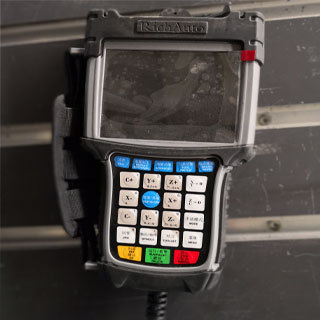

ATC water cooling spindleControl systemVacuum working table


Applications:

Used in advertising line, shoes’ moulding making and etc.

It can process aluminum, pvc, acrylic, pcb, mdf, stone, etc.

Well suited for processing panel. insulating materials, plastic, expoxy resin. carbon mixed compound, etc.

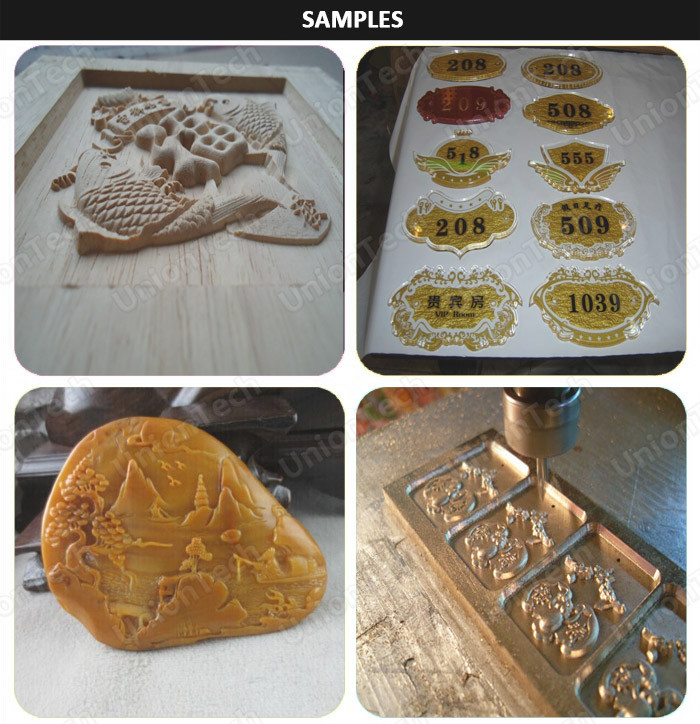

Samples:


20180503162710463.jpg@!w1200
