8 spindles cnc router with rotary devices

Working area:2000*3000*300mm
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications

Technical Parameters:



Model

UT2030 multi spindle

Working area

2000*3000*300mm (can be customized)

Rotary axis

200mm diameter,2000mm length

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Weihong NK280 4 axis controller

Spindle

2.2KW HQD water cooling*6

Spindle speed

0-24000RPM/MIN

Motor and Driver

Leadshine easy servo motor and driver

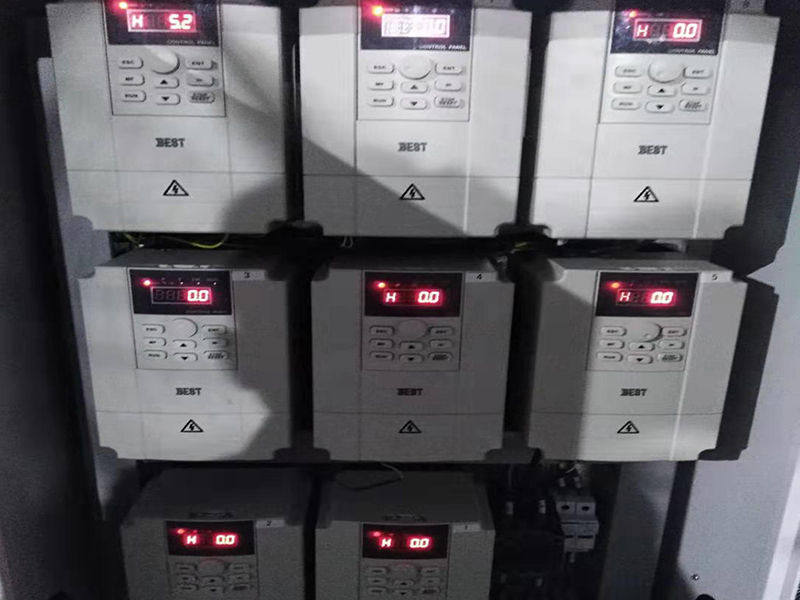

Inverter

Fuling inverter

Guide rails

Taiwan Hiwin rail

Structure

Heavy steel welding

Table surface

T-slot

Gantry structure

Gantry Moving

Transmission

XY gear rack, Z ball screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Applications

Flat engraving and cylinder engraving



Parts of multi spindle cnc router:

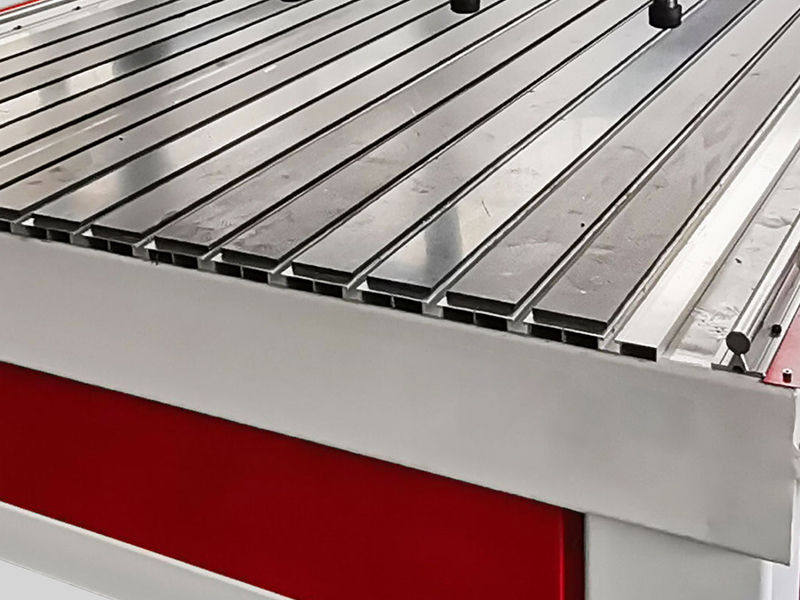

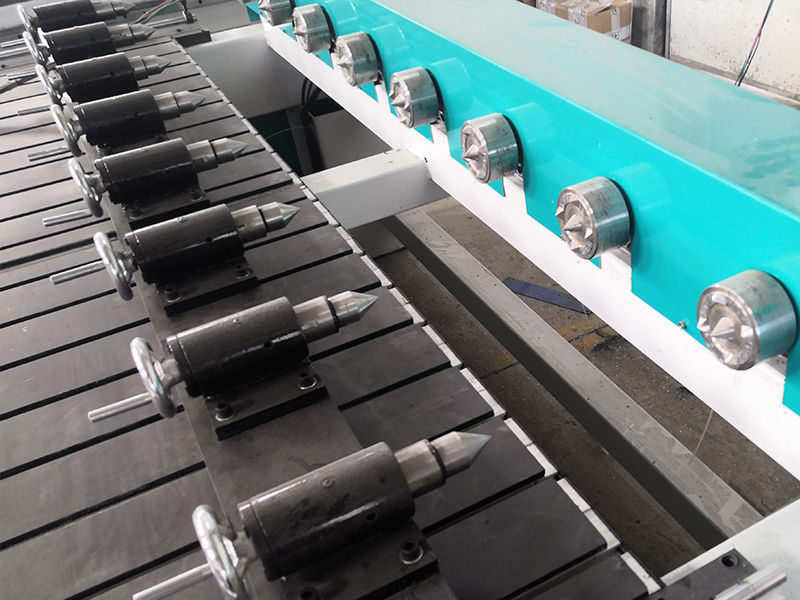

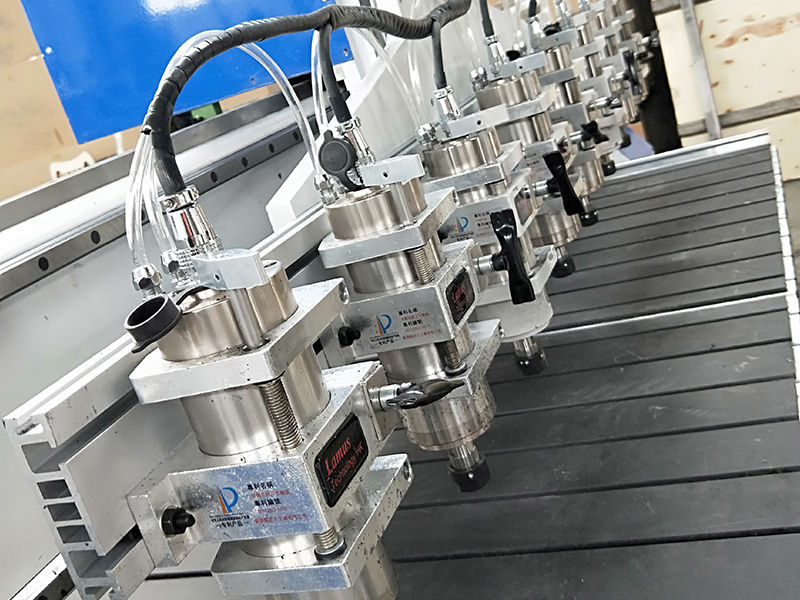

2.2kw HQD water cooling spindlesrotary axis, 250mm diameterTable Surface T-slot

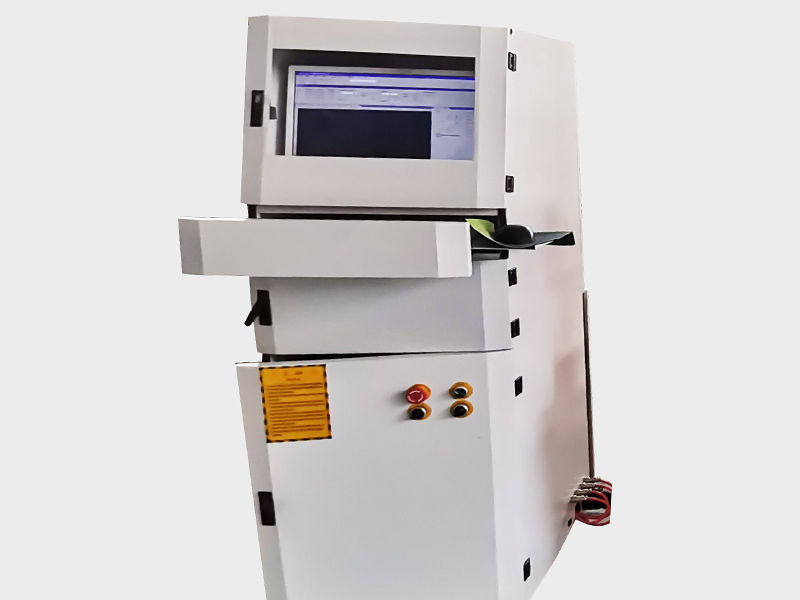

Control box

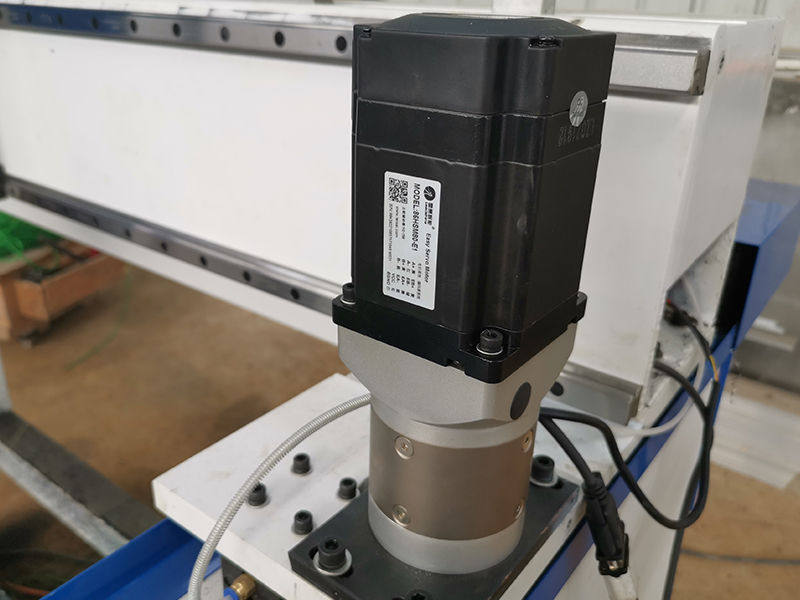

Easy servo motorinverter

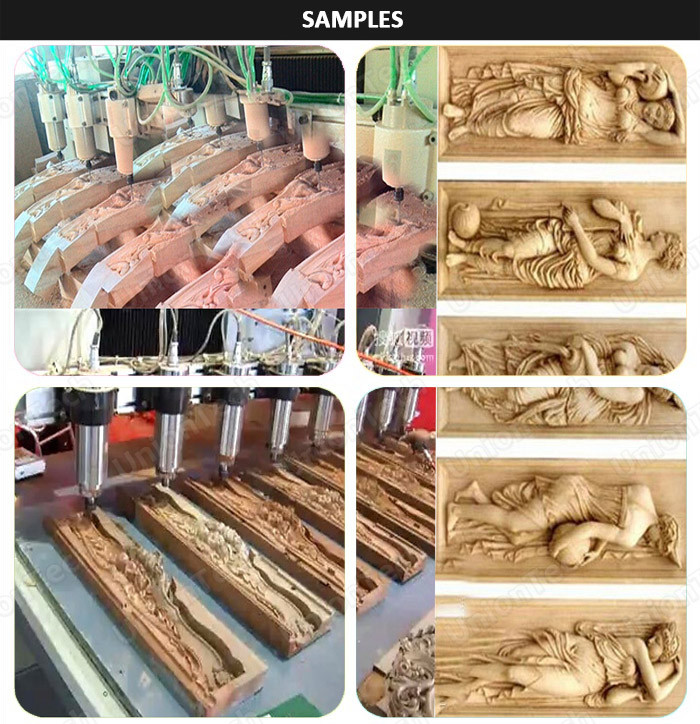

Applications:


Wood processing: cutting and carving on any kind of wood for making furniture,

such as door, window, cabinet, craft wooden door, chairs and so on.

Professional suitable for the legs of chair, stair railing, and 3D designs.
