Parameters:

Model

UT1325-P3

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP B15 control system

Spindle

2pcs* 3kw HSD air cooling spindles and   1pcs 6kw HSD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

YASKAWA servp driver and servo motor

Inverter

7.5kw DELTA inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 3   zones

Gantry structure

Gantry Moving

Vacuum pump

7.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Lubrication system

Manual

Transmission

X,Y Axis: Helical rack, Taiwan PMI 25#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Dust collector
3kw double packages

Optional

Rotary device: 200mm diameter* 2000mm   length


Machine details:

20180503142752112.jpg@!w400

20180502154906984.jpg@!w400

20180428152238636.jpg@!w400

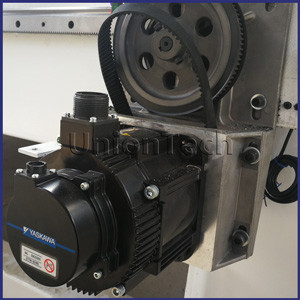

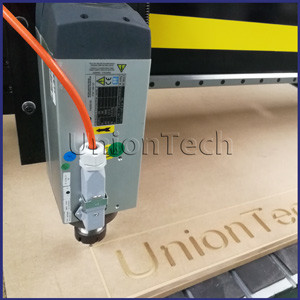

Italy HSD air cooling spindlesJapanese YASKAWA servo motorTaiwan DELTA inverter

20180505094919136.jpg@!w400

20180504114800930.jpg@!w400

20180428152240907.jpg@!w400

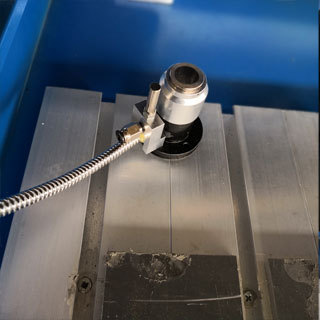

PMI 25 guide railsAuto tool sensorTBI ball screw for Z axis


1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,

interior doors, sofa legs, headboards and so on.


2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,

and other advertising materials derivatives making.


3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe,

wooden planks and other non-metallic mold.
