Parameters:

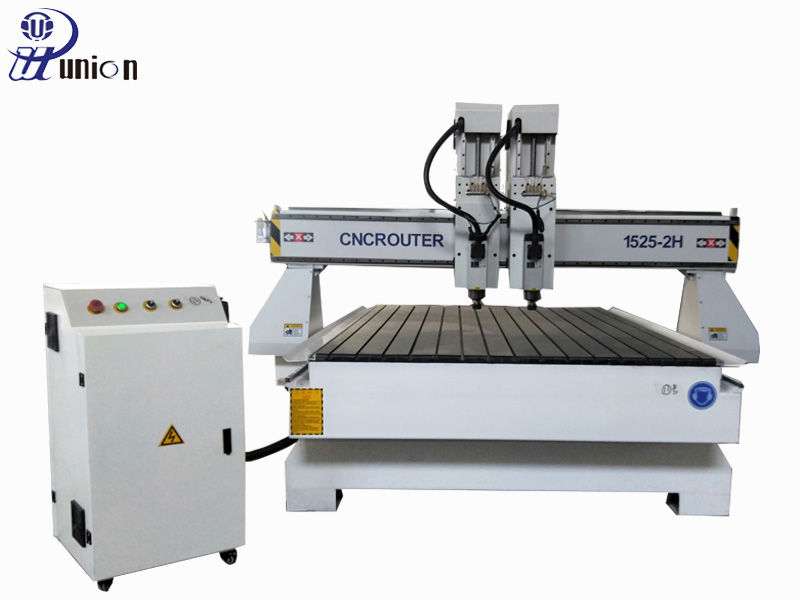

Model

UT-1525-2H

Working area

1500*2500*300mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP A11 control system

Control box

Independant control box

Spindle

2pcs* 3.5kw HQD air cooling spindles

Spindle speed

0-18000RPM

Motor and Driver

YAKO2811 driver and stepper motor

Inverter

3.7kw Fuling inverter

Structure

Heavy duty thicker and bigger welded frame and gantry

Table surface

T-slot Working Table with PVC

Gantry structure

Gantry Moving

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/TBI 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length


Advantages:

  • Multi heads can also work alone, and control its heads independently .

  • The distance of 2 heads and working area can be customized according your requirements.

  • Please notice that it is an economical processing machine.


Machine details:

20190612085032880.jpg@!w400

20190612085032582.jpg@!w400

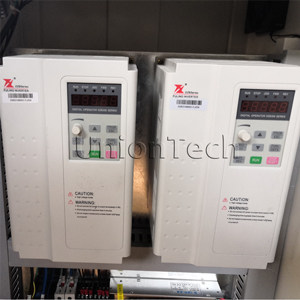

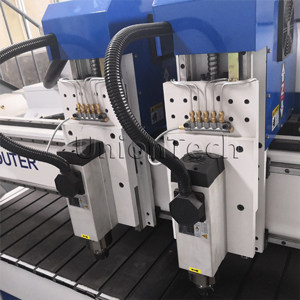

HQD air cooling spindlesFuling inverter

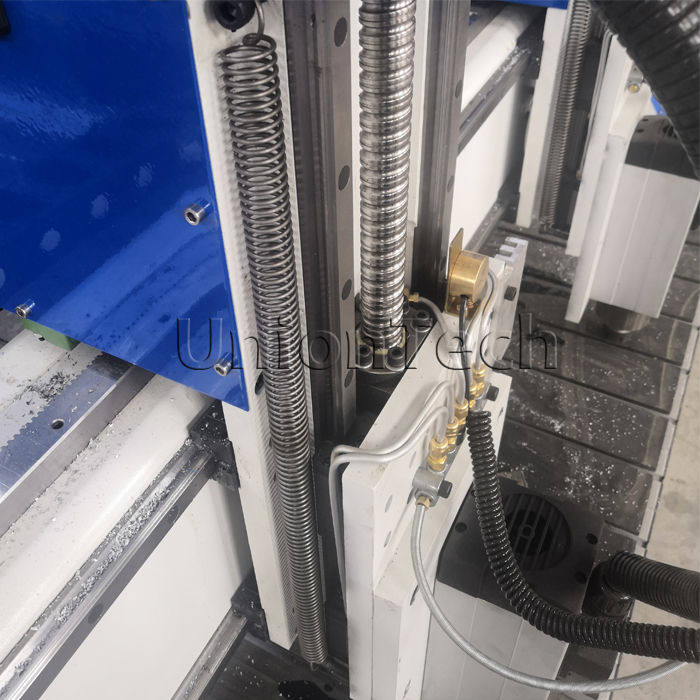

The spring for Z axis

20180507094247530.jpg@!w400

20180503135035308.jpg@!w400

20180503114107838.jpg@!w400

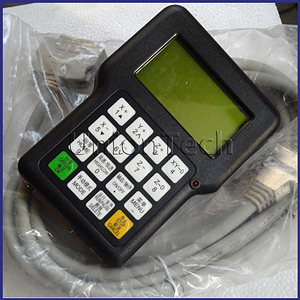

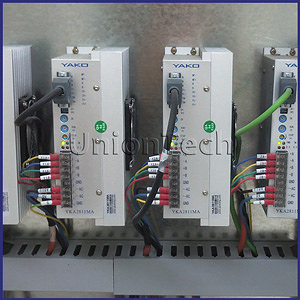

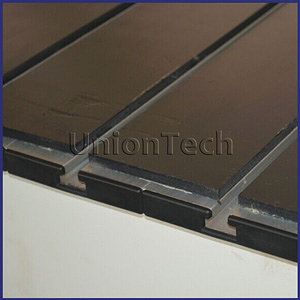

DSP A11 controllerT-slot working tableYAKO2811 driver


Engraving, milling and cutting processing for wood, mdf, acrylic, PVC, density boards, artificial stones, organic glass, plastics and metal sheets such as copper and aluminum etc.


1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.


2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.


3. Arts Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieving effects of exquisite patterns and characters.
