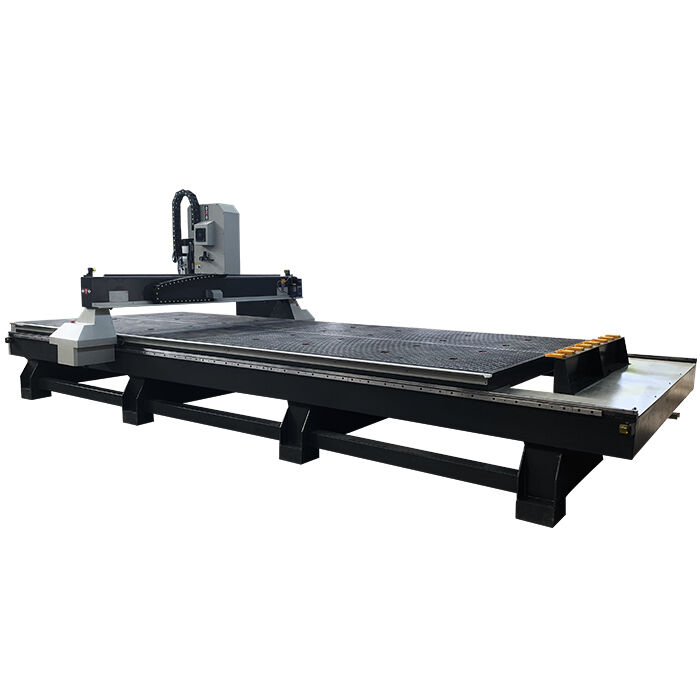

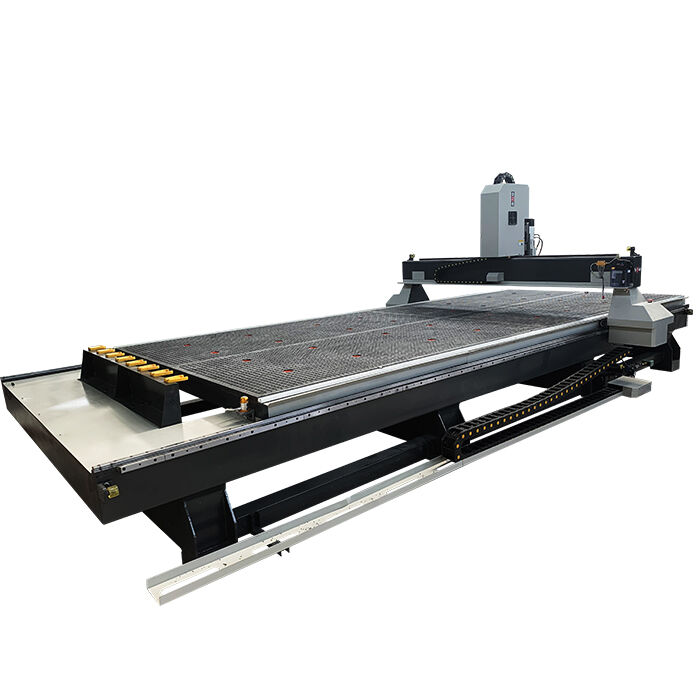

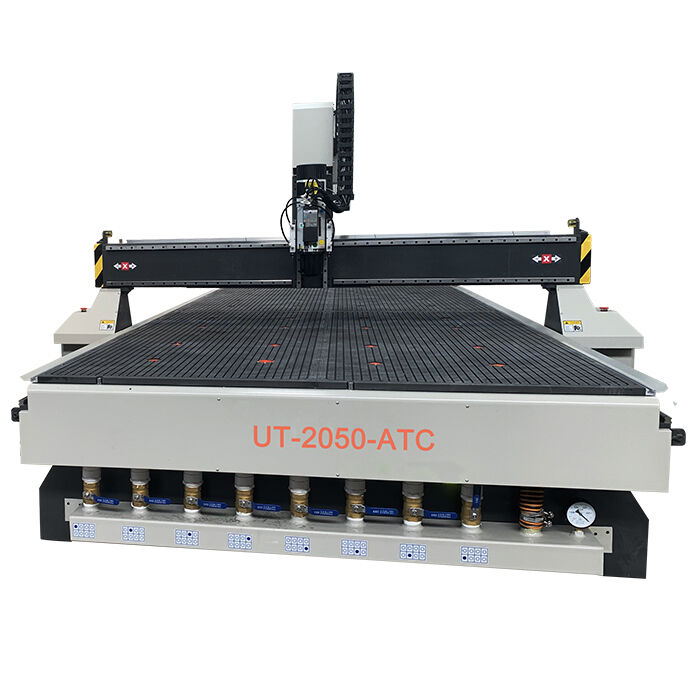

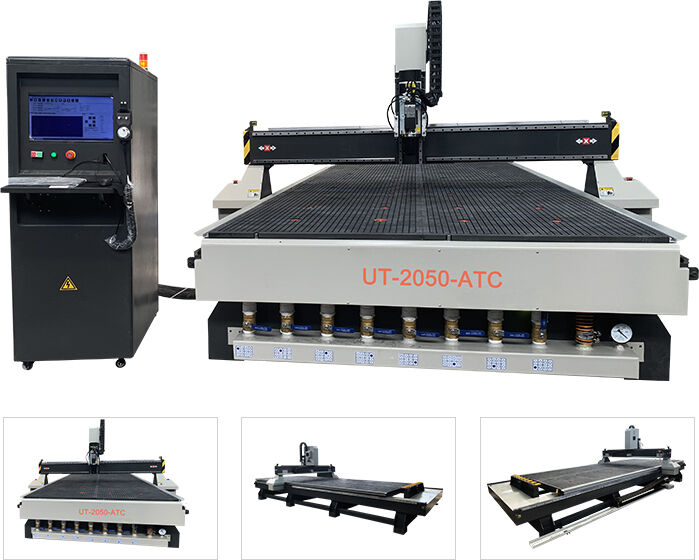

UT-2050 Wood ATC CNC Router

Easy Operation Automatic Tools Changer ATC CNC Router Woodworking Machinery For Wood MDF PVC ACP CNC Router
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications

Technical Parameters:


Model

  UT-2050ATC

Working area

  2000*5000*200mm (can be customized)

Working Voltage

  380V, 3PHASE, 50HZ (can be customized)

Control System

  Ncstudio control system

Control box

  Computer control box

Spindle

  9KW air cooling spindle

Spindle speed

  0-24000RPM

Motor and Driver

  YASKAWA servo driver and motor

Inverter

  11kw Fuling inverter

Structure

  Heavy duty thicker and bigger welded frame and gantry

Table surface

  T-slot and Vacuum Working Table with 8 zones

Gantry structure

  Thicker steel tube, Gantry Moving

Vacuum pump

  11kw water cooling vacuum pump (380V, 3PHASE, 50HZ)

Calibration

  Auto tool sensor calibration

Transmission

  X,Y Axis: Helical rack pinion, Taiwan Hiwin/PMI/CSK 20# Rail Linear   Bearing, Z Axis: Taiwan TBI Ball Screw

Command language

  G Code

Software

  ArtCam, Ucancam,Type3

Optional

  Servo motor,

  Rotary device: 200mm diameter* 2000mm length


Easy Operation Automatic Tools Changer ATC CNC Router Woodworking Machinery For Wood MDF PVC ACP CNC Router



   Spindle:

   World best brand Italy HQD 9kw air cooling

   spindle. ISO30 tool holder.
   Good qualiy and high precision. 11kw for options.


   Motor:
   Japanese YASKAWA servo

   motor 1kw.

Easy Operation Automatic Tools Changer ATC CNC Router Woodworking Machinery For Wood MDF PVC ACP CNC Router
Easy Operation Automatic Tools Changer ATC CNC Router Woodworking Machinery For Wood MDF PVC ACP CNC Router

   Auto tool changer:
   Linear type auto tool changer with 8 tools.

10/12/16 tools for option.

Controller :



Taiwan professional LNC brand control system.

Easy for a new operator.

Easy Operation Automatic Tools Changer ATC CNC Router Woodworking Machinery For Wood MDF PVC ACP CNC Router











1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash,

composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.
