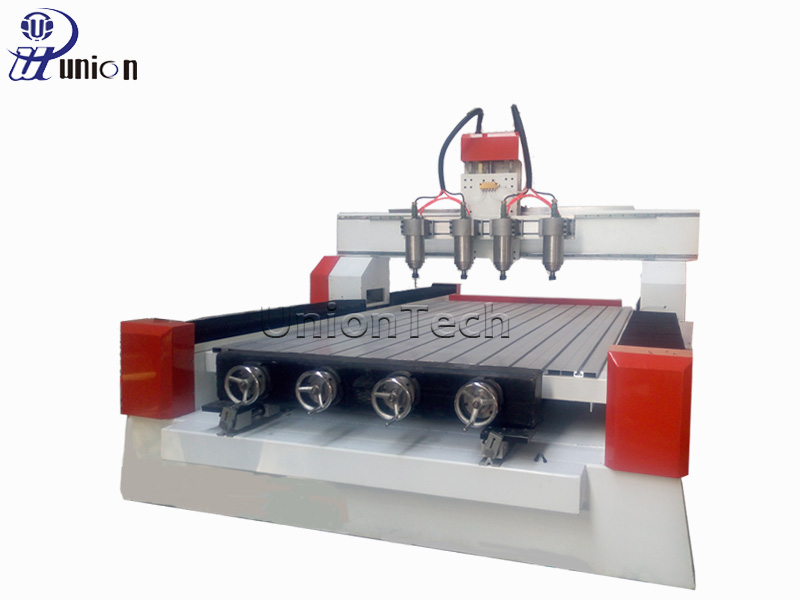

woodworking multi head 4 axis rotary cnc router

Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter
Parts
Applications

Parameters:

Model

UT1325-4H

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Weihong 3axis control system

Spindle

4pcs* 3kw water cooling spindles

Spindle speed

0-24000RPM

Motor and Driver

YAKO easy servo driver and servo motor

Inverter

2pcs* 7.5kw Fuling inverter

Structure

Thicker and bigger welded frame and   gantry

Table surface

T-slot Working Table, can be movable

Gantry structure

Gantry Moving

Rotary device

4 pcs, 200mm diameter and 2000mm length

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan PMI 25#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Italy HSD air cooling spindles


Machine details:

20180507114144241.jpg@!w400

20180507111031153.jpg@!w400

20180507114145200.jpg@!w400

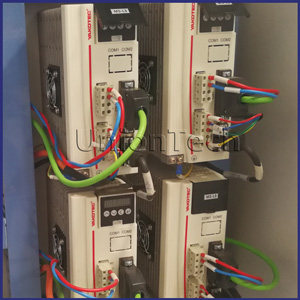

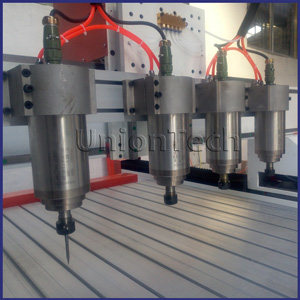

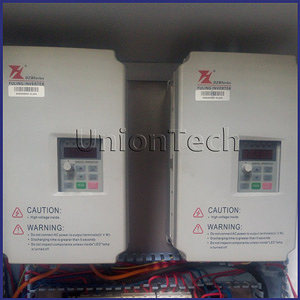

Water cooling spindles 4pcsFuling inverterYako easy servo driver

20180507114144142.jpg@!w400

20180507114145698.jpg@!w400

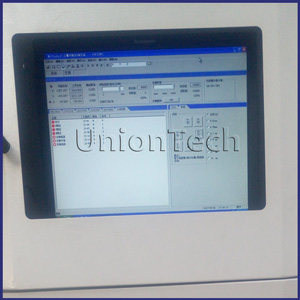

Weihong control system

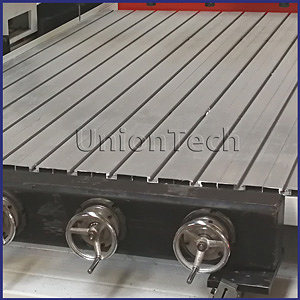

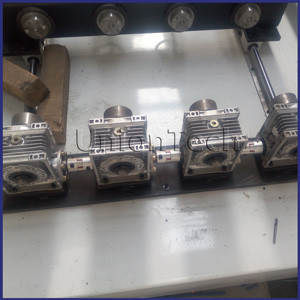

The waorking tableRotary devices


4 axis multi spindle cnc machine Applications:


  • Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood

    door, cabinet door sculpture, wood sofa legs, table legs.


  • Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.


  • Instrument industry: 3d curved surface, shape cutting.
