Parameters:


Model

UT1530atc

Working area

1500*3000*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

SIEMENS 808D control system

Control box

Imported Rittal control box

Spindle

Chinese 9KW HSD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

SIEMENS 1kw servo driver and motor

Inverter

11kw DELTA inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 6   zones

Gantry structure

Gantry Moving

Electric parts

French Schneider brand

Vacuum pump

7.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Lubrication

Auto

Transmission

X,Y Axis: Helical rack, Taiwan PMI 25#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Germany Becker pump


Machine details:

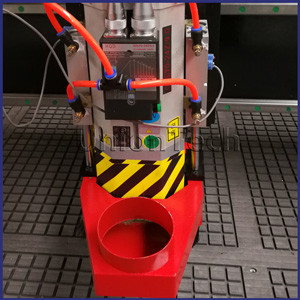

20180507091835510.jpg@!w400

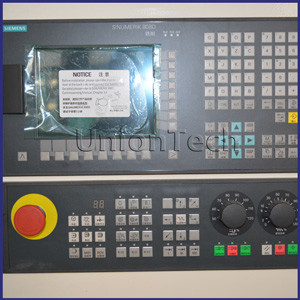

20180507091835928.jpg@!w400

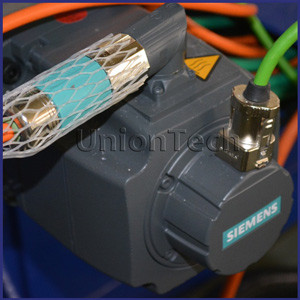

20180507091835933.jpg@!w400

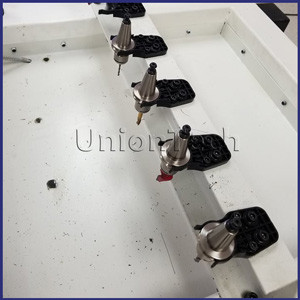

20180507143818539.jpg@!w400

20180507144034570.jpg@!w400

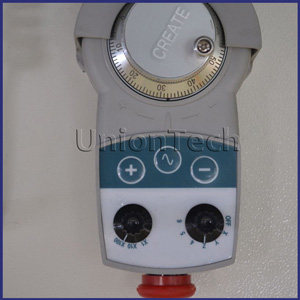

20180507144227509.jpg@!w400

Linear tool storage7.5kw air vacuum pumpMPG for SIEMENS


Applications:


1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture


2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.


3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process


4..Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo's processing.
