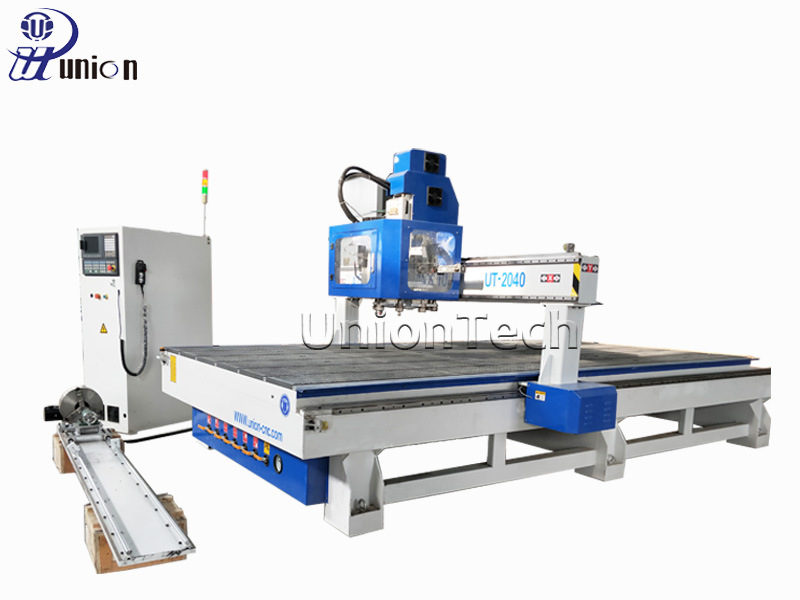

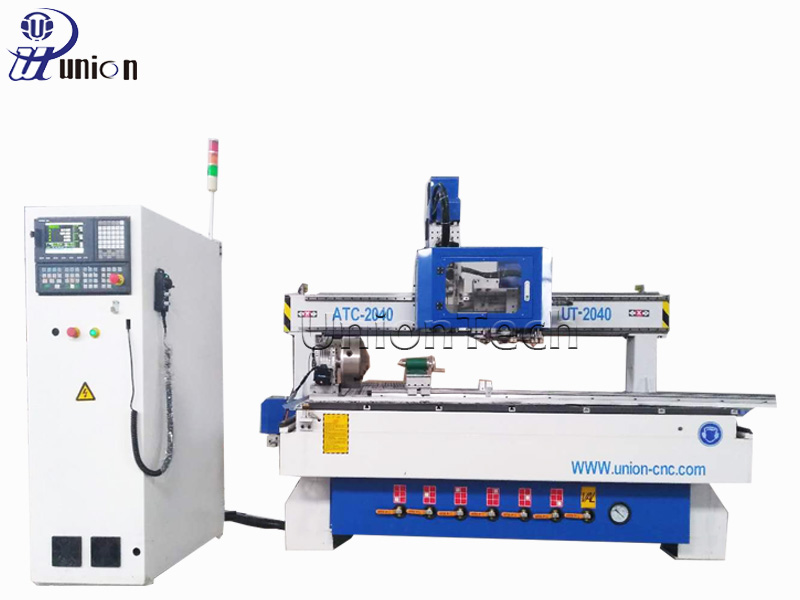

2040 atc cnc router

Tel：+86 15562667312

Email：bill@union-cnc.com

WhatsApp：+86 15562667312

Parameter

Parts

Applications

Parameters

Model	UT2040 atc cnc router
Working area	20004000400mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)
Control System	Syntec 6MB control system
Control box	Imported Rittal control box
Spindle	9KW HSD air cooling spindle
Spindle speed	0-18000RPM
Motor and Driver	Japanese YASKAWA servo driver and motor
Inverter	11kw DELTA inverter
Structure	Heavy duty thicker and bigger welded frame and gantry
Table surface	T-slot and Vacuum Working Table with 6 zones
Gantry structure	Gantry Moving
Vacuum pump	7.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ)
Calibration	Auto tool sensor calibration
Transmission	X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing Z Axis: Taiwan TBI Ball Screw
Command language	G Code
Software	ArtCam, JdPaint,Type3
Optional	Rotary device: 200mm diameter* 2000mm length

Mechanical part of the machine ___ 1 set
Spindle Motor 9 KW ____________ 1 piece
CNC electronic control box _______1 piece
Control System ________________1 piece

Vacuum pump (for the vacuum table)_1 piece

Dust collector (3kw double packages)_ 1 piece

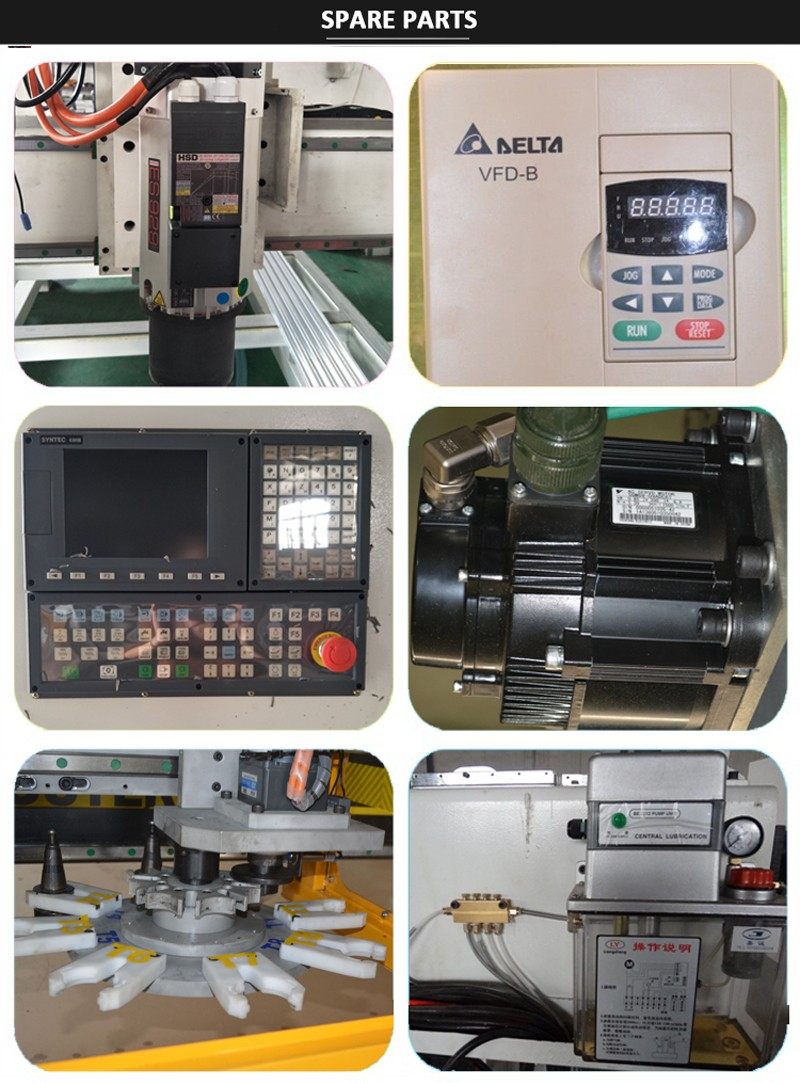

Machine details of atc cnc machine:

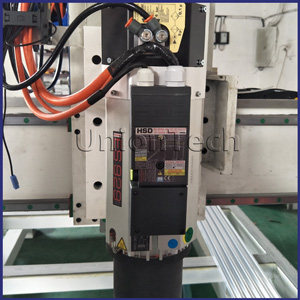

9kw Italy HSD air cooling spindle

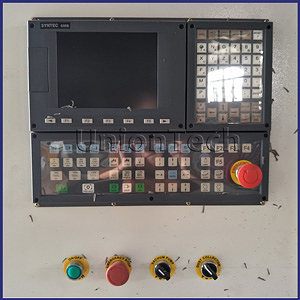

Taiwan Syntec control system

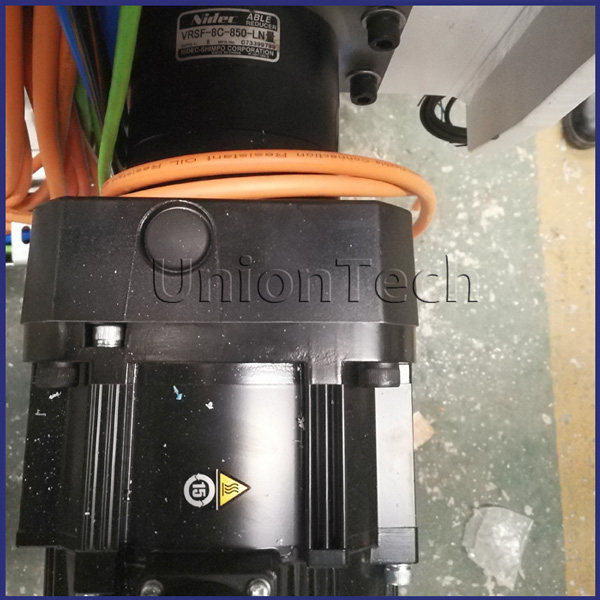

YASKAWA servo motor and Shimpo
reducer

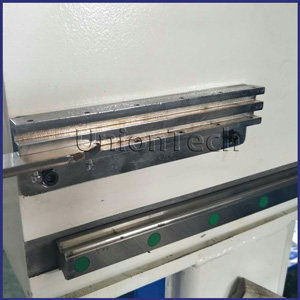

Limit switch and PMI rails

Rotary device

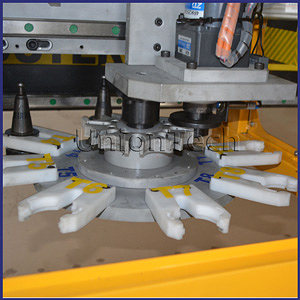

Carousel tool storage with 10 tools

Tool Box Parts:

Tool box ——————————- 1 piece

Adjusting screw ——————— 6 pieces

Clamp ———————————- 8 pieces

Collets (ISO30) ———————- 8 pieces

Tool, bit, cutter, mill —————- 21 pieces

Spanner ——————————– 4 pieces

Software CD ————————— 1 piece

Fuse core (20A) ——————— 2 pieces

Tool holder —————————- 4 pieces

Fork wrench (ER32) —————— 1 piece

Open spanner (41-46) ————— 1 piece

Box key ——————————– 1 piece

Instructions ————————— 1 piece

Applications of 3d atc cnc：

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Artwork and Decoration

wood crafts; gift box; jewelry box

3. Others

Relief sculpture and 3D engraving and Cylindrical object.
