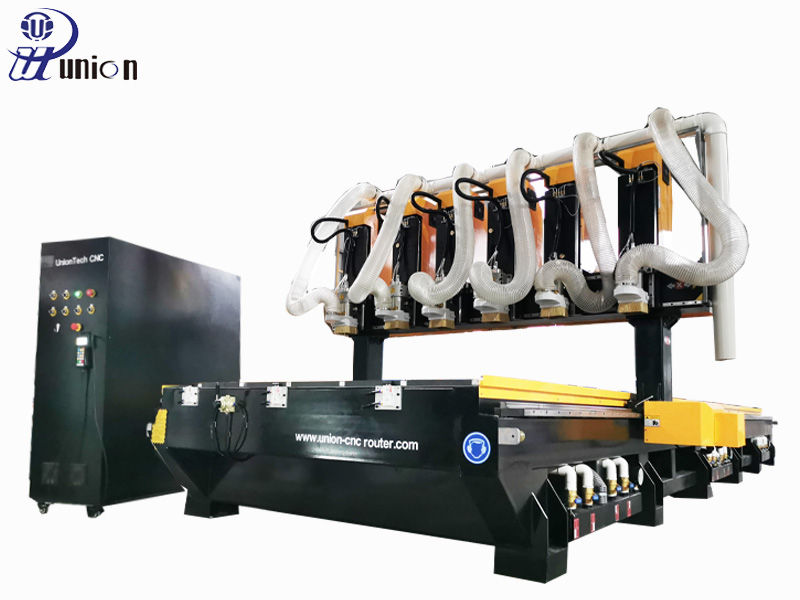

multi heads cnc router milling and engraving for mass production

Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications

Parameters:

Model

UT1977-6H cnc router

Working area

1900*7700*400mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP A11 control system

Control box

Imported Rittal control box

Spindle

3.2kw water cooling spindles, separated 6 heads

Spindle speed

0-24000RPM

Motor and Driver

Leadshine servo driver and motor

Inverter

Fuling inverter

Structure

Heavy duty thicker and bigger welded frame and gantry

Table surface

T-slot and Vacuum Working Table with 3 zones

Gantry structure

Gantry Moving

Vacuum pump

7.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Lubrication system

Auto

Dust collector

3kw double packages

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/TBI 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Becker vacuum pump


Machine details:

20190701152113680.jpg@!w400

20190701152119509.jpg@!w400

20190612085032582.jpg@!w400

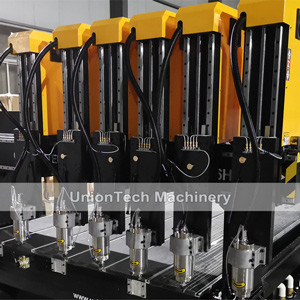

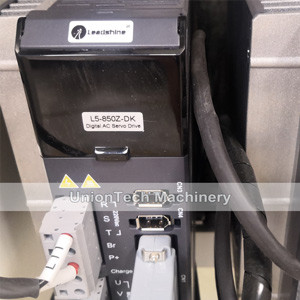

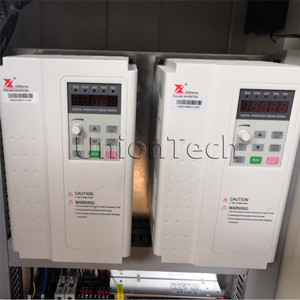

Water cooling spindlesLeadshine 850w servo driverFuling inverter

20190701152119266.jpg@!w400

20180507094247530.jpg@!w400

20180507144034570.jpg@!w400

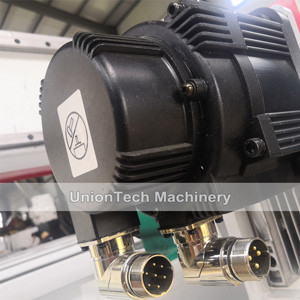

Leadshine 850w servo motorDSP A11 controllerVacuum pump


Applictions:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



4. relief sculpture, 3D engraving & Cylinder object engraving.
