Parameters:

Model

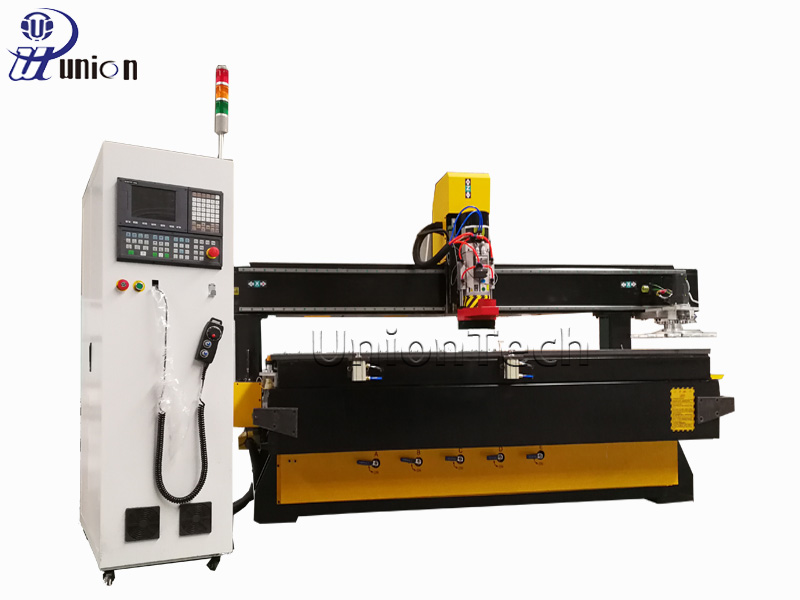

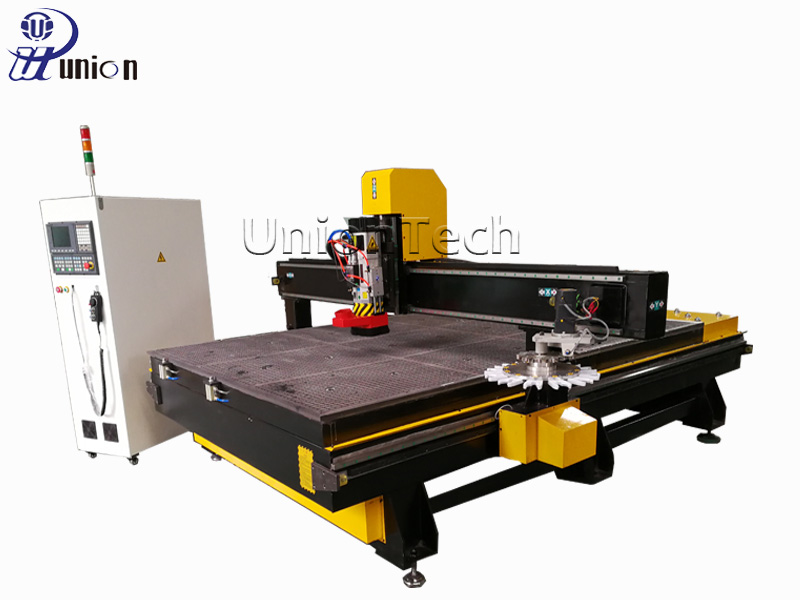

UT2030 door making atc cnc router machine

Working area

2000*3000*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

SIEMENS 808D control system

Control box

Imported Rittal control box

Spindle

Chinese 9KW HQD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

SIEMENS 1kw servo driver and motor

Inverter

11kw Fuling inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 6   zones

Gantry structure

Gantry Moving

Electric parts

French Schneider brand

Vacuum pump

7.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan PMI 25#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length


Machine details:

9kw Chinese HQD air cooling spindleGermany SIEMENS 808D control systemSIEMENS 1kw servo motor

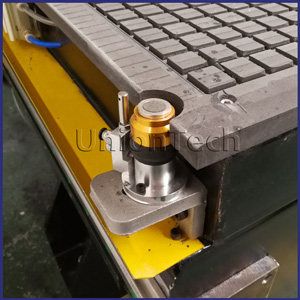

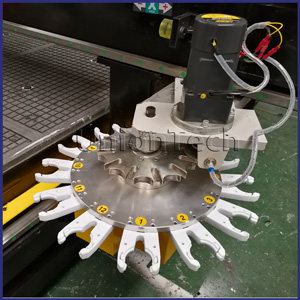

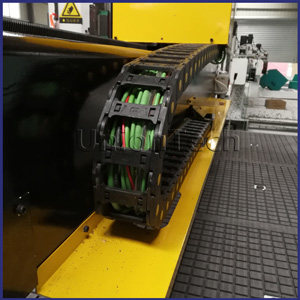

Auto tool sensorBigger and wider tow lineCarousel tool storage with 12 tools


Cyliners for positionPMI25 guide rails


Applications:


  1. Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments, etc;


  2. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc;


  3. Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc;


  4. Decoration::acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, et.
