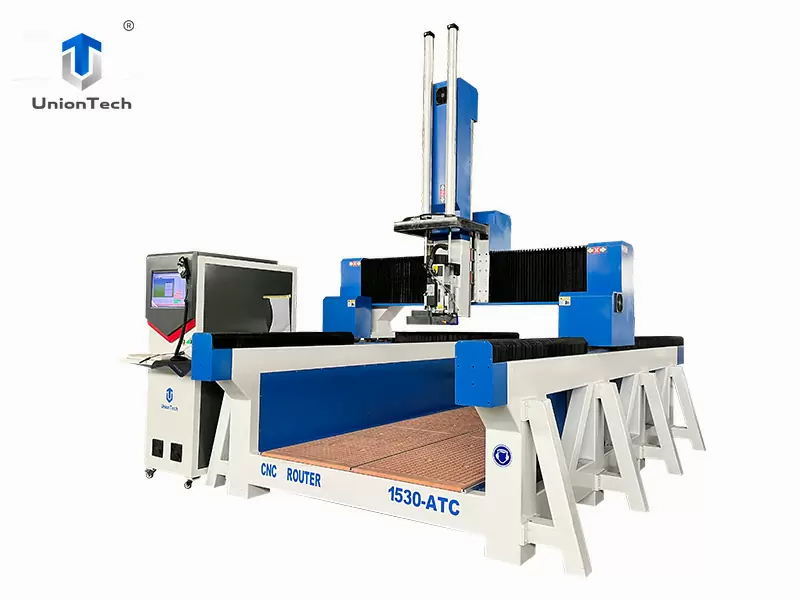

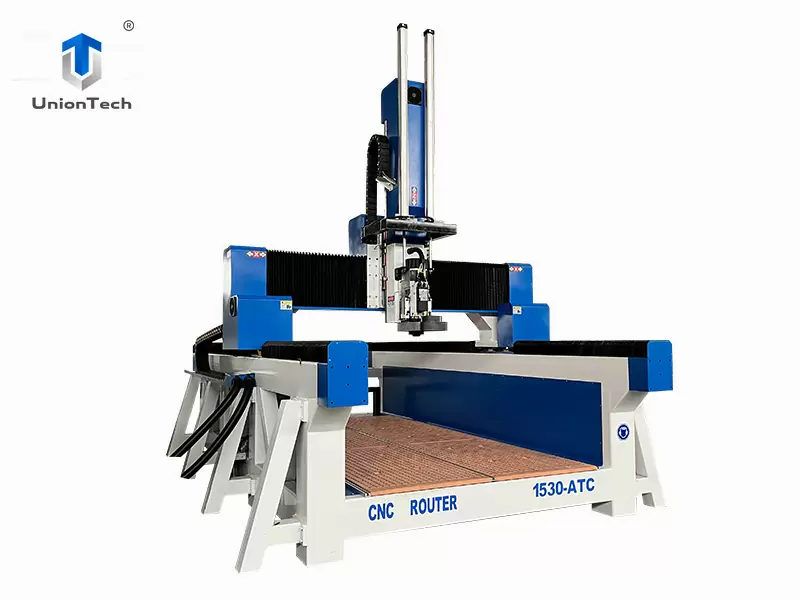

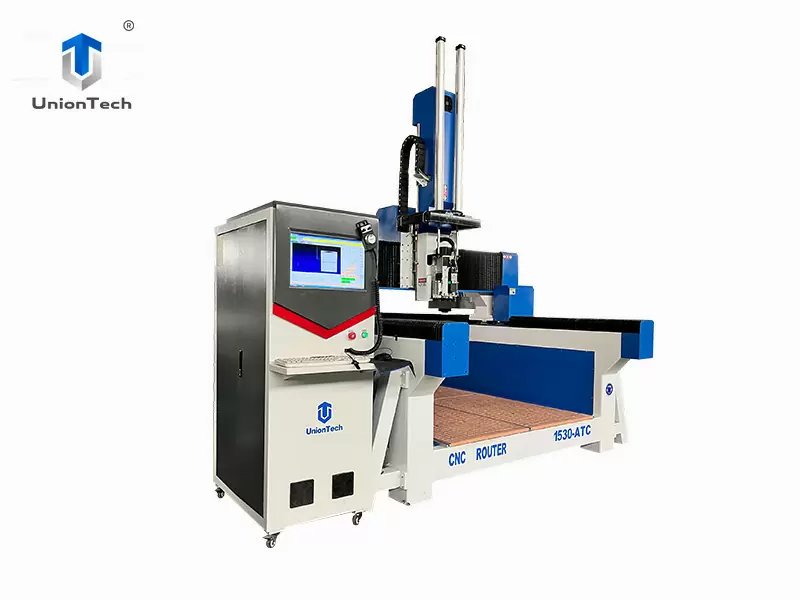

Sculpture Model CNC Wood Foam EPS 5 Axis CNC Router Machine For Sale

Brand : UnionTech
Model : UT-1530 EPS CNC Router
Category : EPS / Foam CNC Router
Price Range : $12000 to $23000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 50 Sets per Month
Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter

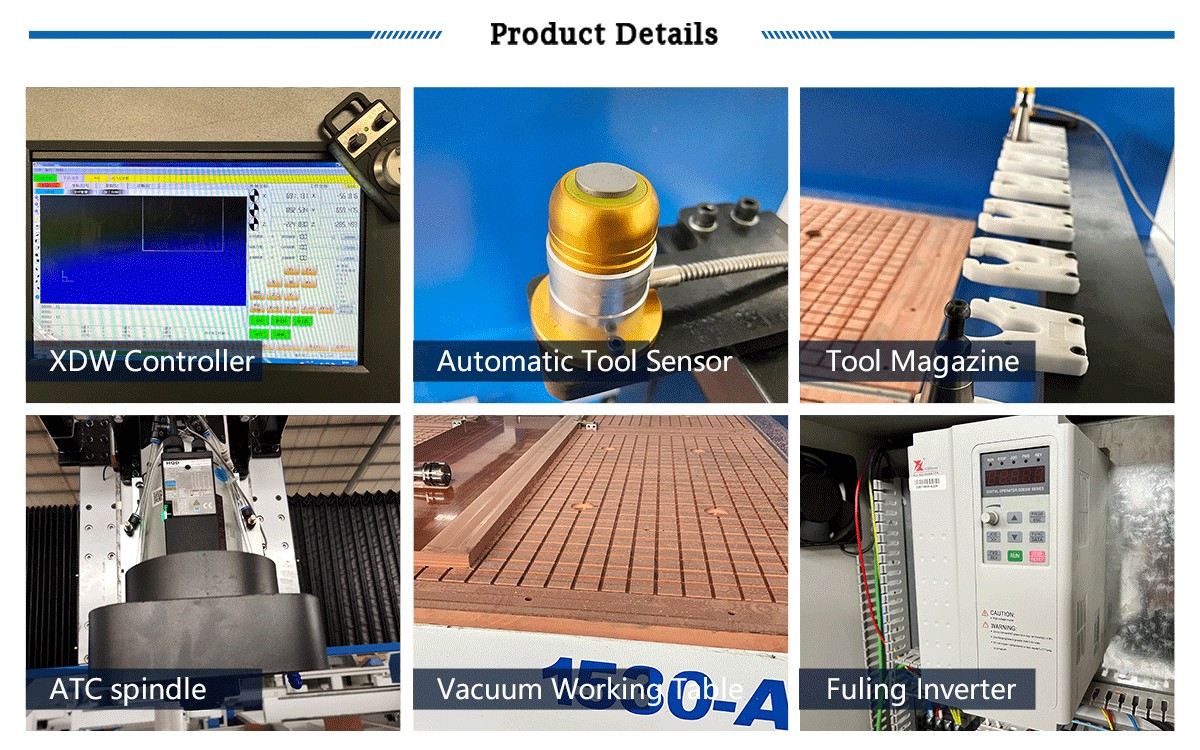

Parts
Applications



* Effective working area :1500x3000x1000mm
* 9kw air cooling spindle, ISO30,
* Leadshine servo driver 1.5KW
* XDW control system, working with computer, Ethernet.
* Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z axis,
* Double Taiwan HIWIN #30 Linear guide for Y axis one side,total 4pcs #30 linear guide for Y axis.
* X, Z axis Taiwan HIWIN #30 linear guide .
* Taiwan TBI ball screw with high precision
* Dust hood for XY axis,dust collect hood and pipe for dust collector,
* Optional Rotary device:diameter 300mm, length 2000mm
* New type dust collection with two bags.




DescriptionParameters
X,Y,Z Working Area1500*3000*1000mm
Table SurfaceVacuum working table
FrameWelded Structure
X, Y StructureOriginal 30# HIWIN linear guide, helical rack
Z StructureHiwin Linear guide rails and TBI Ball Screw
Max. Power Consumption(Without Spindle)2.5kw~3kw
Spindle Power9kw air cooling spindle
Tool holderISO30 with ER32 collet
Drive MotorsLeadshine 1.5kw servo motor
Working VoltageAC380V/50-60Hz,3PH (Option: 220V/1phase)
Command LanguageG Code
Operating SystemXWD control system, support different languages, Russian, Spanish, English, Portuguese
ReducerJapanese Shimpo
Computer InterfaceUSB
X,Y,Z repositioning Accuracy±0.02mm
X,Y Resolution±0.01mm
Software CompatibilityType3/UcancameV9 Software, (Option: Artcam Software)
Lubrication systemAuto
Tool sensorAuto
Dust collector3kw double packages dust collector
Optional partsItaly HITECO water cooling spindle
Rotary device




PRODUCT DESCRIPTION



* Effective working area :1500x3000x1000mm
* 9kw air cooling spindle, ISO30,
* Leadshine servo driver 1.5KW
* XDW control system, working with computer, Ethernet.
* Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z axis,
* Double Taiwan HIWIN #30 Linear guide for Y axis one side,total 4pcs #30 linear guide for Y axis.
* X, Z axis Taiwan HIWIN #30 linear guide .
* Taiwan TBI ball screw with high precision
* Dust hood for XY axis,dust collect hood and pipe for dust collector,
* Optional Rotary device:diameter 300mm, length 2000mm
* New type dust collection with two bags.




DescriptionParameters
X,Y,Z Working Area1500*3000*1000mm
Table SurfaceVacuum working table
FrameWelded Structure
X, Y StructureOriginal 30# HIWIN linear guide, helical rack
Z StructureHiwin Linear guide rails and TBI Ball Screw
Max. Power Consumption(Without Spindle)2.5kw~3kw
Spindle Power9kw air cooling spindle
Tool holderISO30 with ER32 collet
Drive MotorsLeadshine 1.5kw servo motor
Working VoltageAC380V/50-60Hz,3PH (Option: 220V/1phase)
Command LanguageG Code
Operating SystemXWD control system, support different languages, Russian, Spanish, English, Portuguese
ReducerJapanese Shimpo
Computer InterfaceUSB
X,Y,Z repositioning Accuracy±0.02mm
X,Y Resolution±0.01mm
Software CompatibilityType3/UcancameV9 Software, (Option: Artcam Software)
Lubrication systemAuto
Tool sensorAuto
Dust collector3kw double packages dust collector
Optional partsItaly HITECO water cooling spindle
Rotary device
