Parameters:

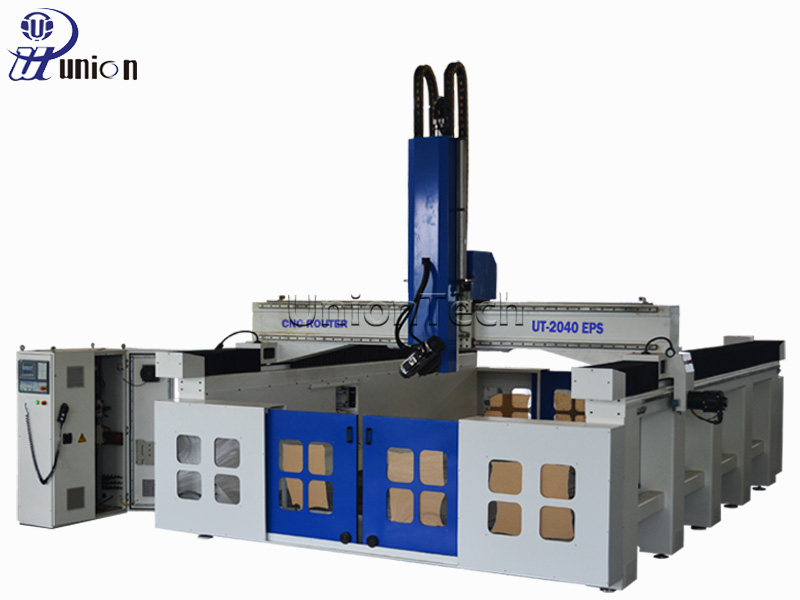

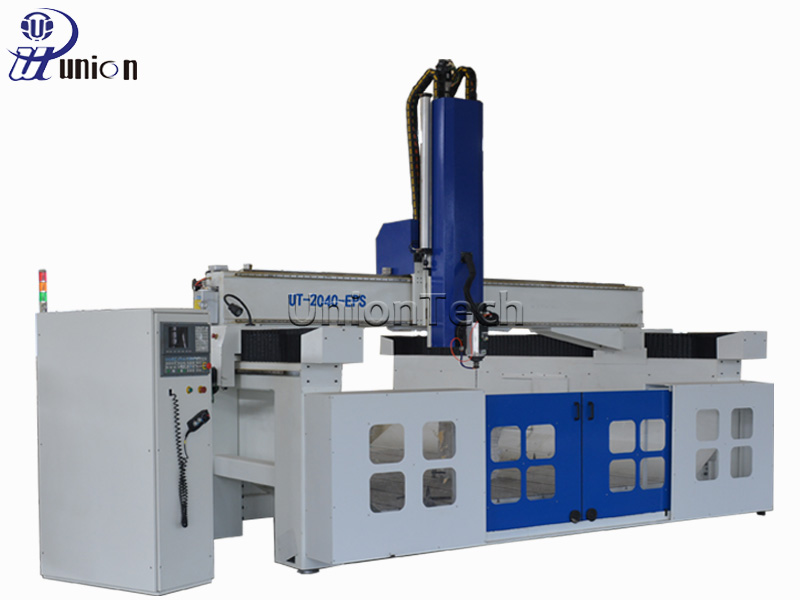

Model

UT-2040F

Working area

2000*4000*900mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Syntec control system

Spindle

Italy HSD 9kw air cooling spindle

4 axis

The spindle can rotate 180 degree with   servo motor

Spindle speed

0-18000RPM

Motor and Driver

YASKAWA servo driver and motor

Inverter

11kw Fuling inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

Aluminum working table with T-slot

Gantry structure

Gantry Moving

Machine structure

Separated structure, with stable gantry   support

Calibration

Auto tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA   30# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw, HIWIN 30   rails with fixed slider

Command language

G Code

Rotary device

300mm diameter* 2000mm length


Machine details:


20180507170821624.jpg@!w400

20180505094319747.jpg@!w400

20180507171017474.jpg@!w400

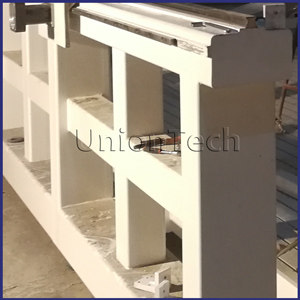

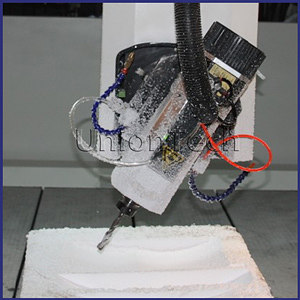

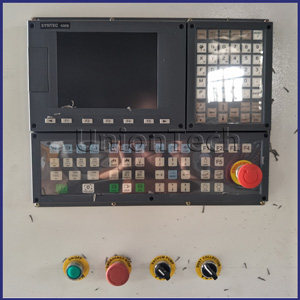

9kw Italy HSD ATC spindleSyntec control systemMachine structure

20180507170826413.jpg@!w400

20180507171150862.jpg@!w400

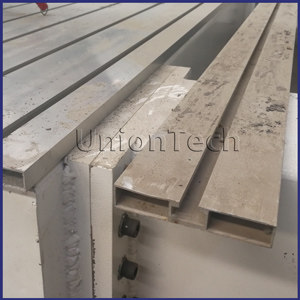

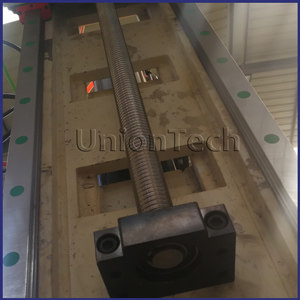

Working tableServo motor with reducerZ axis transmission


Applications:


Suitable for EPS(expanded polystyrene) and styrofoam products making, such as theater props, arts&crafts, accessories mold, architectural shapes, interior crown molding, concrete forms&block-outs, dock&marine EPS floatation etc.


Wooden ship model, wooden model aviation, trains and other wooden mold.


Musical instrument industry:

Three dimension musical instrument,contour cutting.


Suitable Material:

Wood, EPS and non-metallic carbon hybrid materials.
