Parameters:

Model

UT-1325H

Working area

1300*2500*500mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP A11 control system

Control box

Independent control box

Spindle

3kw water cooling spindle

Spindle speed

0-24000RPM

Motor and Driver

Leadshine easy servo driver and motor

Inverter

3.7kw Fuling inverter

Structure

Thicker and bigger welded frame and   gantry

Table surface

T-slot Working Table

Gantry structure

Gantry Moving

Vacuum pump

7.5kw water cooling vacuum pump (380V,  3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin 20#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Rotary device

300mm diameter* 1000mm length


Machine details:

20180507094247530.jpg@!w400

20180507093820912.jpg@!w400

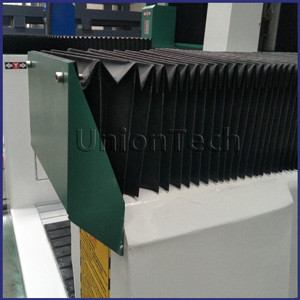

20180507153855553.jpg@!w400

DSP A11 controllerWater cooling spindleDust hood for Y axis

20180507151255361.jpg@!w400

20180503135035308.jpg@!w400

20180502163056393.jpg@!w400

Leadshine driverT-slot working tableDust collector



Applications:


Suitable for EPS(expanded polystyrene) and styrofoam products making, such as theater props, arts&crafts, accessories mold, architectural shapes, interior crown molding, concrete forms&block-outs, dock&marine EPS floatation etc.


Musical instrument industry:

Three dimension musical instrument,contour cutting.


Suitable Material:

Wood, EPS and non-metallic carbon hybrid materials.
