Parameters:


Model

UT-1325EPS-4A

Working area

1300*2500*700mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Syntec 6MB control system

Spindle

Italy HSD 6kw air cooling spindle

Spindle speed

0-18000RPM

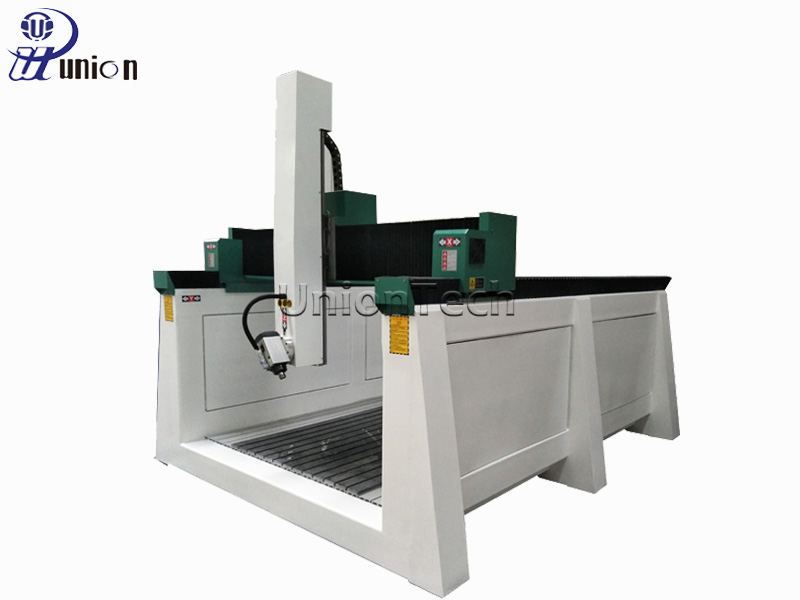

4 axis
The spindle can rotate 180 degree, ±90
ColletER32

Motor and Driver

YASKAWA servo driver and motor

ReducerJapanese Shimpo brand

Inverter

7.5kw Fuling inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot Working Table

Gantry structure

Gantry Moving

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Rotary device

200mm diameter* 2000mm length

Optional

9kw HSD spindle


Machine details:

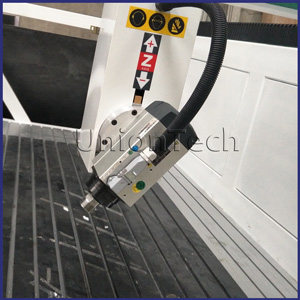

Italy 6kw HSD air cooling spindleTaiwan Syntec 4axis control systemDust hood for Y axis

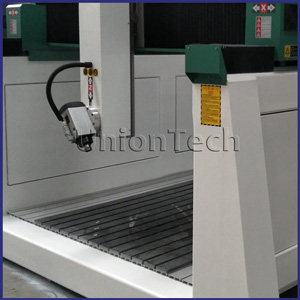

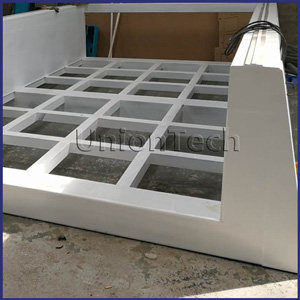

Machine structureYASKAWA servo motor and Shimpo reducerHigh Z axis and 4axis spindle


Applications:


1.Wood industry: Stereo Wave Plate Processing, cabinet doors, solid wood doors, Craft wood door, paint free door, folding screen, craft window, shoe-cleaning machine, game cabinet, mahjong table, computer table, and panel-type furniture’s assistance processing.


2.Advertisement industry: Advertisement label and logo, Acrylic cutting and blister molding, Multi Ad. Material and decoration products processing


3. Mold industry: Engrave on material like brass, Al, and Iron to make metal mold. And it can engrave on artificial Marble, gravel, plastic board, PVC pipes, wood, and alike Non-metal mold


4.EVA processing industry: EVA packing materials lined engraving and cutting for tool equipment,medical equipment, electronic products,glass vessel.


5.Other industry:Engrave all kinds of image engraving and relief engraving. It is widely used art & craft industrindustries: The building model, the block, aviation block, propellers, car foam mold.
