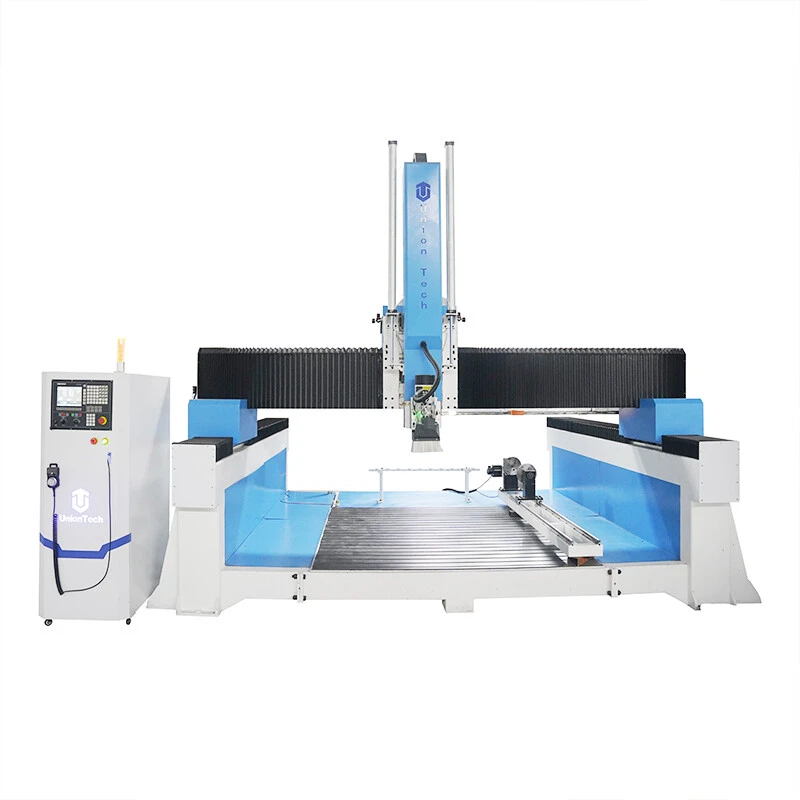

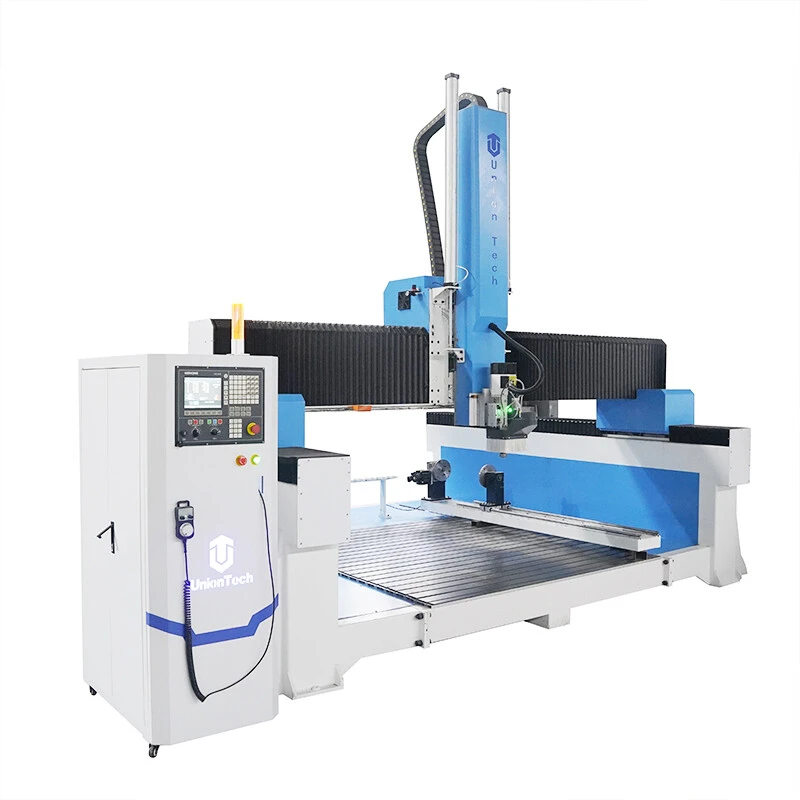

2020 EPS ATC cnc router with 4 axis

Brand : UnionTech
Model : UT-2020z1000-4axis
Category : 4 axis CNC Router Machine
Price Range : $10000 to $20000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 50 Sets per Month
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications




The Polyfoam engraving machine is a high-efficiency, multifunctional engraving device designed to meet industrial-grade engraving requirements. Its outstanding performance and intelligent control system make it an ideal choice for the engraving industry. Below are its main features:

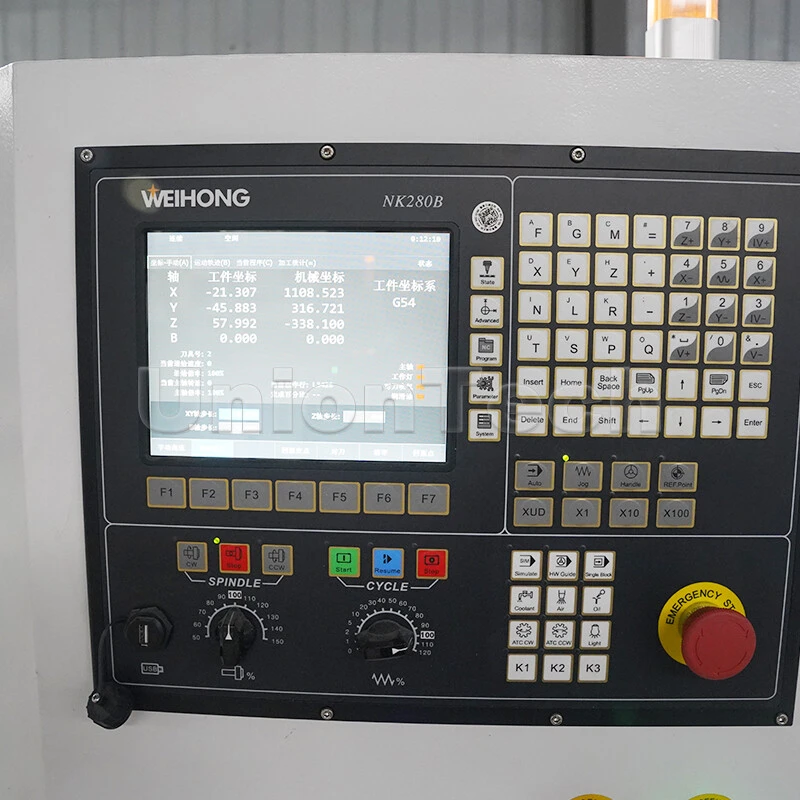

1. Weihong 280B Controller

Equipped with the advanced Weihong 280B controller, the machine offers a user-friendly interface with powerful functions, supporting multi-axis linkage and complex path control. This system effectively enhances engraving precision and work efficiency, making it ideal for high-demand engraving tasks.


2. Large Working Area

With a working area of 2000*2000*1000mm, this machine is suitable for processing large-sized materials such as polyfoam, wood, plastic, and more. The expansive platform provides ample space for complex and multi-level engraving tasks.

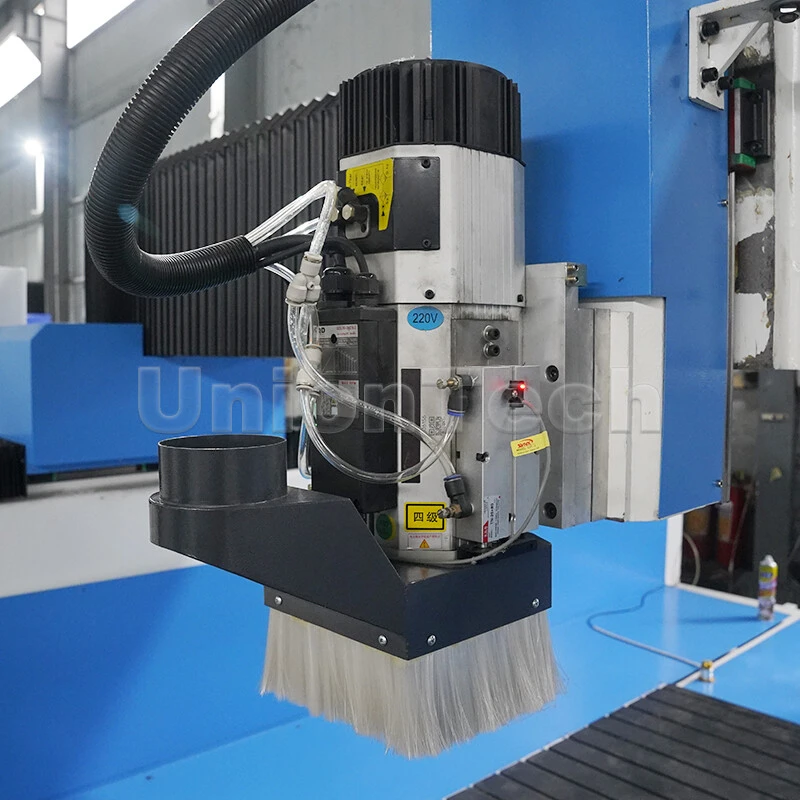

3. Powerful 9kW ATC Spindle

The machine is equipped with a 9kW Automatic Tool Changer (ATC) spindle, offering strong power support. The spindle operates stably and delivers fine engraving quality, making it suitable for long hours of high-intensity industrial processing. The automatic tool-changing feature significantly improves processing efficiency and reduces manual intervention.

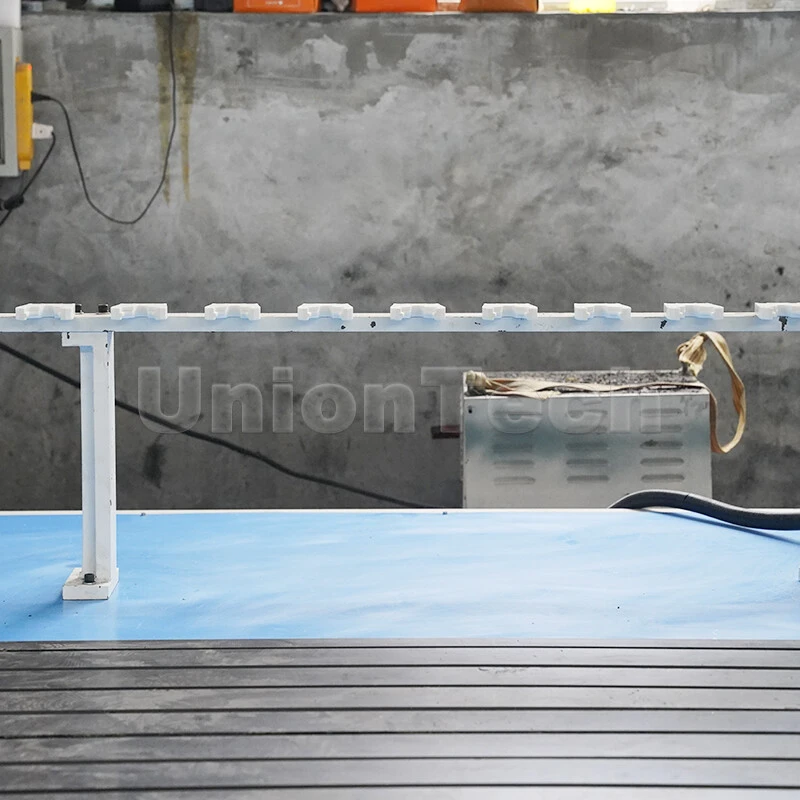

4. 10-Position Tool Magazine

The machine features a 10-position tool magazine system, allowing for automatic tool switching. Users can easily configure the necessary tools for different engraving tasks, greatly enhancing production flexibility and efficiency.

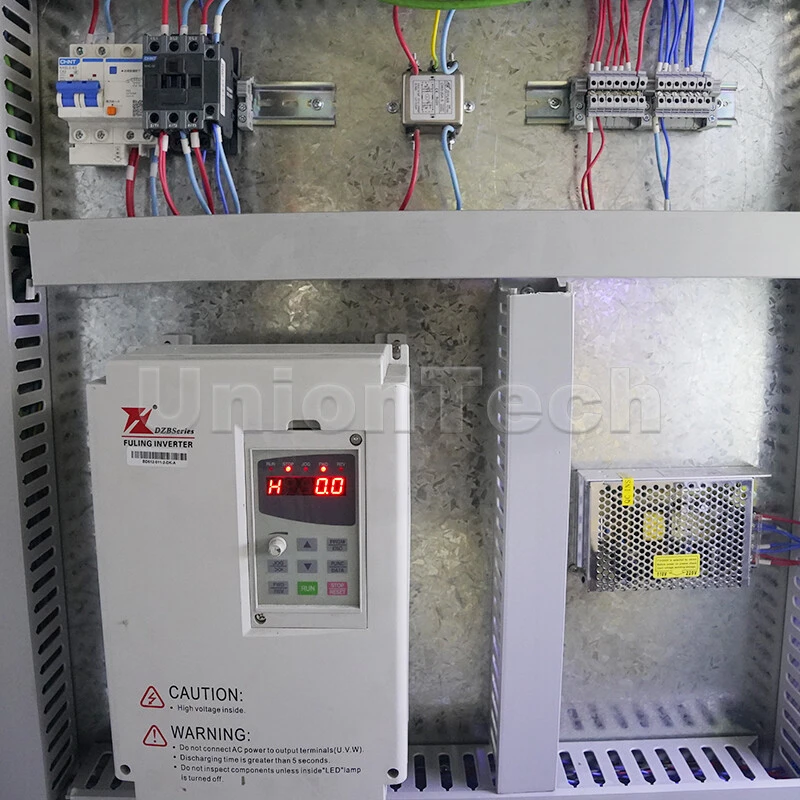

5. Fuling Inverter

The high-performance Fuling inverter ensures stable operation of the spindle and precise speed control. Whether performing fast roughing or fine engraving, the machine can handle the tasks effortlessly.

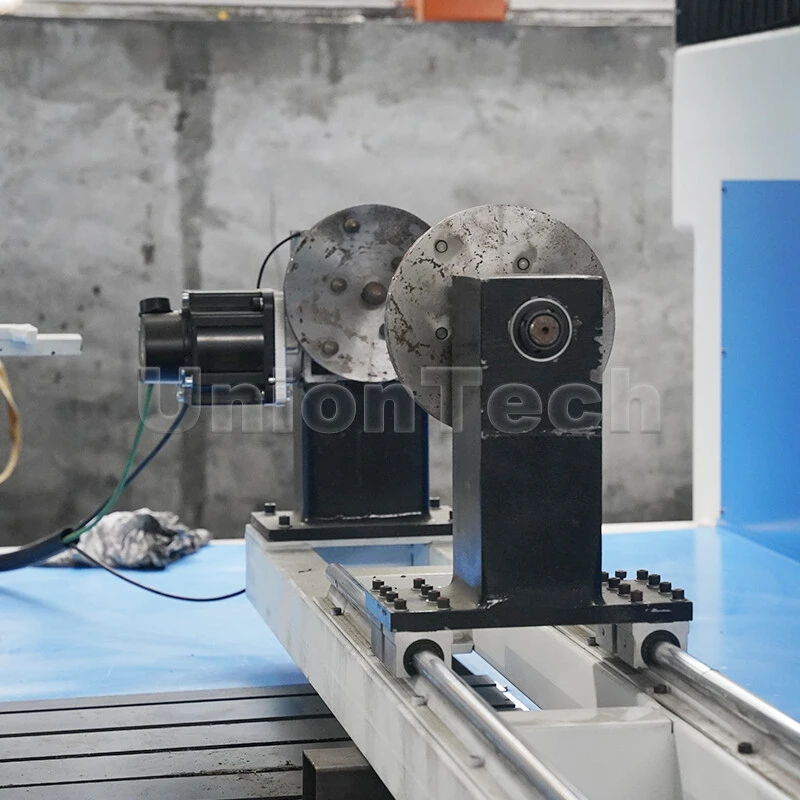

 6. Four-Axis Linkage Support

The machine supports four-axis linkage, making it ideal for engraving tasks at multiple angles and on complex 3D shapes. It provides greater flexibility for processing, meeting the specific needs of a variety of industries.


 7. Stable and Durable Structure Design

The machine’s frame is made from high-strength materials, ensuring stability and durability. This robust construction guarantees high precision and reliability over long-term use.


 8. Wide Range of Applications

The Polyfoam engraving machine is suitable for a variety of industries, including advertising, mold making, architectural decoration, and art creation. It can efficiently process intricate designs and structures.


This engraving machine, with its precise control, efficient operation, and versatile capabilities, offers unmatched productivity and high-quality processing results. It is a reliable tool for modern industrial manufacturing.


DescriptionParameters
X/Y/Z axis working area2000x2000x1000mm effective working area
Packing size3000*2500*2560mm
Control systemWeihong 280b controller
Spindle9kw ATC spindle
Spindle speed6,000– 24,000 RPM
InverterFuling inverter
Drive motorsWeihong Servo Motor
Working voltageAC380V/50-60Hz,1-phase
TransmissionTBI Ball screw /Taiwan
GuideLinear ¢35square/Taiwan
Processing precision0.02mm
Table surface PVC protection
Command codeG code



PRODUCT DESCRIPTION




The Polyfoam engraving machine is a high-efficiency, multifunctional engraving device designed to meet industrial-grade engraving requirements. Its outstanding performance and intelligent control system make it an ideal choice for the engraving industry. Below are its main features:


1. Weihong 280B Controller

Equipped with the advanced Weihong 280B controller, the machine offers a user-friendly interface with powerful functions, supporting multi-axis linkage and complex path control. This system effectively enhances engraving precision and work efficiency, making it ideal for high-demand engraving tasks.


2. Large Working Area

With a working area of 2000*2000*1000mm, this machine is suitable for processing large-sized materials such as polyfoam, wood, plastic, and more. The expansive platform provides ample space for complex and multi-level engraving tasks.


3. Powerful 9kW ATC Spindle

The machine is equipped with a 9kW Automatic Tool Changer (ATC) spindle, offering strong power support. The spindle operates stably and delivers fine engraving quality, making it suitable for long hours of high-intensity industrial processing. The automatic tool-changing feature significantly improves processing efficiency and reduces manual intervention.


4. 10-Position Tool Magazine

The machine features a 10-position tool magazine system, allowing for automatic tool switching. Users can easily configure the necessary tools for different engraving tasks, greatly enhancing production flexibility and efficiency.


5. Fuling Inverter

The high-performance Fuling inverter ensures stable operation of the spindle and precise speed control. Whether performing fast roughing or fine engraving, the machine can handle the tasks effortlessly.


 6. Four-Axis Linkage Support

The machine supports four-axis linkage, making it ideal for engraving tasks at multiple angles and on complex 3D shapes. It provides greater flexibility for processing, meeting the specific needs of a variety of industries.


 7. Stable and Durable Structure Design

The machine’s frame is made from high-strength materials, ensuring stability and durability. This robust construction guarantees high precision and reliability over long-term use.


 8. Wide Range of Applications

The Polyfoam engraving machine is suitable for a variety of industries, including advertising, mold making, architectural decoration, and art creation. It can efficiently process intricate designs and structures.


This engraving machine, with its precise control, efficient operation, and versatile capabilities, offers unmatched productivity and high-quality processing results. It is a reliable tool for modern industrial manufacturing.


DescriptionParameters
X/Y/Z axis working area2000x2000x1000mm effective working area
Packing size3000*2500*2560mm
Control systemWeihong 280b controller
Spindle9kw ATC spindle
Spindle speed6,000– 24,000 RPM
InverterFuling inverter
Drive motorsWeihong Servo Motor
Working voltageAC380V/50-60Hz,1-phase
TransmissionTBI Ball screw /Taiwan
GuideLinear ¢35square/Taiwan
Processing precision0.02mm
Table surface PVC protection
Command codeG code
