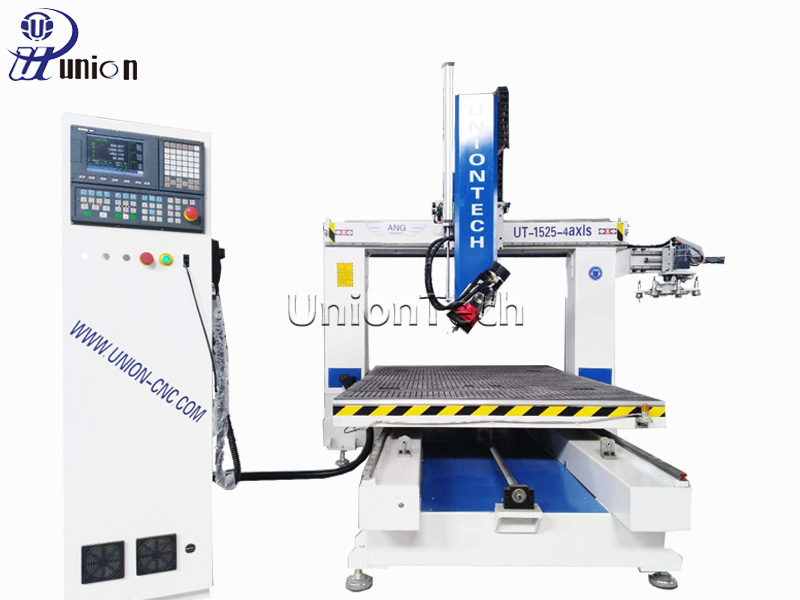

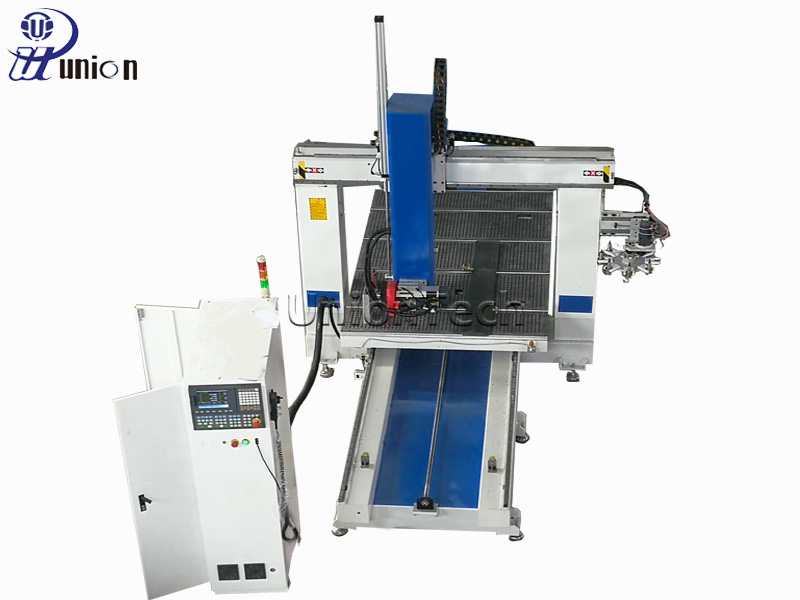

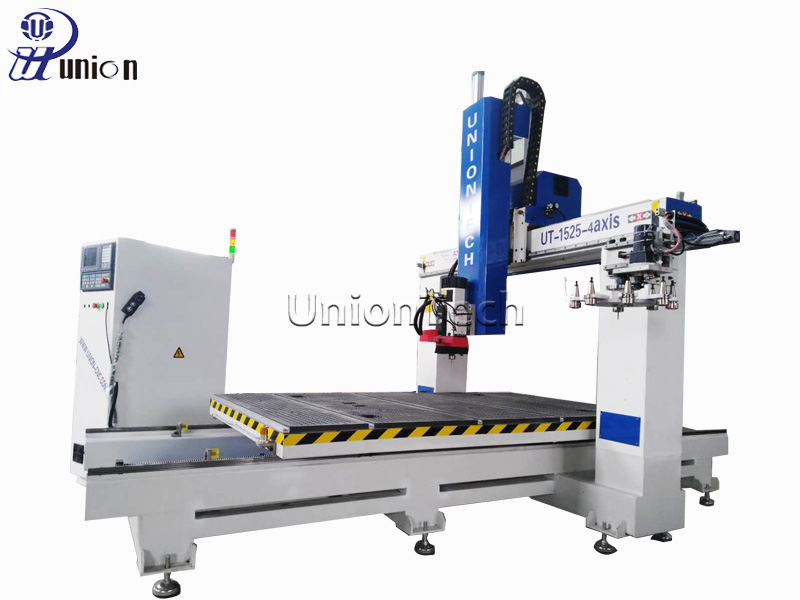

Parameters:


Model

UT-1525ATC-4A

Working area

1500*2500*800mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Syntec 6MB control system

Spindle

Italy HSD 9kw air cooling spindle

4 axis

The spindle can rotate 180 degree with   servo motor

Spindle speed

0-18000RPM

Tool storage

Carousel type with 10 tools

Motor and Driver

YASKAWA servo driver and motor

Reducer

Japanese Shimpo brand

Inverter

11kw DELTA inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry,

Table moving

Table surface

Vacuum working table with T-slot

Gantry structure

Gantry Moving

Machine structure

Table moving and fixed stable gantry

Calibration

Auto tool sensor calibration

Transmission

X Axis: Helical rack, Taiwan PMI 25# Rail   Linear Bearing,

Y Axis: Taiwan TBI Ball Screw, HIWIN 25   guide rails,

Z Axis: Taiwan TBI Ball Screw, HIWIN 25   rails with fixed slider

Command language

G Code

Optional

Rotary device , 300mm diameter* 2000mm   length


Machine details:


20180508144625659.jpg@!w400

20180508144625628.jpg@!w400

20180508144625378.jpg@!w400

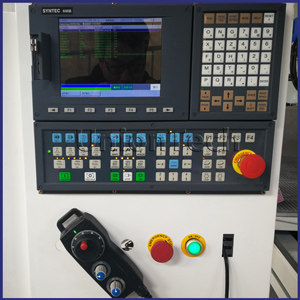

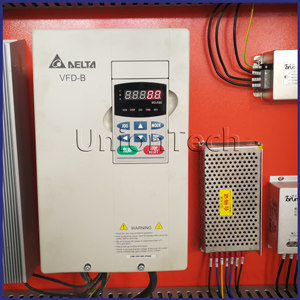

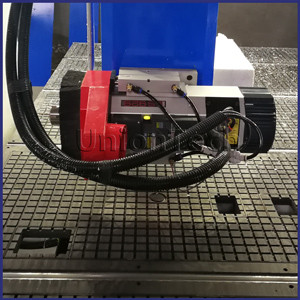

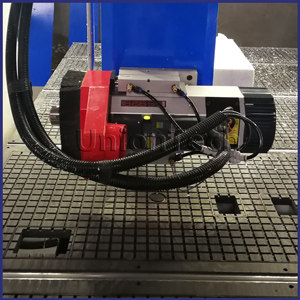

9kw HSD air cooling spindle11kw DELTA inverterSyntec control system 4axis

20180508144627701.jpg@!w400

20180508144626103.jpg@!w400

20180508144627829.jpg@!w400

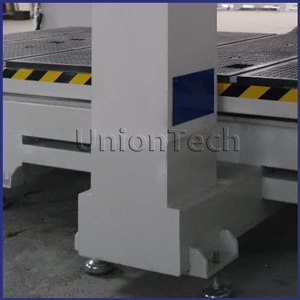

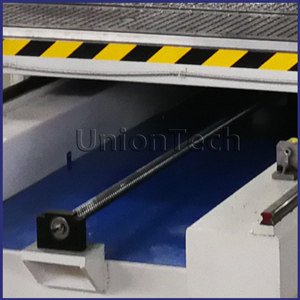

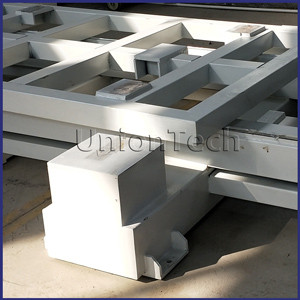

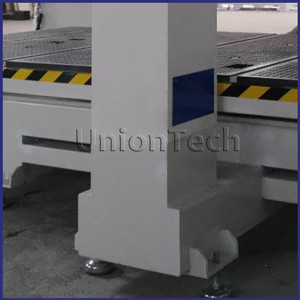

TBL ball screw for Y axisFixed stable gantry supportMachine structure, table moving


Applications:


UnionTech 4axis router is commonly used for mould making, machining moulds in wood, resin tooling board, EPS and composites, trimming of vacuum formed mouldings, plastic fabrication, GRP machining, props and model making, profiling, solid surface machining and contouring, various large metalloid mould, especially suitable for automotive foam mold, wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.

Instrument industry: 3d surface engraving and shape cutting of large-scale instruments.
