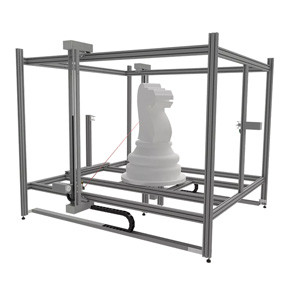

CNC Hot wire Foam Cutting Machine with iXShaper

Imported iXShaper control system
4axis/ 7axis.

Tel：+86 15562667312

Email：bill@union-cnc.com

WhatsApp：+86 15562667312

Parameter

Parts

Applications

The resistant cutting wire reaches the temperature of a few hundred Celsius degrees during EPS cutting. To ensure it is properly tensioned throughout the cut, UnionTech offers various wire tensioning systems - spring, pneumatic or electric - depending on the machine size and application.

WORKING WIDTH = CUTTING WIRE LENGTH	60-300 cm
WORKING LENGTH	130-300 cm
WORKING HEIGHT	128 cm
MAX. TRANSIT SPEED	3000 mm/min 5000 mm/min in Ind. Axis Units
CUTTING WIRE	0.15-0.55 , NiCr or TitaniumWire, spring or electric-tensioned
X & Y DRIVES	stepper motors + cog belts
SOFTWARE RESOLUTION	0.005 mm
OPTIONAL ACCESSORIES	TurnTable Lathe ShapeWire Bar DoubleWire Independent Axis Control Pneumatic Wire Tensioning TitaniumWire Handheld/Remote Controller
NOT AVAILABLE	5-wire MW add-on (OF only) BarCode Scanning
POWER REQUIREMENTS	230V, 50Hz, from 500W up to 1kW
PC REQUIREMENTS	Windows XP, Vista, 7, 8 or 10
Cutting wires	TITANIUM WIRE. BEST RESISTANT EVER
SOFTWARE	iXshaper with unlimited free updates
WARRANTY	complete 2-year warranty
INCLUDED IN THE PRICE	hot wire cutting machine, ARM-based electronic controller, iXshaper software with unlimited free updates, a 100-gram spool of cutting wire, remote controller/handhels, assembly and operational manuals, year-round tech support,
NOT INCLUDED IN THE PRICE	Windows PC necessary to control the machine graphics software, e.g. CorelDraw installation and training on site (if required)

IXSHAPER FOR ALL OUR HOTWIRE CUTTERS.

- extreme easy of use yet lots of powerful features
- will work on any Windows PC with USB, including Windows 10
- available in 11 different languages
- complex 3D cuts made simple

- auto object-linking, continuation, duplication, simulation, etc.

SUPPORTED DRAWING FORMATS:
HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)

Machine details:

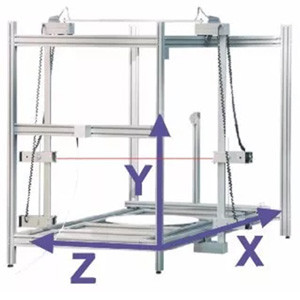

	"Z" = MACHINE WIDTH = CUTTING WIRE LENGTH This dimension determines e.g. the max. length of your 2D moulding. "X" = MACHINE LENGTH This dimension determines. e.g. the max. length of your column cut on the lathe. "Y" - MACHINE HEIGHT This dimension (always around 1220-1300 mm) determines the max. height of the EPS block that will fit on the machine.
1 OR 2 CUTTING WIRES OF UP TO 300 CM LENGTH MULTIPLE SIZES AND CONFIGURATIONS AVAILABLE OPTIONAL UNIQUE INDEPENDENT AXIS CONTROL FEATURE MULTIPLES 3D OPTIONS (TURNTABLES, LATHES, ETC.) MAX. TRANSIT SPEED OF UP TO 5 METERS/MIN. VARIOUS WIRE TENSIONING OPTIONS: SPRING, ELECTRIC, PNEUMATIC

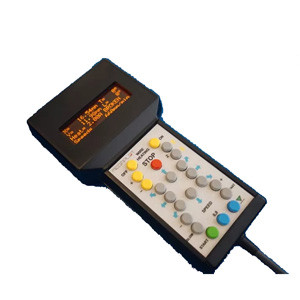

	REMOTE CONTROL/HANDHELD convenient overview of current machine parameters: wire location, wire heating status and power, wire tension (independent axis control units), limit swiches status; on-the-fly adjustment of parameters during a cut: increase/decrease wire temperature, increase/decrease cutting speed, start/stop/continue a cut; full manual control of machine movement in all axes,

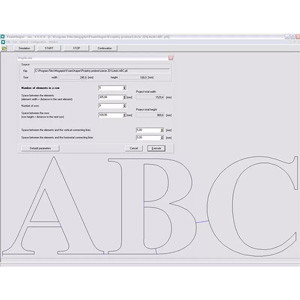

IXSHAPER FOR ALL OUR HOTWIRE CUTTERS - unlimited FREE UPDATES for all UnionTech customers; - extreme easy of use yet lots of powerful features; - will work on any Windows PC with USB, including Windows 10; - available in 11 different languages; - complex 3D cuts made simple; - auto object-linking, continuation, duplication, simulation, etc. SUPPORTED DRAWING FORMATS: HPGL.plt (e.g. CorelDraw), dxf (e.g. AutoCad), RAW 3D (e.g. Rhinoceros 3D), EPS/AI (e.g. AdobeIllustrator), dxf 3D (e.g. AutoCad)

3D FEATURES

Here are some of the additional features of our Hot Wire Foam Cutters.

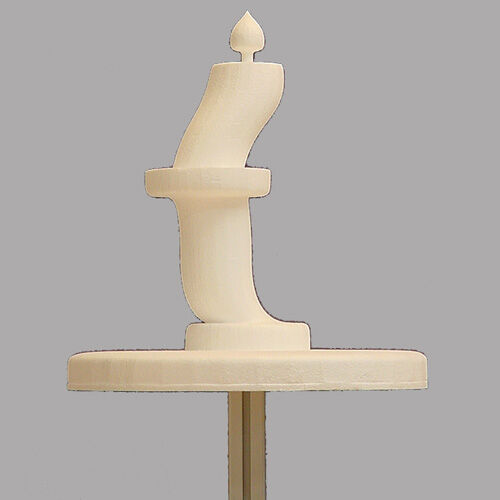

TURNTABLE 3D cuts out of 3D models or a series of 2D files can cut any symmetrical or irregular shape completely automatic mode & full manual control works with the straight cutting wire and also ShapeWire support for plt, dxf, EPS/AI, RAW 3D and dxf 3D powerful and precise movement mechanism easy to use yet offering unlimited possibilities up to 3 TurnTables on the same machine

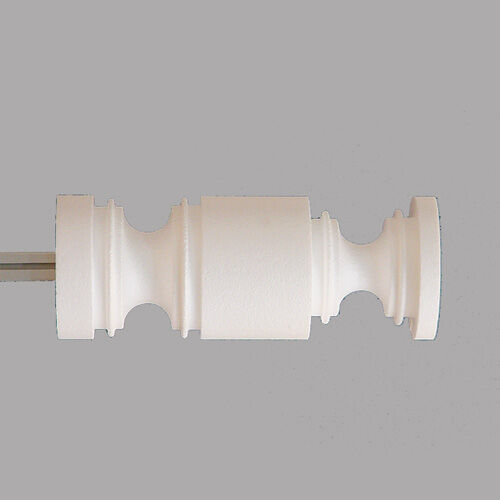

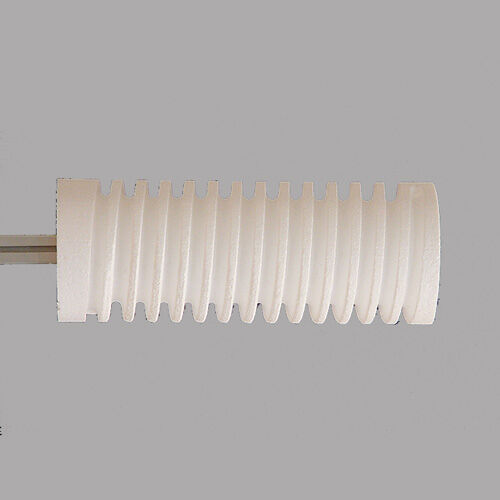

	LATHE perfect for columns and balusters easy-to-use with built-in rotary and lathe modes supports the straight cutting wire as well as ShapeWire create creative twisted shapes grooves, threads and similar 3D features powerful and precise mechanism software-controller but also full manual control up to 3 Lathes on the same machine
SHAPEWIRE BAR temporarily replaces the straight wire to produce interesting rotary shapes works with both TurnTable and Lathe perfect for grooves, threads and similar shapes 1 mm thick shapeable wire (reusable) will heat up to 50 cm long pieces of shapewire bar easy to install and remove when not needed
