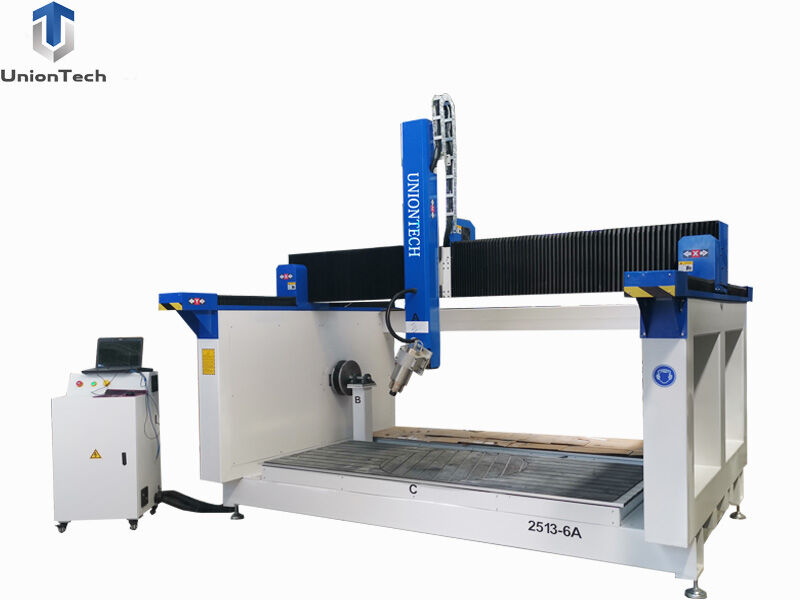

5 axis cnc router

6 axis. X Y Z A B C

Tel：+86 15562667312

Email：bill@union-cnc.com

WhatsApp：+86 15562667312

Parameter

Parts

Applications

Parameters:

Model	UT-2513-6A
Movement type	Gantry moving
Working area	25001300900MM(can be customized)

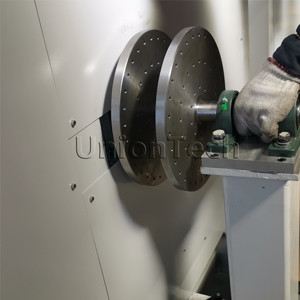

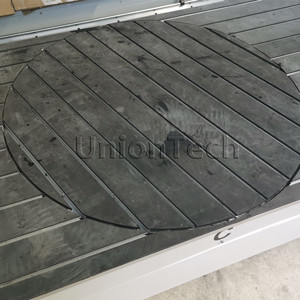

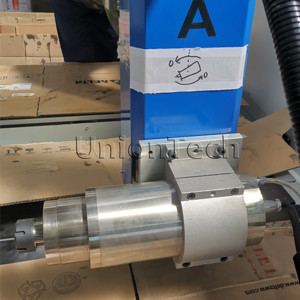

Tavelling	A Axis--swing spindle, B axis--Rotary device C axis--Rotation table
Spindle	Chinese water cooling spindle
Working voltage	AC 3P 380V 50HZ(can be customized)
Control system	Syntec control system
Material of table	Aluminum profile

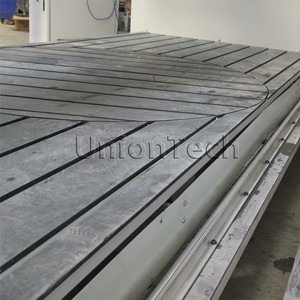

Material fixed type	T-Slot
Output power of spindle	7.5KW
Spindle speed	0-24000 R/M
Motor and driver	Syntec Servo motor and driver
Inverter	Fuling inverter
Table surface	T-slot Working Table with PVC
Cutter specifications	ER32, 20mm diameter
Maximum speed:	X Axis 40m/min Y Axis 40m/min Z Axis 20m/min C Axis 2700°/min A Axis 2700°/min
Programming Software	Powermill
Calibration	Manual tool sensor calibration
Equipment data storage and capacity	Cable transmission,USB,CF
Command language	G Code
Minimum training period for operator	1 week

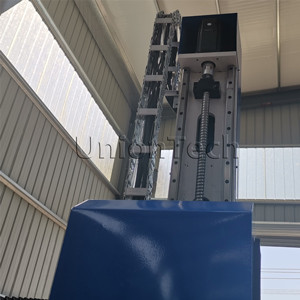

Machine details:

Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile

interior decoration, engineering plastic and other non-metal materials. Stainless steel, iron drilling and milling
