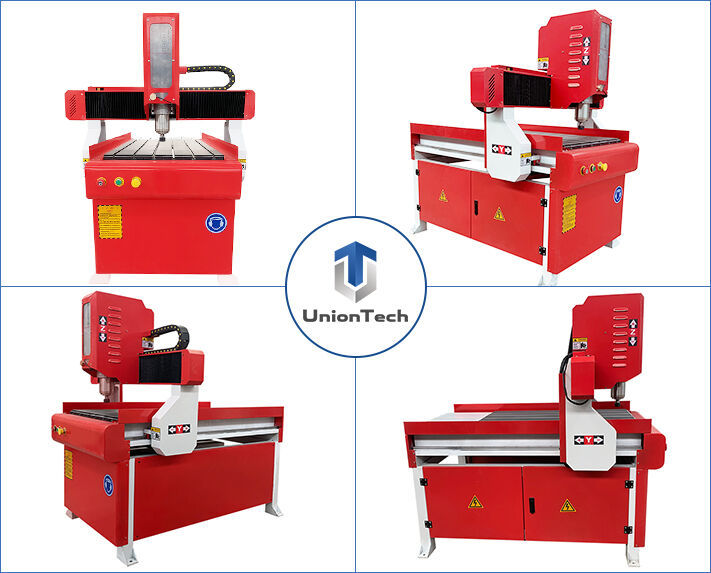

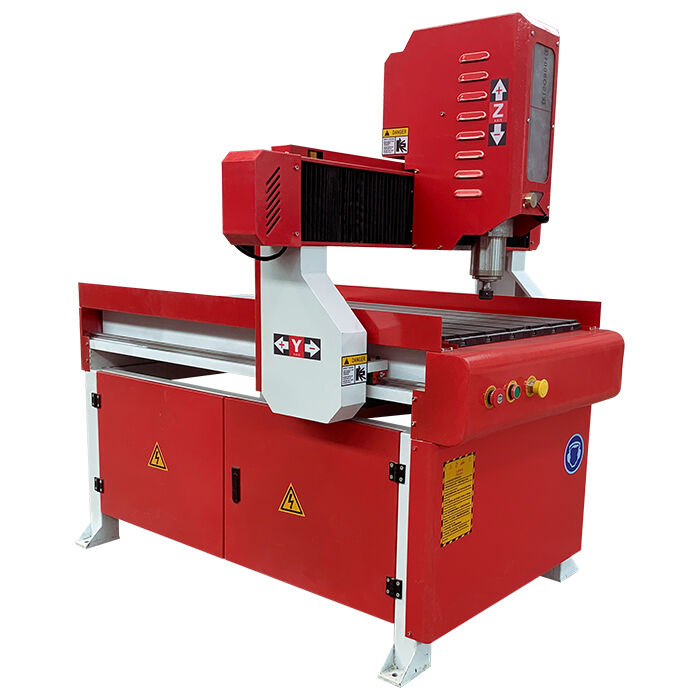

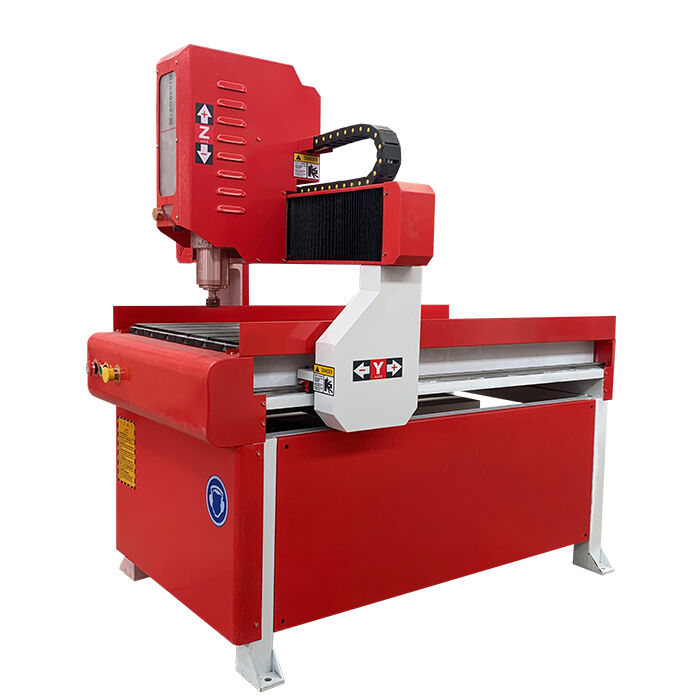

6090 MINI CNC wood router

6090 MINI CNC wood router CNC milling machine for PCB ,wood art craft , phone case
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications

Parameters:



Description

Parameters

X,Y,Z Working Area

600*600*150mm

Table Surface

T-slot Table with PVC

Frame

Cast iron Structure

X, Y, Z Structure

20# HINWIN linear guide,

Transmission

HTBI Ball Screw

Max. Power Consumption

(Without Spindle)2.5kw~3kw

Spindle Power

2.2kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Operating System

Mach3 control system

Computer Interface

USB

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Optional parts

Japanese YASKAWA servo motor,

Italy HSD air cooling spindle





Parts of mini 3d 6090 cnc router


20180503114059348.jpg@!w400



20180504114758926.jpg@!w400




20180503161327186.jpg@!w400




Leadshine stepper motor and driver



NK105 control system



Air cooling spindle





20180428152240907.jpg@!w400



20180502110404843.jpg@!w400



Hiwin square rails



TBI ball screw



Fuling inverter





1. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



2. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


photobank (3).jpg

photobank (4).jpg
