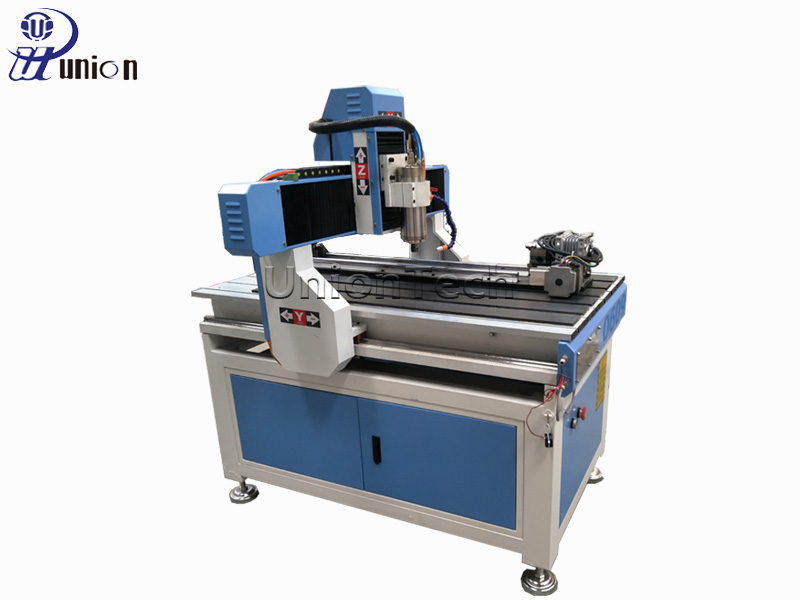

4 axis cnc router 6090

Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter
Parts
Applications

Model

UT6090R

Working area

600*900*200mm (can be customized)

Working Voltage

220V, 3PHASE, 60HZ (can be customized)

Control System

NC studio

Spindle

2.2KW HQD water cooling spindle

Spindle speed

0-24000RPM/MIN

Motor and Driver

Leadshine stepper and driver

Inverter

Fuling inverter

Rotary axis

Yes

Structure

Cast iron

Table surface

T-slot

Gantry structure

Gantry Moving

Transmission

3 Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Applications

Wood, MDF, PVC, Acrylic, Leather, Carpet,   Carton, Rubber, Corrugated box, Foam, Leather strip.

Optional

RichAuto DSP A11 controller

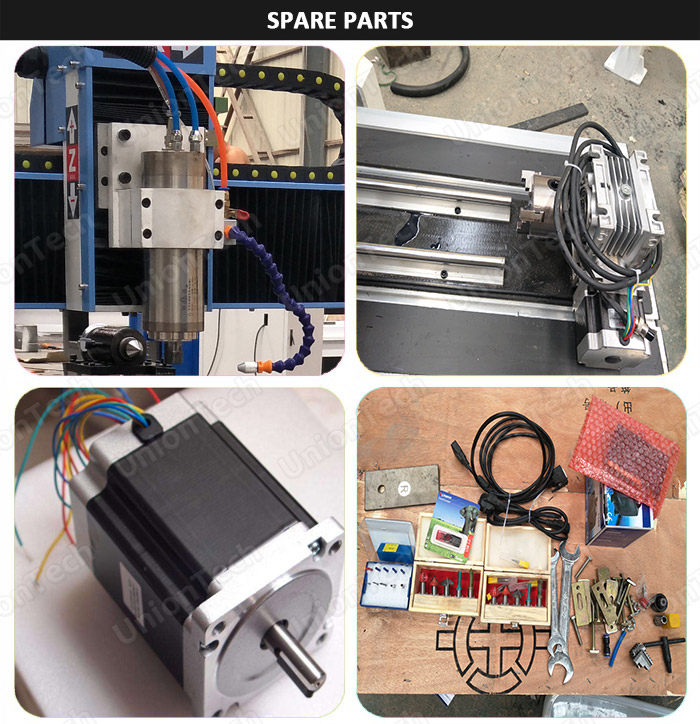

  • Mechanical part of the machine ___1 set

  • Spindle Motor 2.2 KW __________ 1 piece

  • CNC electronic control box ______ 1 piece

  • Control System _______________ 1 piece

  • Dust collector  (2.2kw double packages)__ 1 piece

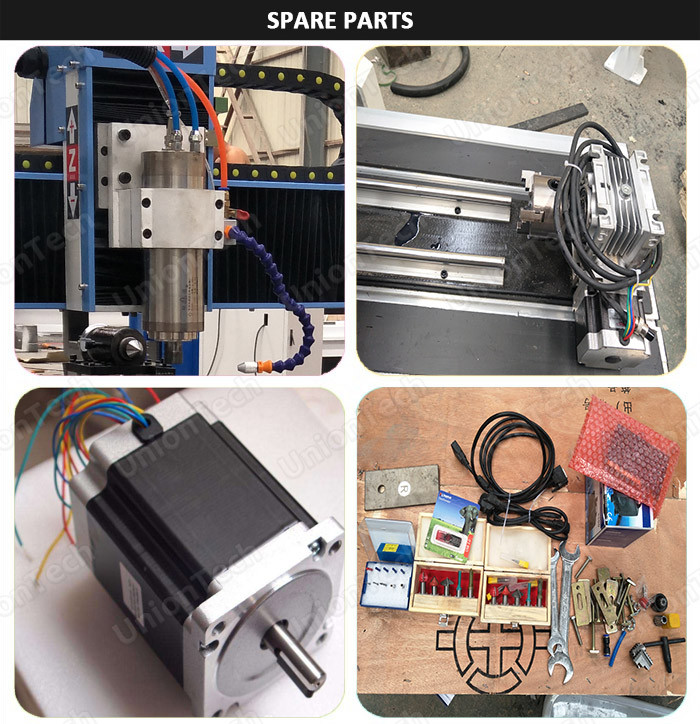

20180410155532277.jpg@!w400


Tool Box Parts:

Tool box ——————— 1 piece

Adjusting screw ————4 pieces

Clamp————————  8 pieces

Collets———————— 4 pieces

Tool, bit, cutter, mill——–21 pieces

Spanner———————- 4 pieces

Software CD—————– 1 piece

fuse core———————-2 pieces




Applications:

Used in advertising line, shoes’ moulding making and etc.

It can process aluminum, pvc, acrylic, pcb, mdf, stone, etc.

Well suited for processing panel. insulating materials, plastic, expoxy resin. carbon mixed compound, etc.
