Working area

600*900*200mm (can be customized)

Working Voltage

220V, 3PHASE, 60HZ (can be customized)

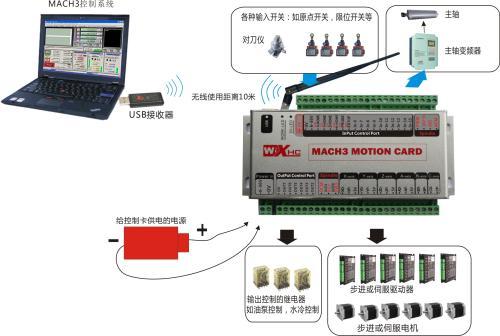

Control System

Mach3 control system

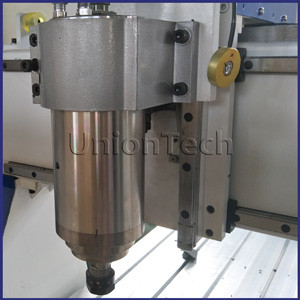

Spindle

2.2KW HQD water cooling spindle

Spindle speed

0-24000RPM/MIN

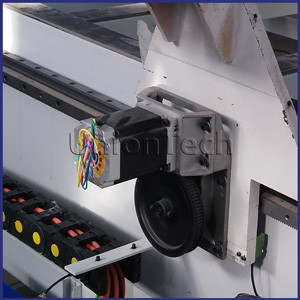

Motor and Driver

Leadshine stepper and driver

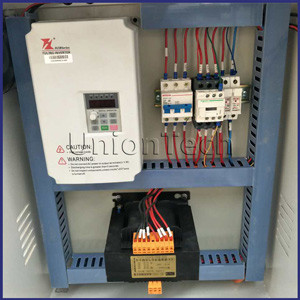

Inverter

Fuling inverter

Rotary axis

Yes

Structure

Cast iron

Table surface

T-slot

Gantry structure

Gantry Moving

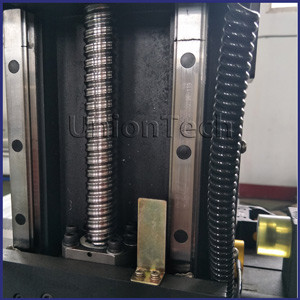

Transmission

3 Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Applications

Wood, MDF, PVC, Acrylic, Leather, Carpet,   Carton, Rubber, Corrugated box, Foam, Leather strip.

Optional

RichAuto DSP A11 controller
