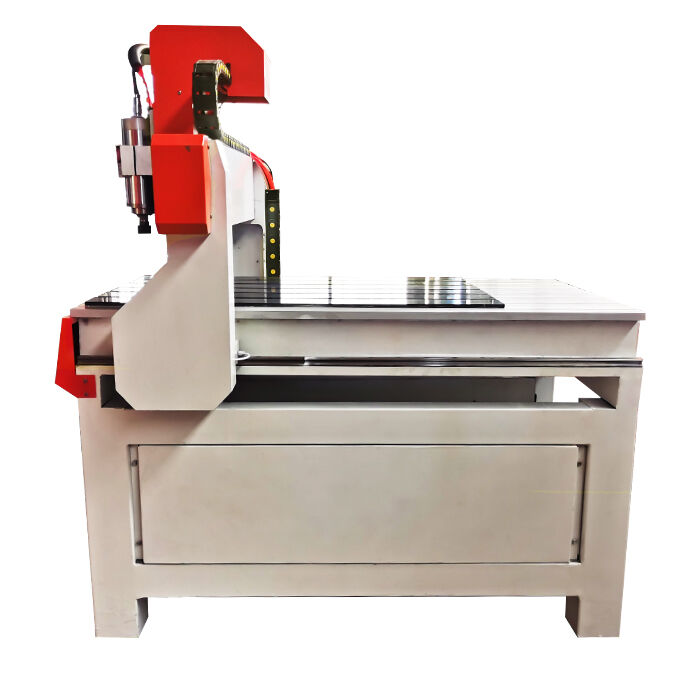

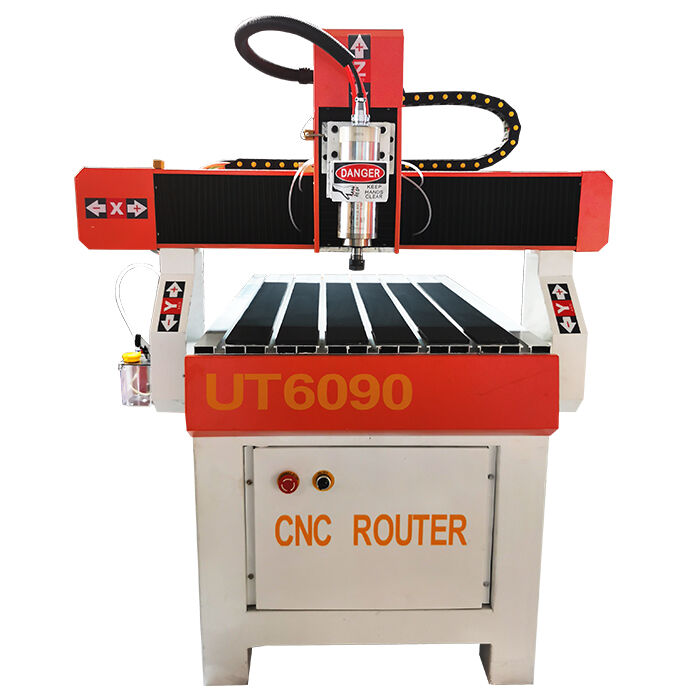

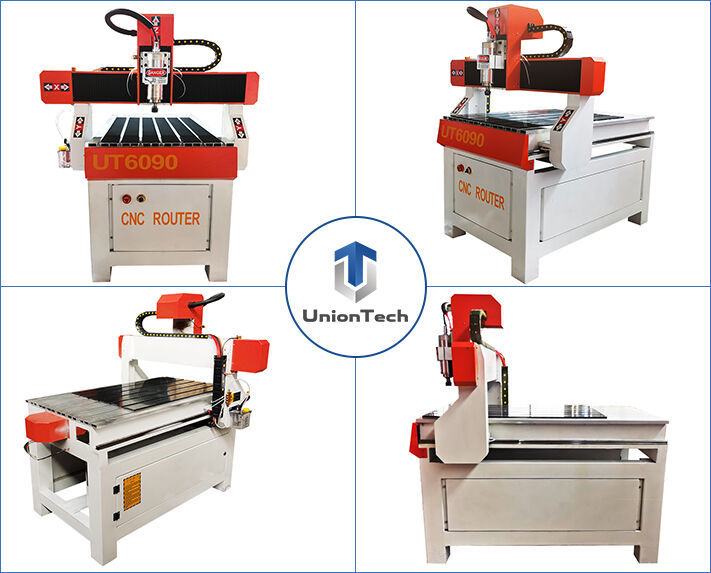

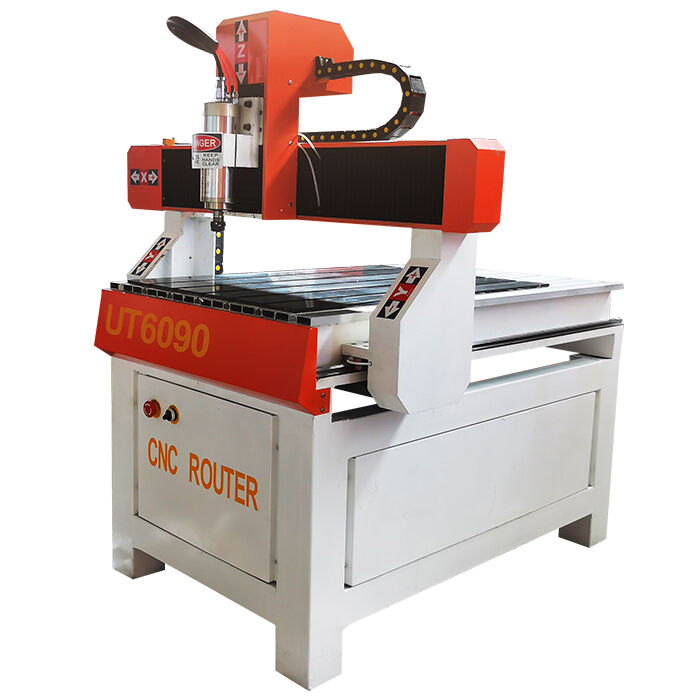

3d single main spindle mini mach3 6090 CNC router


Features:
1. Taiwan TBI ball screw, make the precision higher,
2. Imported Mach3 control system, connected with computer, easy to operate,
3. Imported HIWIN guide rails, make the machine working more smooth and higher precision.
4. Chinese best 2200w water cooling spindle with 24000RPM
5. T-slot working table.
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications


 Parameters:



Description

Parameters

X,Y,Z Working Area

600*900*150mm

Table Surface

T-slot Table with PVC

Frame

Cast iron Structure

X, Y, Z Structure

20# HINWIN linear guide,

Transmission

HTBI Ball Screw

Max. Power Consumption

(Without Spindle)2.5kw~3kw

Spindle Power

2.2kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Stepper motor

Working Voltage

AC380V/50-60Hz,3PH (Option: 220V/1phase)

Command Language

G Code

Operating System

Mach3 control system

Computer Interface

USB

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Optional parts

Japanese YASKAWA servo motor,

Italy HSD air cooling spindle






Parts of mini 3d 6090 cnc router


20180503114059348.jpg@!w400



20180504114758926.jpg@!w400




20180503161327186.jpg@!w400




Leadshine stepper motor and driver



NK105 control system



Air cooling spindle





20180428152240907.jpg@!w400



20180502110404843.jpg@!w400



Hiwin square rails



TBI ball screw



Fuling inverter





1. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



2. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


photobank (3).jpg

photobank (4).jpg
