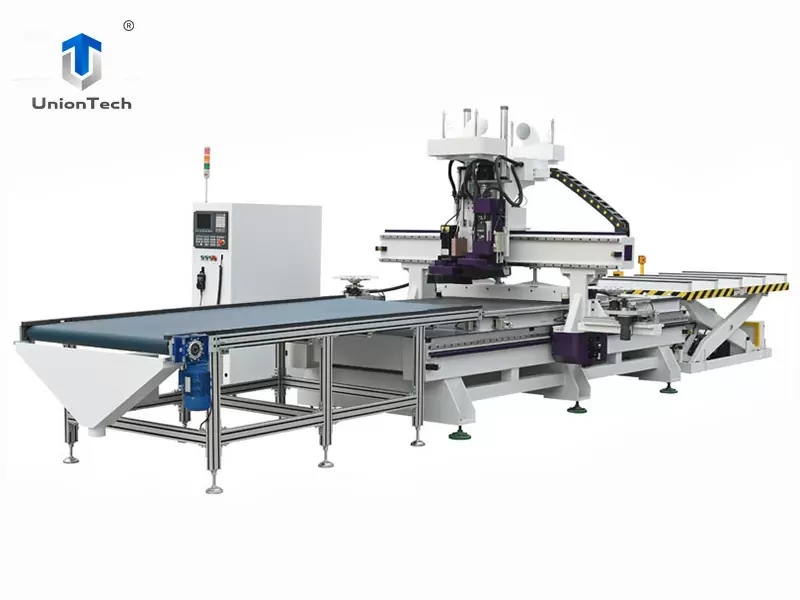

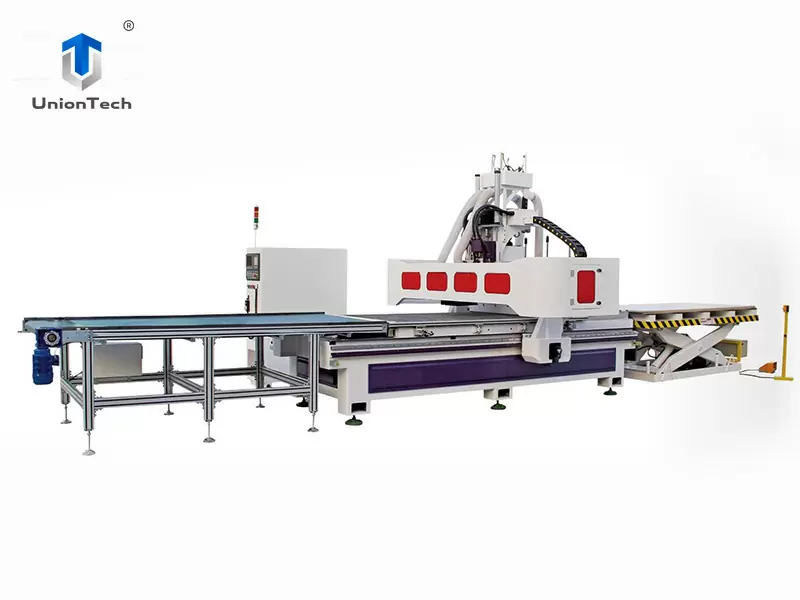

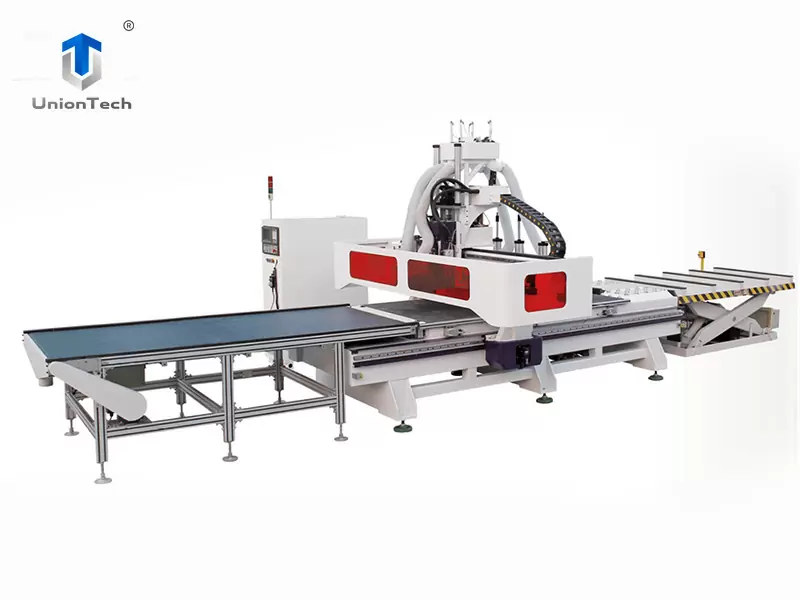

This automatic furniture making machine is an ATC CNC Router with an auto-feeding system. This nesting machine is ideal for mass production in the furniture industry.

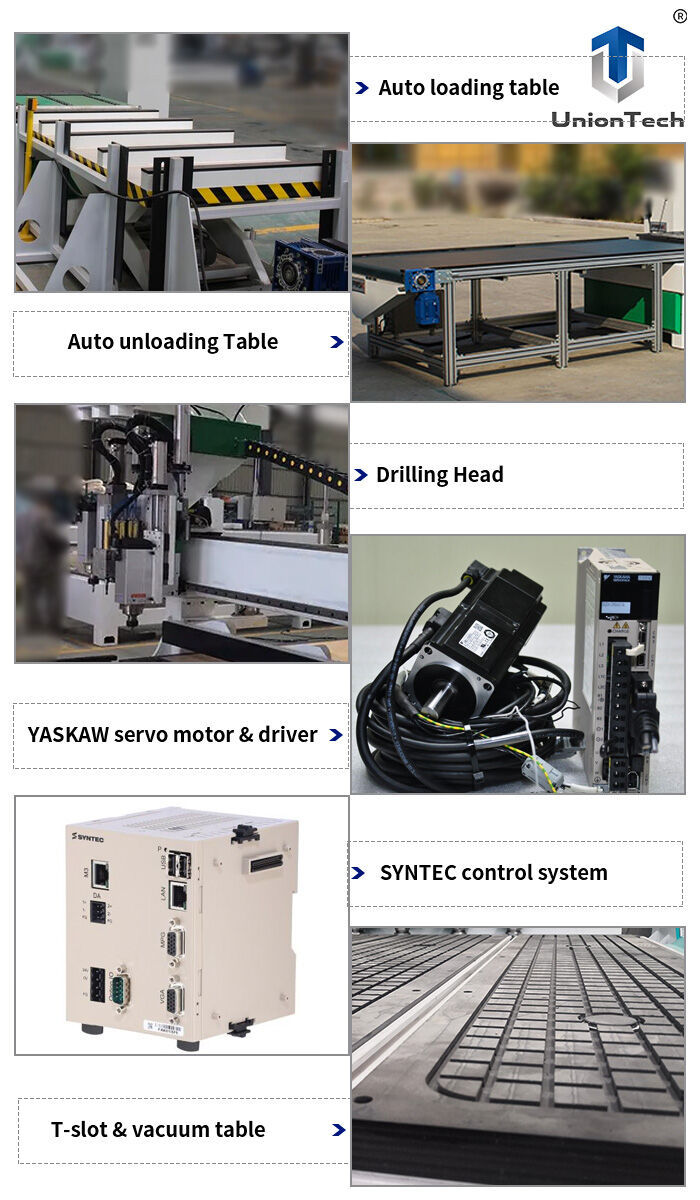

1. With automatic loading and unloading platform, it can effectively improve the production efficiency of cabinets and panel furniture.
2. This nesting machine adopts air-cooled tool change spindle, the speed can reach 24000 rpm, and it has the advantages of strong cutting ability and long service life.
3. With Italian HSD 9 vertical drills, multiple vertical holes can be processed at one time, effectively improving the drilling efficiency.
4. With 8 high-speed disc tool magazines, tool change can be completed within 8 seconds, which effectively improves production efficiency.

| Model | UT-2030 ATC |
| Working area | 2000*3000*200mm (can be customized) |
| Working Voltage | 380V, 3PHASE, 50HZ (can be customized) |
| Control System | SYNTEC Panel control system |
| Spindle | Chinese HQD ATC air cooling spindle, ISO 30, ER32 |
| Spindle speed | 0-24000RPM |
| Motor and Driver | Japan YASKAWA servo motor and driver |
| Inverter | 11KW Taiwan DELTA inverter |
| Structure | Heavy duty thicker and bigger welded frame and gantry |
| Table surface | T-slot & vacuum working table |
| Gantry structure | Thicker steel tube, Gantry Moving |
| Calibration | Auto tool sensor calibration |
| Transmission | X,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, Taiwan HIWIN/PMI/CSK 25# Rail Linear Bearing, |
| Command language | G Code |
| Software | ArtCam, Ucancam,Type3 |
| Voltage | 380V-3PH-50/60HZ |
| Optional | Dust Collector |
| Cables | GermanyIgus Cables with CE UL certificate |
| Traveling Speed | 8000mm/min |
| Working speed | 0-2500mm/min |
| Re-positioning accuracy | 0.03mm |
| Working accuracy | 0.03 |
