Type

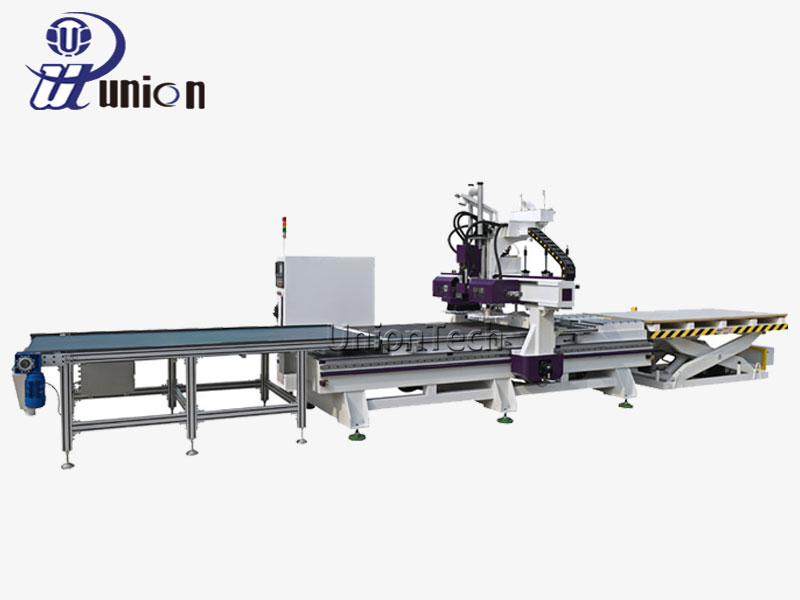

Automatic loading and unloading

Working area

1300*2500*200mm (can be customized)

Working Voltage

220V, 1PHASE, 50HZ (can be customized)

Control System

Taiwan Syntech control system

Control box

Independent control box

Spindle

9KW ATC air cooling spindle

Tools’ magazine

8 tools, Disc type

Spindle speed

0-18000RPM

Motor and Driver

Yaskawa servo motor and driver

Inverter

Taiwan Delta inverter

Structure

Heavy duty structure

Table surface

T-slot and Vacuum Working

Gantry structure

Gantry Moving

Vacuum pump

7.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Automatic tool sensor calibration

Automatic lubrication system

Yes

Automatic positioning

Yes

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 20# Rail

Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

U.S. CV/ Chinese Yunxi

Optional

5+4 Vertical drilling head
