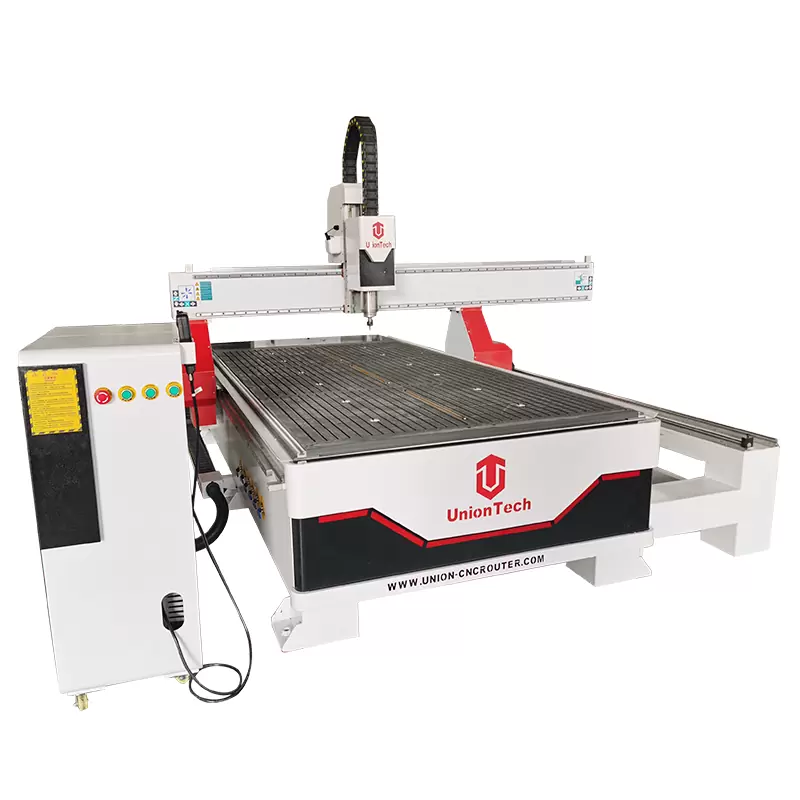

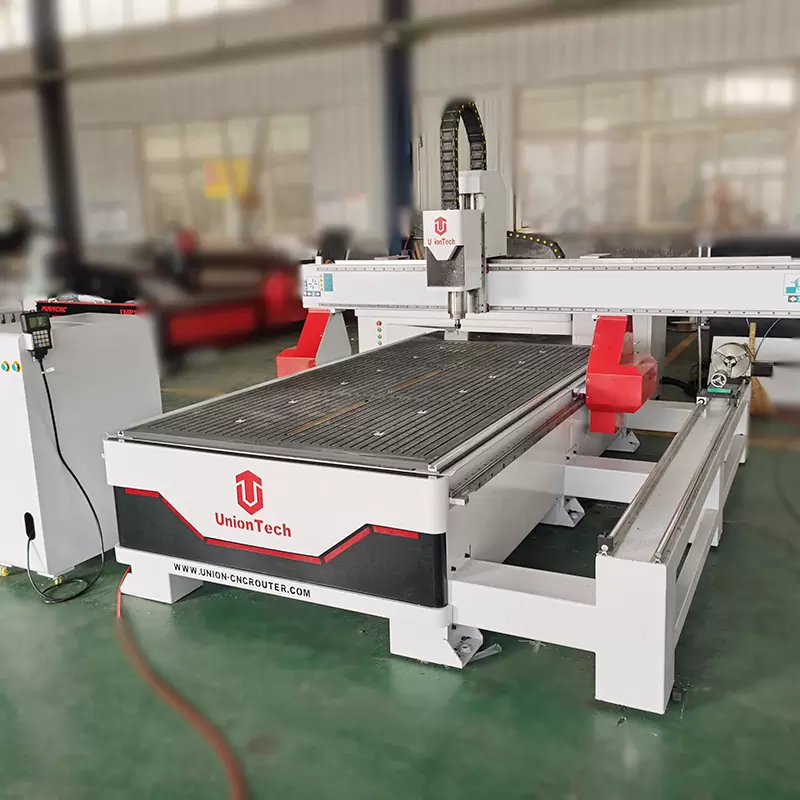

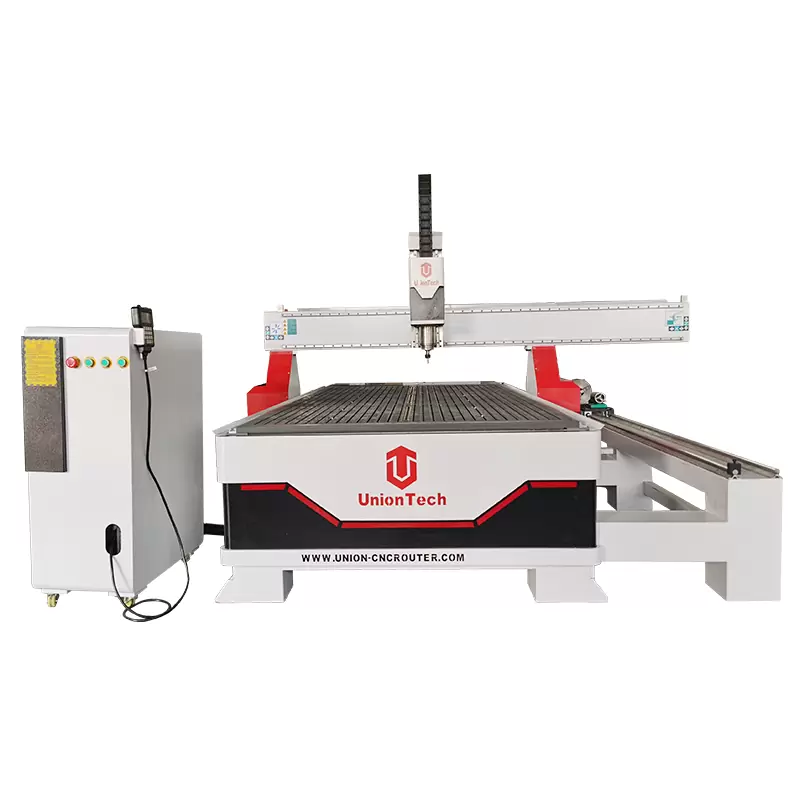

1325 4 axis cnc with rotary device

Brand : UnionTech
Model : UT-1325-4 axis
Category : 4 axis CNC Router Machine
Price Range : $3000 to $80000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 50 Sets per Month
Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter

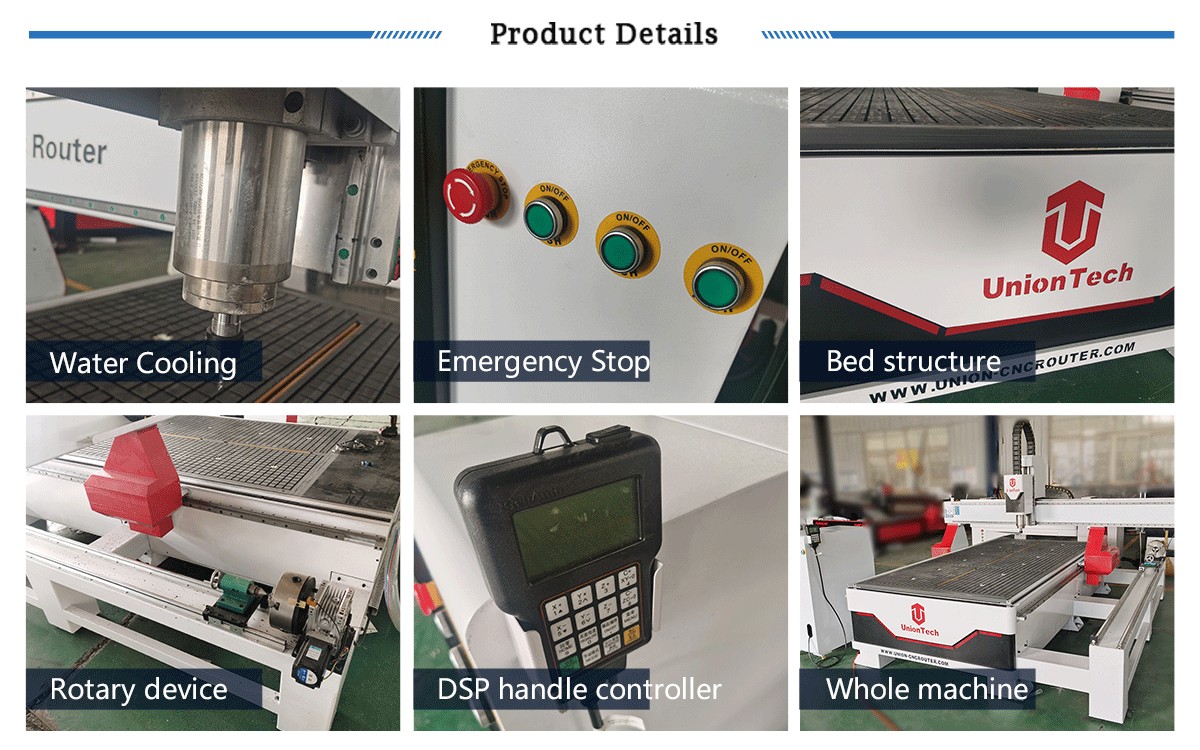

Parts
Applications


 * Effective working area: 1300*2500*200mm

 * Heavy duty thicker structure

 * DSP handle controller

 * Leadshine Servo motor and driver

 * Helical rack & Gear

 * Taiwan TBI ball screw

 * Taiwan PMI square linear guide way 25mm for X,Y,Z axis

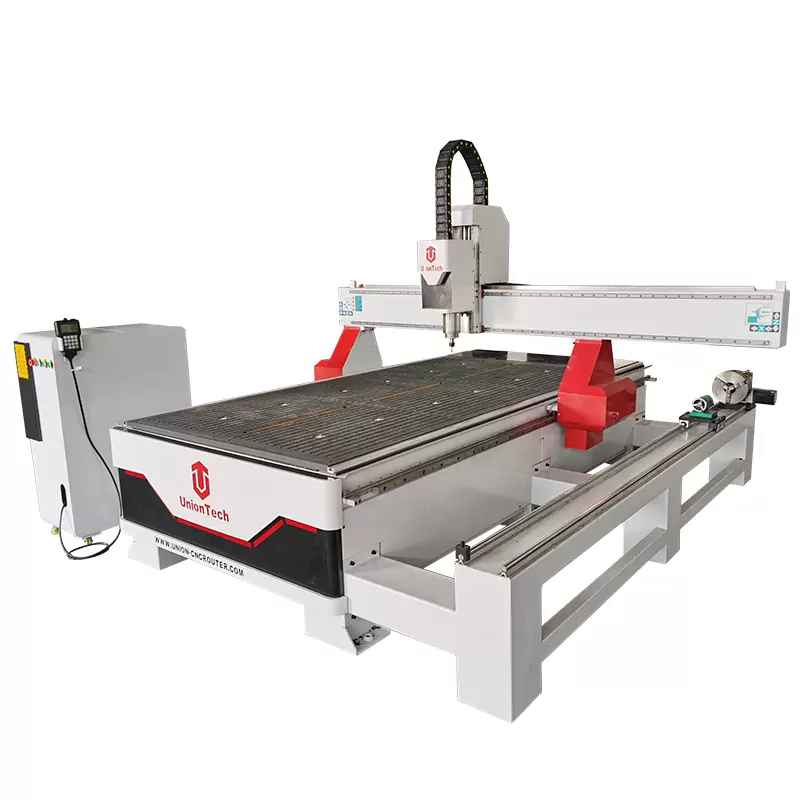

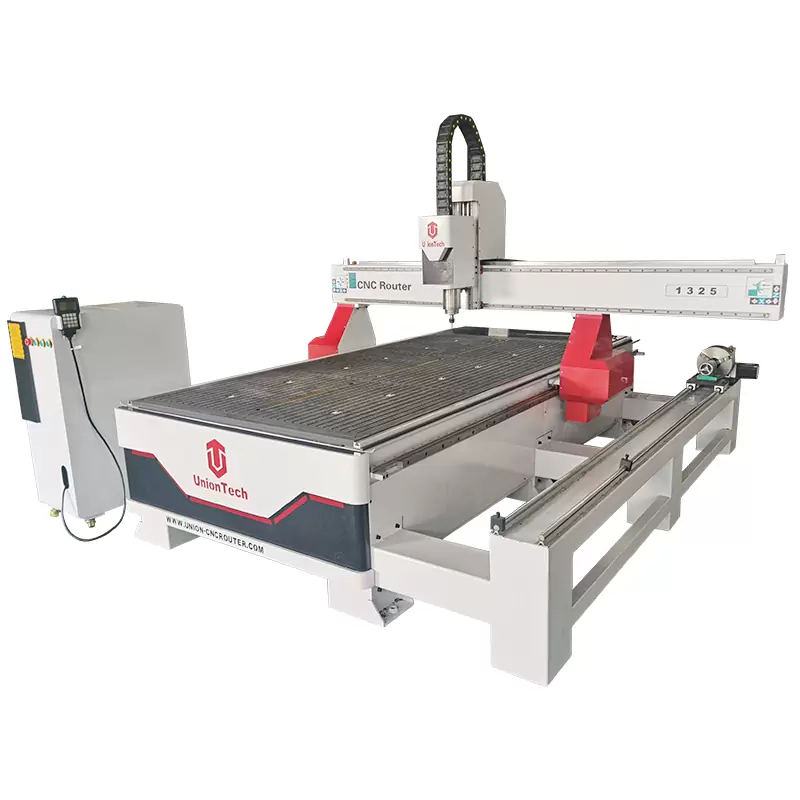

 * 200mm diameter Rotary device in the side

 * Manual Tool sensor calibration


ModelUT-1325R
Working area1300*2500*200mm (can be customized)
Working Voltage380V, 3PHASE, 50HZ (can be customized)
Control SystemDSP A18 4 axis control system
Spindle3kw water cooling spindle
Spindle speed0-24000RPM
Motor and DriverLeadshine servo motor and driver
InverterFuling inverter
StructureHeavy duty thicker and bigger welded frame and gantry
Table surfaceT-slot & Vacuum working table
Gantry structureThicker steel tube, Gantry Moving
CalibrationManual tool sensor calibration
TransmissionX,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, Taiwan HIWIN/PMI/CSK 25# Rail Linear Bearing,
Command languageG Code
SoftwareArtCam, Ucancam,Type3
Voltage380V-3PH-50/60HZ
OptionalItaly HSD air cooling spindleDust Collector
