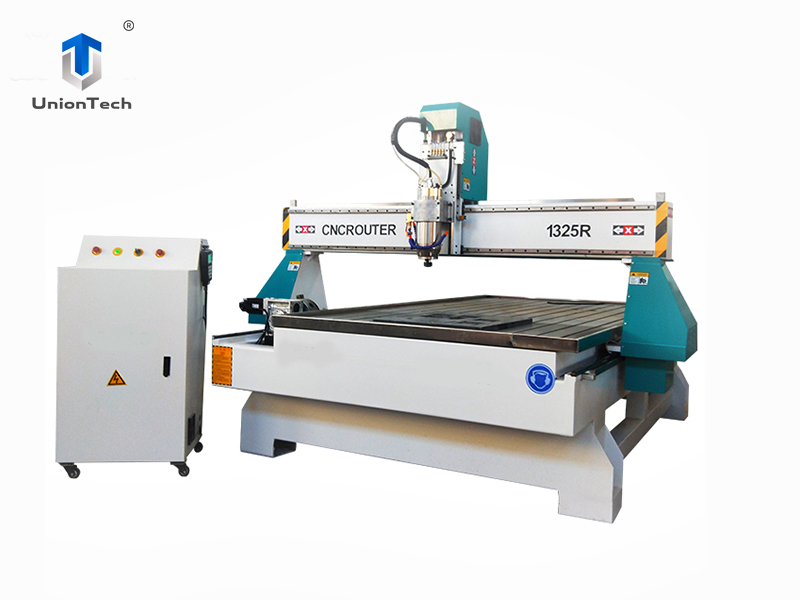

Woodworking Machinery 3 Axis 4 Axis Cnc Router Machine 3d Wood Carving Machine For Sale

Brand : UnionTech
Model : UT-1325
Category : Wood CNC Router
Price Range : $3000 to $5000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter
Parts
Applications



* Effective working area: 1300*2500*200mm
* Heavy duty thicker structure
* NCstudio control system
* Leadshine Servo motor and driver
* Helical rack & Gear
* Taiwan TBI ball screw
* Taiwan PMI square linear guide way 25mm for X,Y,Z axis
* Rotary device in the side

* Manual Tool sensor calibration




ProductWoodworking Machinery 3 Axis 4 Axis Cnc Router Machine 3d Wood Carving Machine For Sale
Working areaUT1325-1300*2500*200mm (can be customized)
Working Voltage380V, 3PHASE, 50HZ (can be customized)
Control SystemNCstudio 4 axis control system
Spindle4.5kw water cooling spindle
Spindle speed0-24000RPM
Motor and DriverLeadshine servo motor and driver
InverterFuling inverter
StructureHeavy duty thicker and bigger welded frame and gantry
Table surfaceT-slot & Vacuum working table
Gantry structureThicker steel tube, Gantry Moving
CalibrationManual tool sensor calibration
TransmissionX,Y Axis: Helical rack pinion, Z Axis: Taiwan TBI Ball Screw, Taiwan HIWIN/PMI/CSK 25# Rail Linear Bearing,
Command languageG Code
SoftwareArtCam, Ucancam,Type3
Voltage380V-3PH-50/60HZ
OptionalItaly HSD air cooling spindleDust Collector

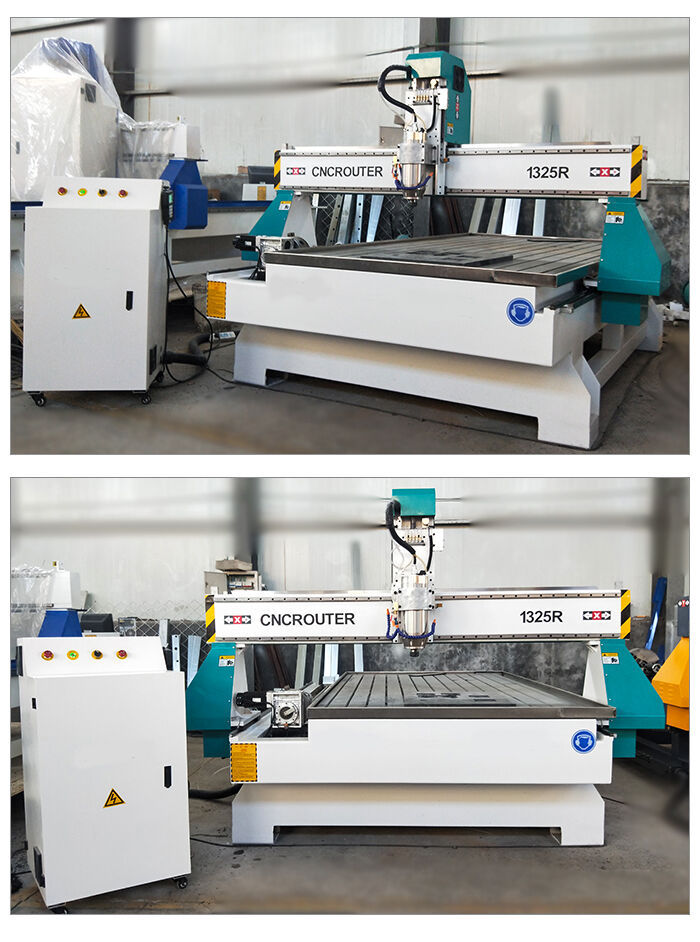

1325R cnc router.jpg
