stone cnc router-JINAN UNIONTECH MACHINERY CO., LTD.

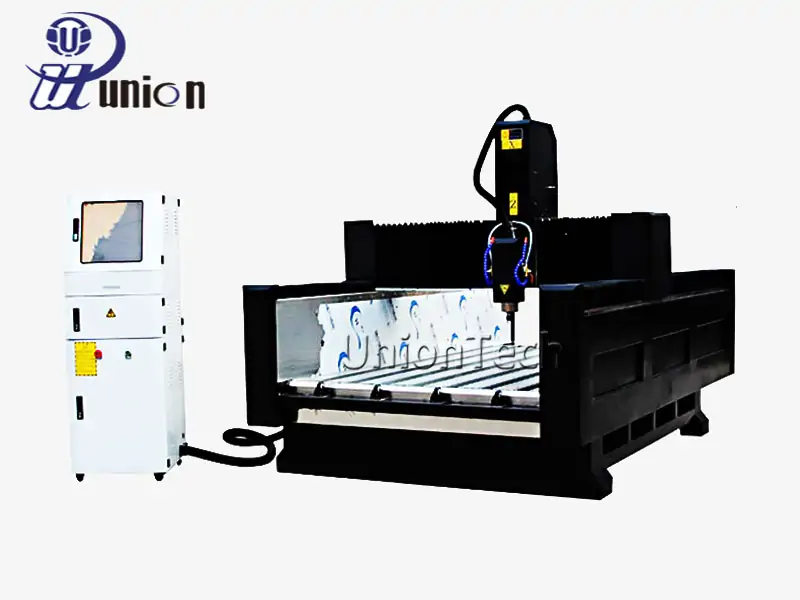

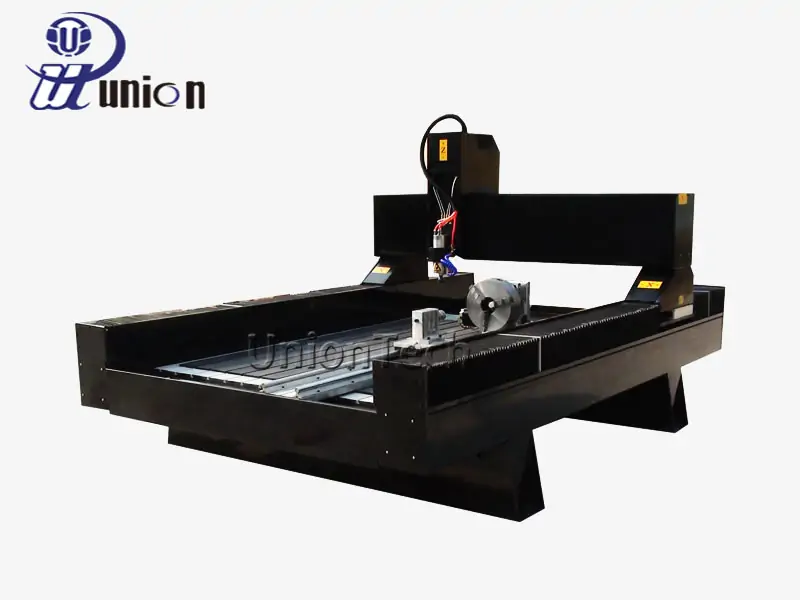

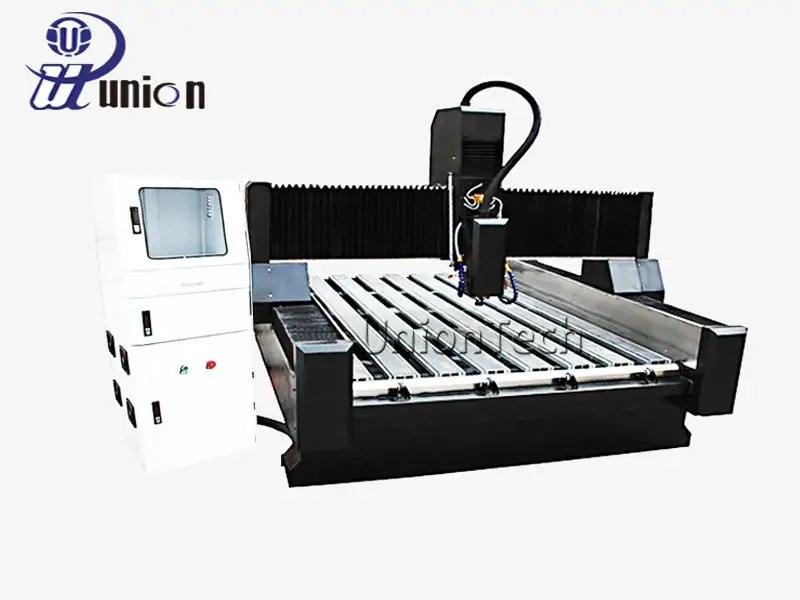

stone cnc router

Parameter

Parts

Applications

Technical Parameters:

Model	UT1325S
Working area	13002500400mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)

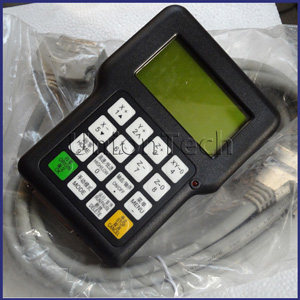

Control System	RichAuto DSP A11

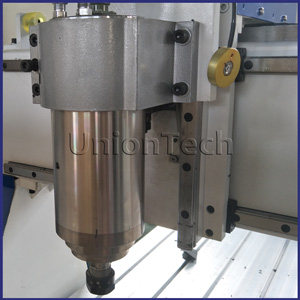

Spindle	5.5KW HQD water cooling ATC spindle
Spindle speed	0-24000RPM/MIN
Motor and Driver	Leadshine stepper motor
Inverter	Fuling inverter
Structure	Heavy steel welding
Table surface	T-slot
Gantry structure	Gantry Moving
Transmission	XY gear rack, Z ball screw
Feeding wheel	Yes
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	All kinds of stone, including marble, granite and etc.

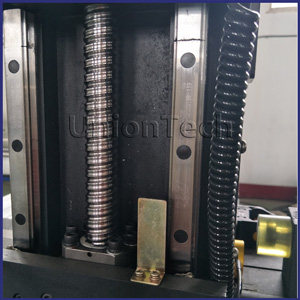

High precision TBI ball screw Hiwin rails Tool box

Applications:

Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving,

European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving.

PRODUCT DESCRIPTION

Technical Parameters:

Model	UT1325S
Working area	13002500400mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)
Control System	RichAuto DSP A11
Spindle	5.5KW HQD water cooling ATC spindle
Spindle speed	0-24000RPM/MIN
Motor and Driver	Leadshine stepper motor
Inverter	Fuling inverter
Structure	Heavy steel welding
Table surface	T-slot
Gantry structure	Gantry Moving
Transmission	XY gear rack, Z ball screw
Feeding wheel	Yes
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	All kinds of stone, including marble, granite and etc.
