cnc router 1325-JINAN UNIONTECH MACHINERY CO., LTD.

cnc router 1325

Parameter

Parts

Applications

Parameters of cnc router 1325:

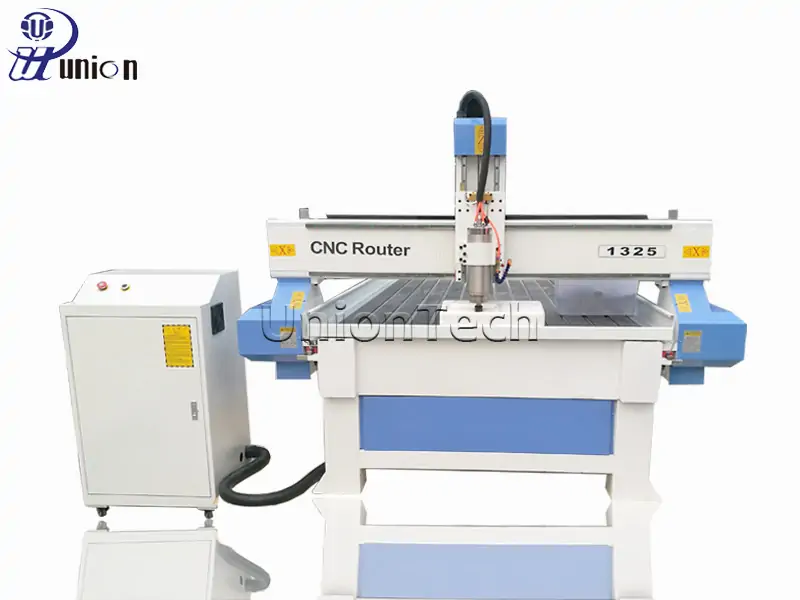

Model	UT1325A China cnc router
Working area	13002500200mm (can be customized)
Working Voltage	220V, 1PHASE, 50HZ (can be customized)

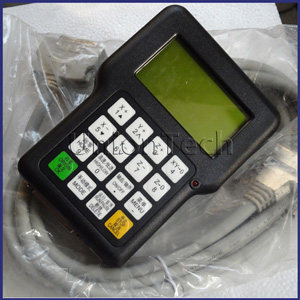

Control System	DSP A11 control system

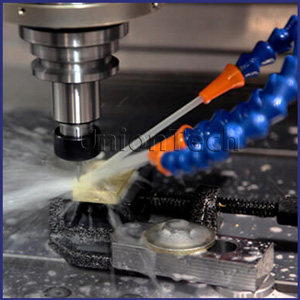

Cooling system	Water mist cooling system

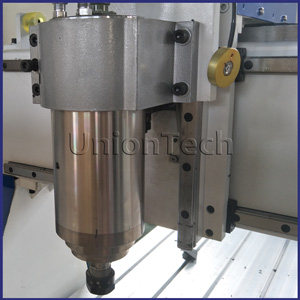

Spindle	3KW water air cooling spindle
Spindle speed	0-24000RPM

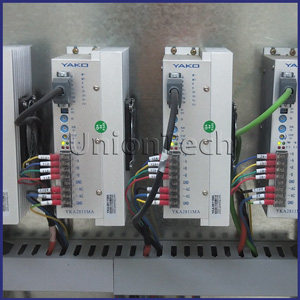

Motor and Driver	Yako 2811 driver and stepper motor
Inverter	3.7kw Fuling inverter
Structure	New type thicker and bigger welded frame and gantry

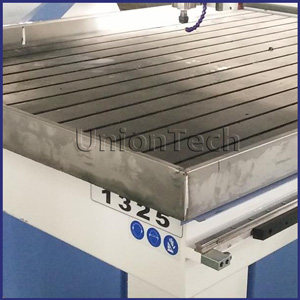

Table surface	T-slot Working Table with water sink
Gantry structure	Gantry Moving
Vacuum pump	5.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ)
Calibration	Manual tool sensor calibration

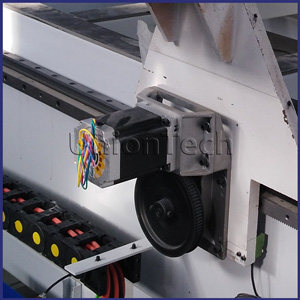

Transmission	X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing Z Axis: Taiwan TBI Ball Screw
Command language	G Code
Software	ArtCam, JdPaint,Type3
Optional	Rotary device: 200mm diameter* 2000mm length

Machine details:

Applications:

Furniture: ideally suitable for processing cabinet doors, wooden doors, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.

Also can processing aluminum, pvc, acrylic, pcb, mdf, stone, etc.

Well suited for processing panel. insulating materials, plastic, expoxy resin. carbon mixed compound, etc.

PRODUCT DESCRIPTION

Parameters of cnc router 1325:

Model	UT1325A China cnc router
Working area	13002500200mm (can be customized)
Working Voltage	220V, 1PHASE, 50HZ (can be customized)
Control System	DSP A11 control system
Cooling system	Water mist cooling system
Spindle	3KW water air cooling spindle
Spindle speed	0-24000RPM
Motor and Driver	Yako 2811 driver and stepper motor
Inverter	3.7kw Fuling inverter
Structure	New type thicker and bigger welded frame and gantry
Table surface	T-slot Working Table with water sink
Gantry structure	Gantry Moving
Vacuum pump	5.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ)
Calibration	Manual tool sensor calibration
Transmission	X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing Z Axis: Taiwan TBI Ball Screw
Command language	G Code
Software	ArtCam, JdPaint,Type3
Optional	Rotary device: 200mm diameter* 2000mm length
