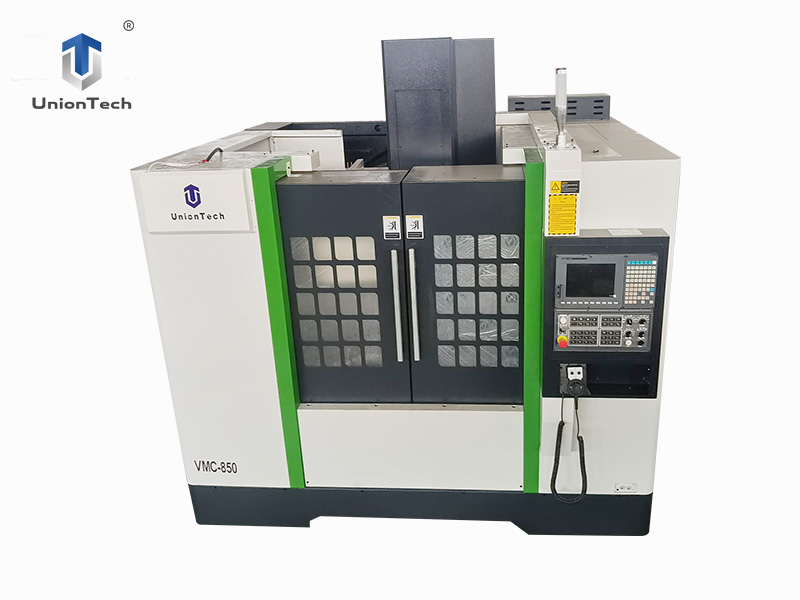

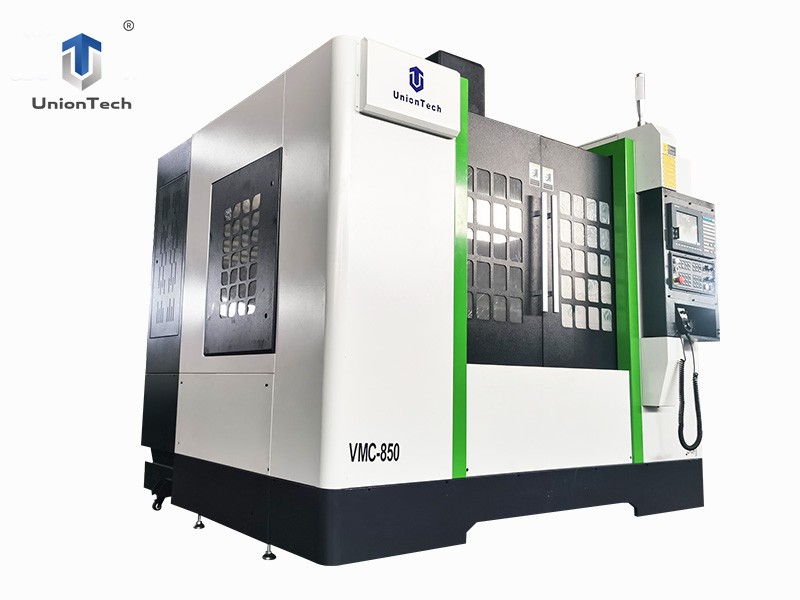

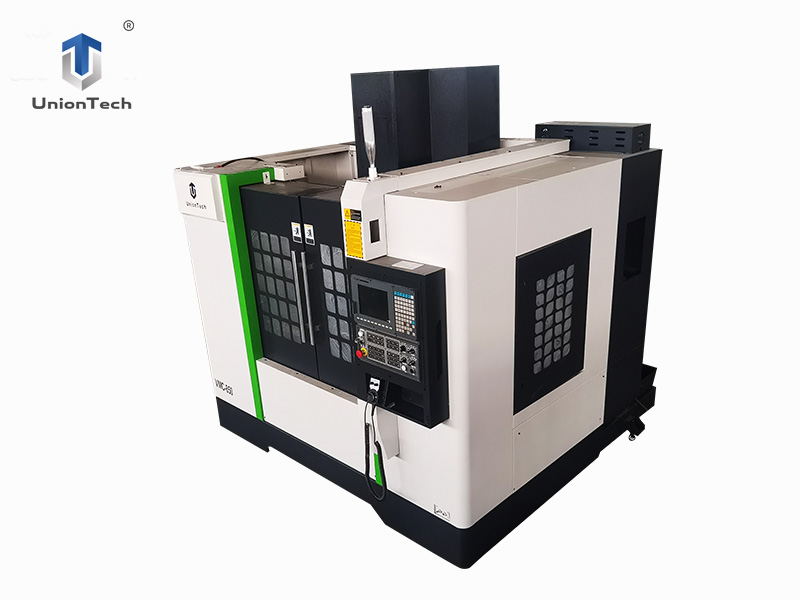

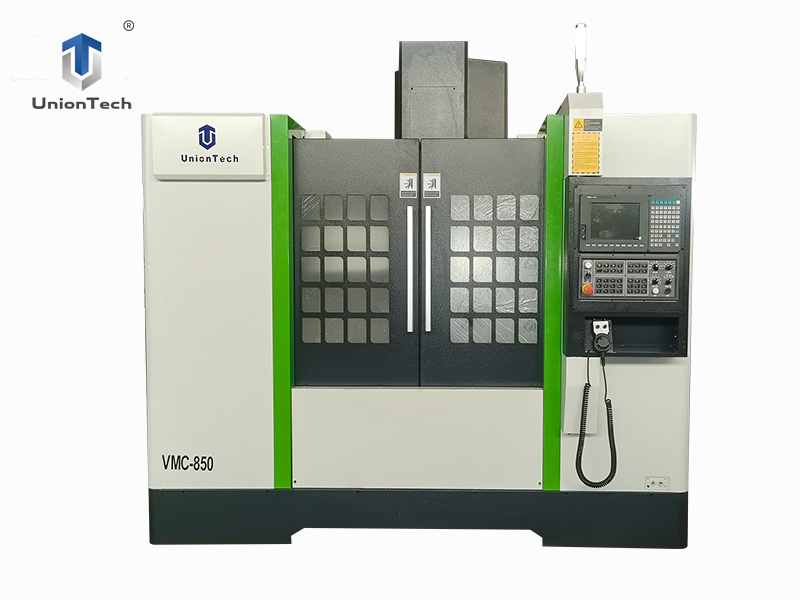

High Precision VMC850 CNC Machine 3 Axis CNC Vertical Machining Center VMC 850 CNC Milling Machine

Brand : UnionTech
Model : UT-VM C850
Category : Metal CNC Router - VMC
Price Range : $18000 to $40000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter

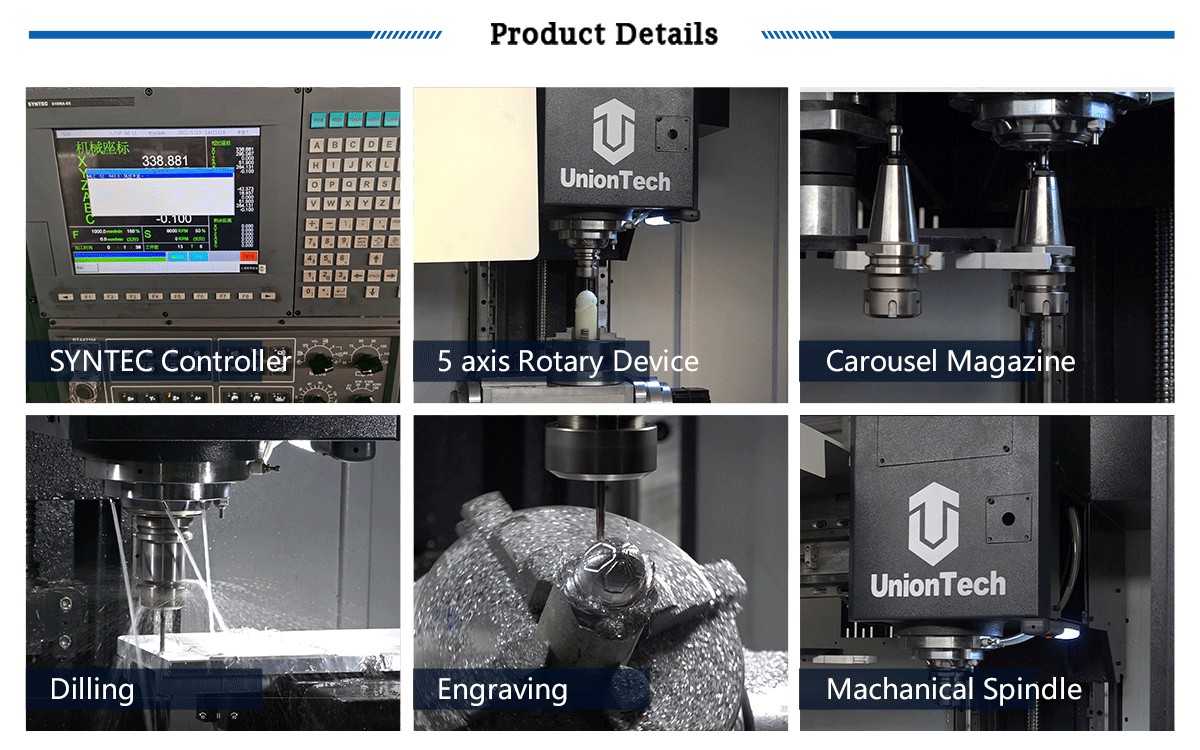

Parts
Applications

Technical Parameters:



ModelVMC850 (SYNTEC controller)
X /Y/Z axis travel800/500/500mm
Spindle nose to table surface120-620mm
X/Y/Z axis AC servo motortorque N.m 15/15/22
Spindle center to column surface550mm
Table size1000×550mm
Max.loading600kg
T-slot5×18×90mm
X/Y/Z axis rapid feed24/24/20m/min
Cutting feed1-10m/min
Main shaft connectionBelt
Spindle taperBT40-140
Range of spindle speed8000rpm
Spindle motor7.5kW
ATC capacity24qty
Max.tool diameterΦ80/Φ150mm
Max.tool weight8kg
Position accuracy(Standard)±0.008/300mm
Repeat positioning accuracy(standard)±0.005mm
Dimensions2750×2300×2300mm
Weight5200kg




Applications:



Mechanical processing, mould manufacturing can adapt from roughing to finishing processing requirements,

has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould,

automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
