• Parameters of cnc router 1325:

    Model

    UT1325A China cnc router

    Working area

    1300*2500*200mm (can be customized)

    Working Voltage

    220V, 1PHASE, 50HZ (can be customized)

    Control System

    DSP A11 control system

    Cooling system

    Water mist cooling system

    Spindle

    3KW water air cooling spindle

    Spindle speed

    0-24000RPM

    Motor and Driver

    Yako 2811 driver and stepper motor

    Inverter

    3.7kw Fuling inverter

    Structure

    New type thicker and bigger welded frame and gantry

    Table surface

    T-slot Working Table with water sink

    Gantry structure

    Gantry Moving

    Vacuum pump

    5.5kw water cooling vacuum pump (380V, 3PHASE, 50HZ)

    Calibration

    Manual tool sensor calibration

    Transmission

    X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Optional

    Rotary device: 200mm diameter* 2000mm   length


  • Machine details:

    5.5kw water cooling spindleStepper motorWater sink


    YAKO2811 driverWater mist cooling sprayerDSP A11 controller


  • Applications:

    Furniture: ideally suitable for processing cabinet doors, wooden doors, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.

    Also can processing aluminum, pvc, acrylic, pcb, mdf, stone, etc.


    Well suited for processing panel. insulating materials, plastic, expoxy resin. carbon mixed compound, etc.



    Applicable materials：

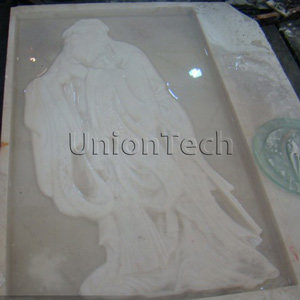

    WoodmarbleEPS foam


    graniteAluminumStainless steel


cnc router 1325

UT-1325A
