• Parameters of the cnc machine router:

    Model

    UT-1325B cnc router china

    Working area

    1300*2500*200mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    Weihong NCstudio control system

    Control box

    Double doors control box

    Spindle

    3KW water cooling spindle

    Spindle speed

    0-24000RPM

    Motor and Driver

    Leadshine driver and stepper motor

    Inverter

    3.7kw Fuling inverter

    Structure

    Heavy duty thicker and bigger welded frame and gantry

    Table surface

    T-slot and Vacuum Working Table with 4 zones

    Gantry structure

    Gantry Moving

    Vacuum pump

    5.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

    Calibration

    Manual tool sensor calibration

    Transmission

    X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 20# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Optional

    Rotary device: 200mm diameter* 2000mm   length

    We offer:


    1)Guarantee the machine for one year.Any damage to the machine caused by improper use will be charged.

    2)Delivery the machine within 7-14 days after received your payment

    3)24 hours technical support Internet or by Telephone, free instructions and Problem solving.

    4)Free installation and fully test before sending and free training for operators


  • Parts of woodworking cnc router machine

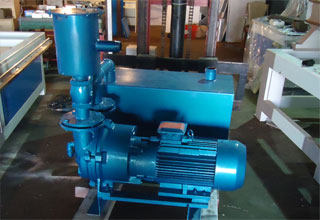

    Machine structurevacuum and T slot tablevacuum pump

    20180502110404837.jpg@!w1200

    		20180428152240907.jpg@!w1200
    stepper motor and driverGear rack transmissionHiwin rails and TBI ball screw


  • Applications:


    Building Industry ( Architectural Decoration Elements, Kitchen Cabinet & Door, Facades & Curtainwall, Column & Balustrade )

    Sign& Advertising ( Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)

    Models & Prototyping

    Plastics & Composites ( ACP, ACM and solid surface material etc ) non-ferrous metals & Marine



woodworking cnc router machine

working area:1300*2500mm

4.5kw water cooling spindle

vacuum table

NC studio controller
