• Technical Parameters:



    Model

    UT1625 multi spindle

    Working area

    1600*2500*300mm (can be customized)

    Rotary axis

    200mm diameter,2000mm length

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    Weihong NK280 4 axis controller

    Spindle

    2.2KW HQD water cooling*6

    Spindle speed

    0-24000RPM/MIN

    Motor and Driver

    Leadshine easy servo motor and driver

    Inverter

    Fuling inverter

    Guide rails

    Taiwan Hiwin rail

    Structure

    Heavy steel welding

    Table surface

    T-slot

    Gantry structure

    Gantry Moving

    Transmission

    XY gear rack, Z ball screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Applications

    Flat engraving and cylinder engraving


  • Parts of multi spindle cnc router:

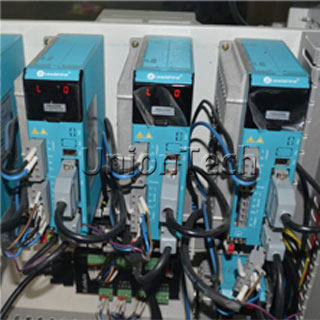

    2.2kw HQD water cooling spindleLeadshine easy servo motorLeadshine easy servo driver


    Hiwin railsWeihong NK280 control systemMulti rotary axis

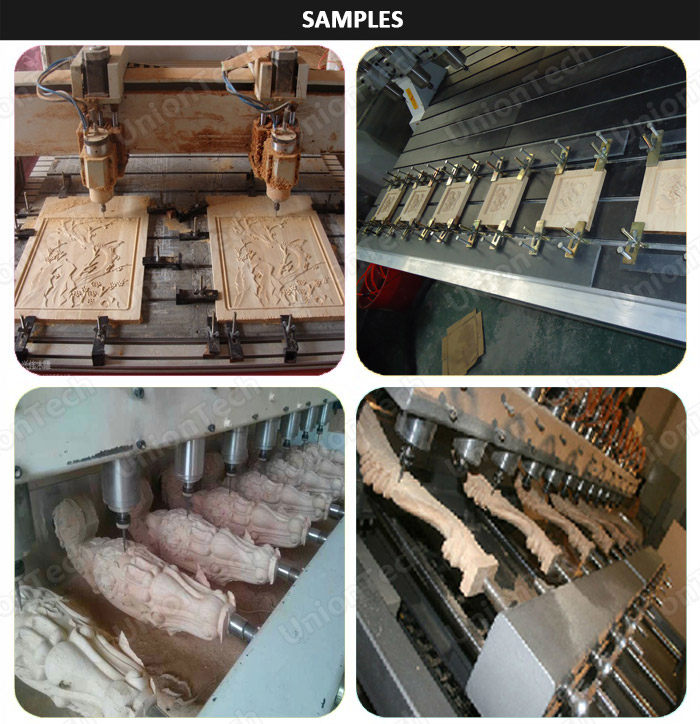

  • Applications:


    Wood processing: cutting and carving on any kind of wood for making furniture,

    such as door, window, cabinet, craft wooden door, chairs and so on.

    Professional suitable for the legs of chair, stair railing, and 3D designs.



multi spindle cnc router

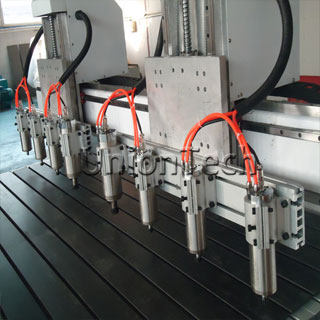

2.2kw HQD water cooling spindle*6

6 spindles and 6 rotary axis

flat engraving and cylinder engraving

rotary axis:200mm diameter, 2000mm legnth

NK280 control system

Leadhine easy servo motor
