• Parameters

    Model

    UT2040 atc cnc router

    Working area

    2000*4000*400mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    Syntec 6MB control system

    Control box

    Imported Rittal control box

    Spindle

    9KW HSD air cooling spindle

    Spindle speed

    0-18000RPM

    Motor and Driver

    Japanese YASKAWA servo driver and motor

    Inverter

    11kw DELTA inverter

    Structure

    Heavy duty thicker and bigger welded   frame and gantry

    Table surface

    T-slot and Vacuum Working Table with 6   zones

    Gantry structure

    Gantry Moving

    Vacuum pump

    7.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

    Calibration

    Auto tool sensor calibration

    Transmission

    X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 25# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Optional

    Rotary device: 200mm diameter* 2000mm length


    • Mechanical part of      the machine ___ 1 set

    • Spindle Motor 9      KW ____________ 1 piece

    • CNC electronic      control box _______1 piece

    • Control System      ________________1 piece

    • Vacuum pump       (for the vacuum table)_1 piece

    • Dust collector       (3kw double packages)_ 1 piece

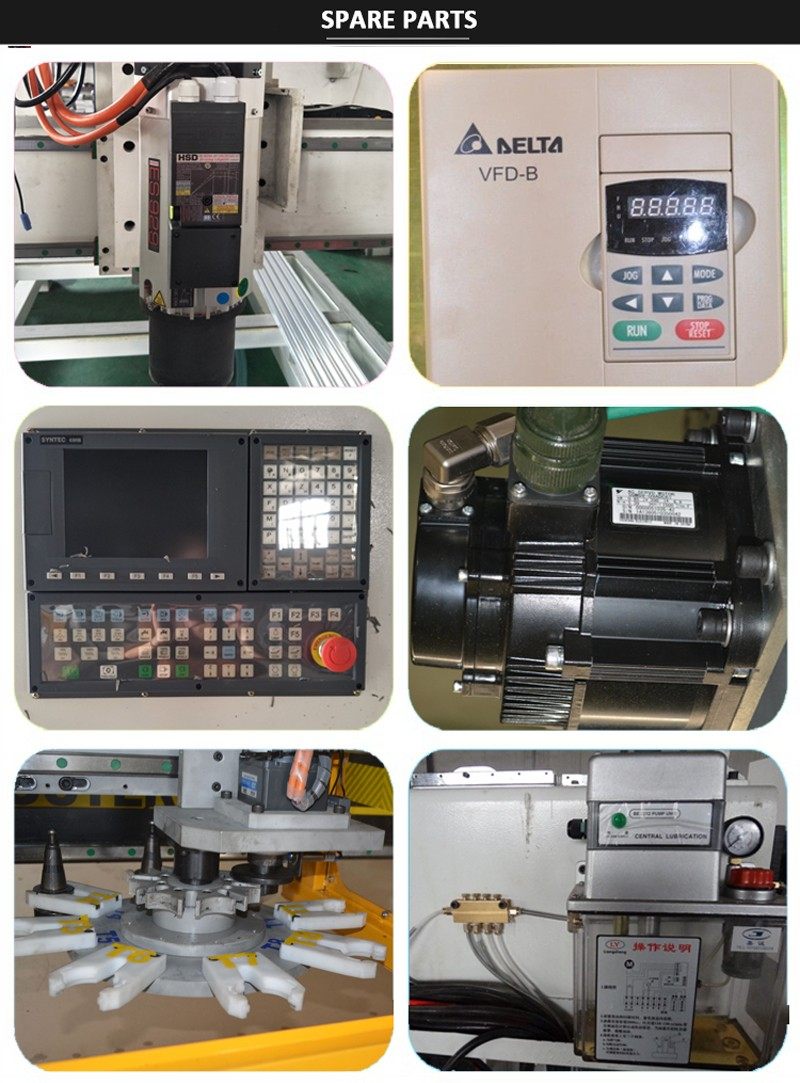

      • Machine details of atc cnc  machine:


      9kw Italy HSD air cooling spindleTaiwan Syntec control systemYASKAWA servo motor and Shimpo
      reducer

      Limit switch and PMI railsRotary deviceCarousel tool storage with 10 tools



      Tool Box Parts:

    • Tool box ——————————- 1 piece

    • Adjusting screw ———————  6 pieces

    • Clamp ———————————- 8 pieces

    • Collets (ISO30) ———————- 8 pieces

    • Tool, bit, cutter, mill —————- 21 pieces

    • Spanner ——————————– 4 pieces

    • Software CD ————————— 1 piece

    • Fuse core (20A) ———————   2 pieces

    • Tool holder —————————-  4 pieces

    • Fork wrench (ER32) —————— 1 piece

    • Open spanner (41-46) ————— 1 piece

    • Box key ——————————– 1 piece

    • Instructions ————————— 1 piece


  • Applications of 3d atc cnc：

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Artwork and Decoration

    wood crafts; gift box; jewelry box

    3. Others

    Relief sculpture and 3D engraving and Cylindrical object.


    Samples:



2040 atc cnc router

Model: UT-2040ATC
