• Parameters:


    Model

    UT1530atc

    Working area

    1500*3000*200mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    SIEMENS 808D control system

    Control box

    Imported Rittal control box

    Spindle

    Chinese 9KW HSD air cooling spindle

    Spindle speed

    0-18000RPM

    Motor and Driver

    SIEMENS 1kw servo driver and motor

    Inverter

    11kw DELTA inverter

    Structure

    Heavy duty thicker and bigger welded   frame and gantry

    Table surface

    T-slot and Vacuum Working Table with 6   zones

    Gantry structure

    Gantry Moving

    Electric parts

    French Schneider brand

    Vacuum pump

    7.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

    Calibration

    Auto tool sensor calibration

    Lubrication

    Auto

    Transmission

    X,Y Axis: Helical rack, Taiwan PMI 25#   Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Software

    ArtCam, JdPaint,Type3

    Optional

    Germany Becker pump


  • Machine details:

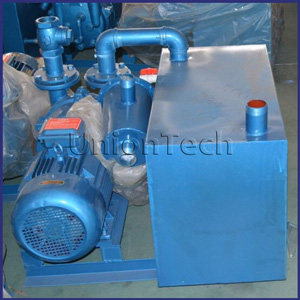

    Linear tool storage7.5kw air vacuum pumpMPG for SIEMENS


  • Applications:


    1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture


    2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.


    3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process


    4..Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo's processing.



1530 atc cnc router

Model: UT-1530ATC
