• Parameters:



    Description

    Parameters

    X,Y,Z Working Area

    600*600*150mm

    Table Surface

    T-slot Table with PVC

    Frame

    Cast iron Structure

    X, Y, Z Structure

    20# HINWIN linear guide,

    Transmission

    HTBI Ball Screw

    Max. Power Consumption

    (Without Spindle)2.5kw~3kw

    Spindle Power

    2.2kw water cooling spindle

    Spindle Speed

    0-24000RPM

    Drive Motors

    Stepper motor

    Working Voltage

    AC380V/50-60Hz,3PH (Option: 220V/1phase)

    Command Language

    G Code

    Operating System

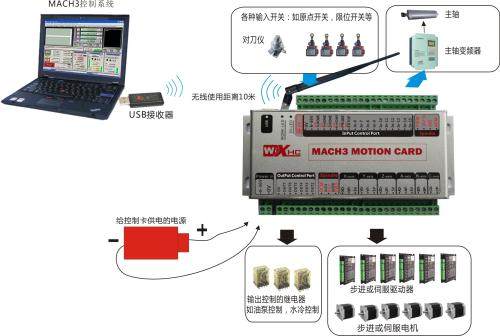

    Mach3 control system

    Computer Interface

    USB

    Software Compatibility

    Type3/UcancameV9 Software, (Option: Artcam Software)

    Optional parts

    Japanese YASKAWA servo motor,

    Italy HSD air cooling spindle





  • Parts of mini 3d 6090 cnc router


    20180503114059348.jpg@!w1200



    20180504114758926.jpg@!w1200




    20180503161327186.jpg@!w1200




    Leadshine stepper motor and driver



    NK105 control system



    Air cooling spindle



    20180503161327186.jpg@!w1200



    20180428152240907.jpg@!w1200



    20180502110404843.jpg@!w1200



    Hiwin square rails



    TBI ball screw



    Fuling inverter





  • 1. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



    2. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


    photobank (3).jpg

    photobank (4).jpg


6090 MINI CNC wood router
6090 MINI CNC wood router CNC milling machine for PCB ,wood art craft , phone case
