• Parameters:

    Model

    UT-1325R 4 axis cnc router rotary

    Working area

    1300*2500*200mm (can be customized)

    Working Voltage

    380V, 3PHASE, 50HZ (can be customized)

    Control System

    DSP A11 control system

    Control box

    Double doors control box

    Spindle

    Chinese HQD 6kw air cooling spindle

    Spindle speed

    0-18000RPM

    Motor and Driver

    Leadshine driver and stepper motor

    Inverter

    7.5kw Fuling inverter

    Structure

    Heavy duty thicker and bigger welded   frame and gantry

    Table surface

    T-slot and Vacuum Working Table with 4   zones

    Gantry structure

    Gantry Moving

    Vacuum pump

    5.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

    Calibration

    Manual tool sensor calibration

    Transmission

    X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing

    Z Axis: Taiwan TBI Ball Screw

    Command language

    G Code

    Rotary device

    200mm diameter* 2000mm length

    Optional

    Japanese YASKAWA servo motor,

    DSP 4axis control system






    • Mechanical part of  the machine ___ 1 set

    • Spindle Motor 6 KW _____________1 piece

    • CNC electronic control box _______ 1 piece

    • Control System ________________ 1 piece

    • Vacuum pump  (for the vacuum table)__1 piece

    • Dust collector (3kw double packages)__ 1 piece

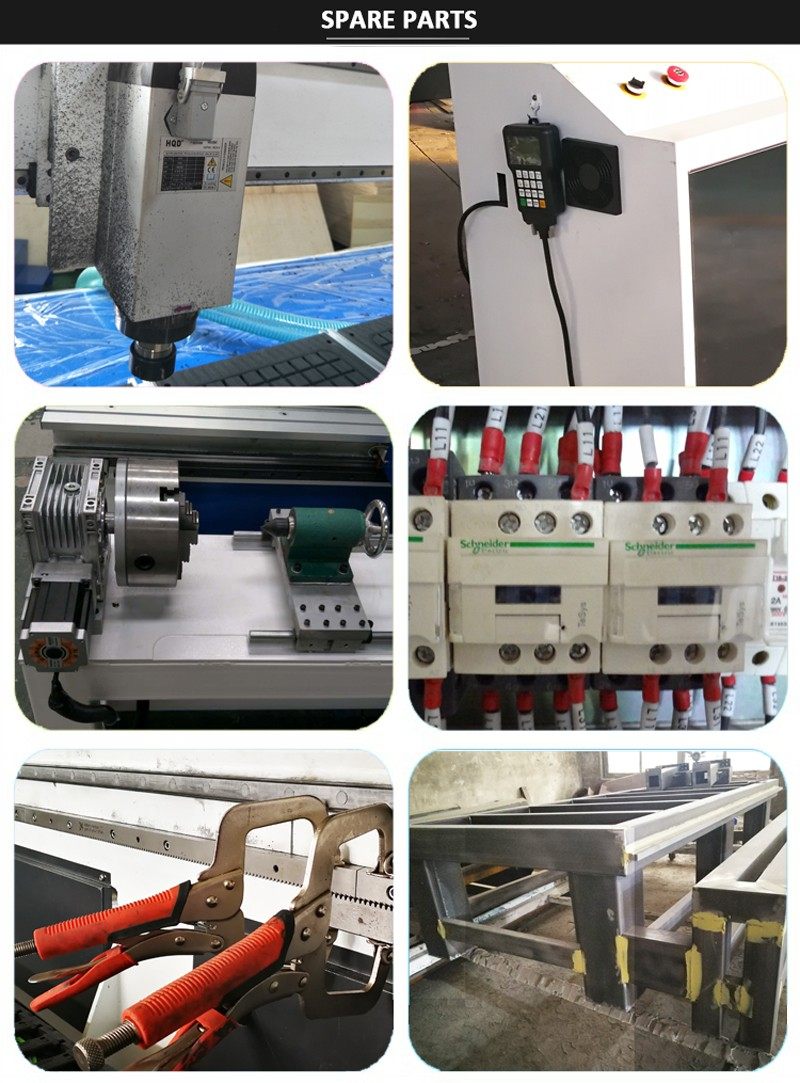

      • 6kw HQD air cooling spindleDSP A11 controllerAir cooling vacuum pump

      HIWIN 20 guide rails200mm diameter rotary deviceLeadshine 860H driver



      Tool Box Parts:

    • Tool box ——————————- 1 piece

    • Adjusting screw ———————  4 pieces

    • Clamp ———————————- 8 pieces

    • Collets  ———————-———   4  pieces

    • Tool, bit, cutter, mill —————- 21 pieces

    • Spanner ——————————– 4 pieces

    • Software CD ————————   1 piece

    • Fuse core  —————————    2 pieces

    • Tool holder —————————- 4 pieces

    • Fork wrench (ER32) —————— 1 piece

    • Open spanner (41-46) —————1 piece

    • Box key ——————————–– 1 piece

    • Instructions —————————– 1 piece


  • Applications：

    1. Wood furniture industry

    Doors; Cabinets; Tables; Chairs.

    Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

    2. Advertising industry

    Signage; Logo; Badges; Display board; Meeting sign board; Billboard

    Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

    3. Die industry

    A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

    4. Artwork and Decoration

    wood crafts; gift box; jewelry box

    5. Others

    Relief sculpture and 3D engraving and Cylindrical object.


    Samples:





cnc router 4 axis rotary

Model: UT-1325R
