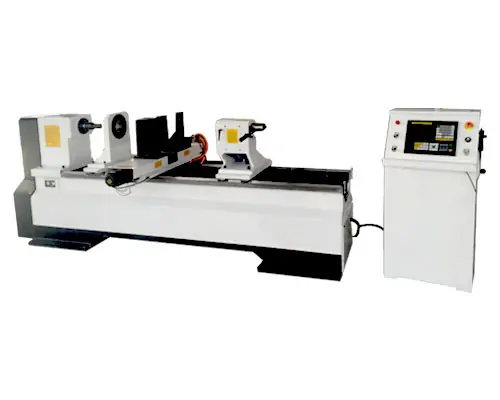

UT1500ST

Tel：+86 15562667312

Email：bill@union-cnc.com

WhatsApp：+86 15562667312

Parameter

Parts

Applications

Model	UT1500ST
Type	Horizontal lathe
Max turning length	1500mm (can be customized)
Max turning diameter	300mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)
Control System	Panel control system
Axis	One
Quantity of knife	One
Motor and Driver	Leadshine servo motors and drivers
Structure	Cast iron structure
Guide rail	Hiwin rails
Ball screw	TBI from Taiwan
Min distance for set	0.1mm
Max feeding speed	2000mm/min
Language	English
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	Cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

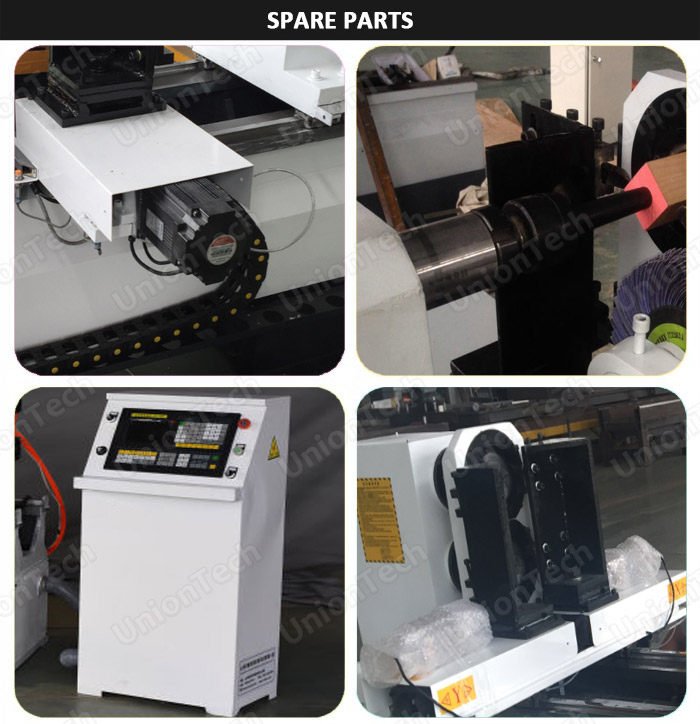

Mechanical part of the machine __ 1 set
Alloy knife ___________________ 1 piece
CNC electronic control box ______ 1 piece
Control System _______________ 1 piece
Chunck______________________1 piece
Dust collector (3kw double packages)___1 piece

Tool Box Parts:

Tool box ——————— 1 piece

Adjusting screw ———— 4 pieces

Tool, bit, cutter, mill——– 21 pieces

Spanner———————- 4 pieces

Software CD—————– 1 piece

fuse core———————- 2 pieces

Applications:

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

PRODUCT DESCRIPTION

Model	UT1500ST
Type	Horizontal lathe
Max turning length	1500mm (can be customized)
Max turning diameter	300mm (can be customized)
Working Voltage	380V, 3PHASE, 50HZ (can be customized)
Control System	Panel control system
Axis	One
Quantity of knife	One
Motor and Driver	Leadshine servo motors and drivers
Structure	Cast iron structure
Guide rail	Hiwin rails
Ball screw	TBI from Taiwan
Min distance for set	0.1mm
Max feeding speed	2000mm/min
Language	English
Command language	G Code
Software	ArtCam, JdPaint,Type3
Applications	Cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
