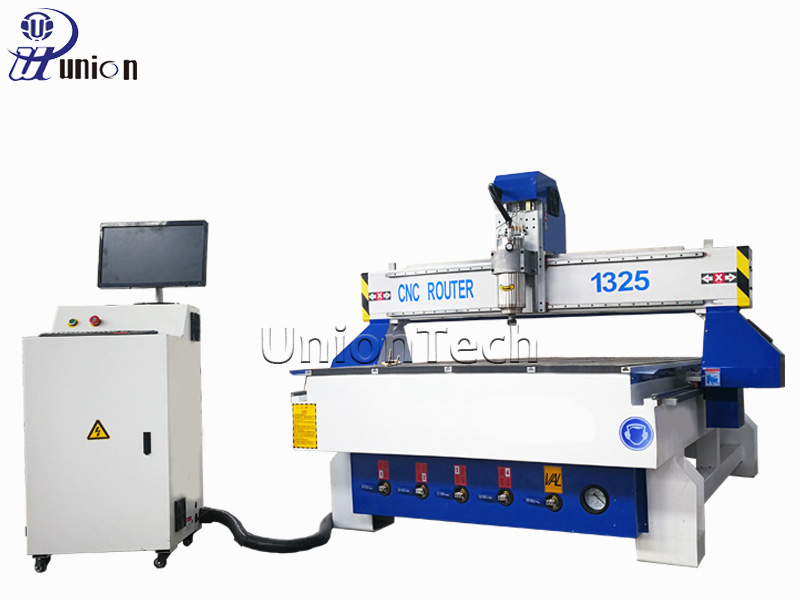

woodworking cnc router machine

Tel：+86 15562667312
Email：bill@union-cnc.com
WhatsApp：+86 15562667312
Parameter
Parts
Applications

Parameters of the cnc machine router:

Model

UT-1325B cnc router china

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

Weihong NCstudio control system

Control box

Double doors control box

Spindle

3KW water cooling spindle

Spindle speed

0-24000RPM

Motor and Driver

Leadshine driver and stepper motor

Inverter

3.7kw Fuling inverter

Structure

Heavy duty thicker and bigger welded frame and gantry

Table surface

T-slot and Vacuum Working Table with 4 zones

Gantry structure

Gantry Moving

Vacuum pump

5.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 20# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length

We offer:


1)Guarantee the machine for one year.Any damage to the machine caused by improper use will be charged.

2)Delivery the machine within 7-14 days after received your payment

3)24 hours technical support Internet or by Telephone, free instructions and Problem solving.

4)Free installation and fully test before sending and free training for operators


Parts of woodworking cnc router machine

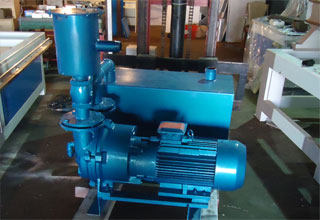

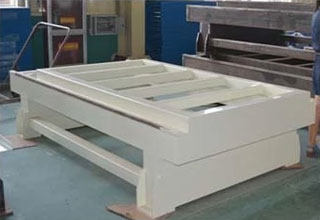

Machine structurevacuum and T slot tablevacuum pump


20180502110404837.jpg@!w400
20180428152240907.jpg@!w400

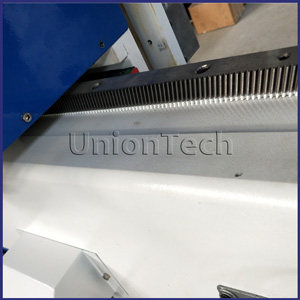

stepper motor and driverGear rack transmissionHiwin rails and TBI ball screw


Applications:


Building Industry ( Architectural Decoration Elements, Kitchen Cabinet & Door, Facades & Curtainwall, Column & Balustrade )

Sign& Advertising ( Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)

Models & Prototyping

Plastics & Composites ( ACP, ACM and solid surface material etc ) non-ferrous metals & Marine
