Parameter
Parts
Applications

Model

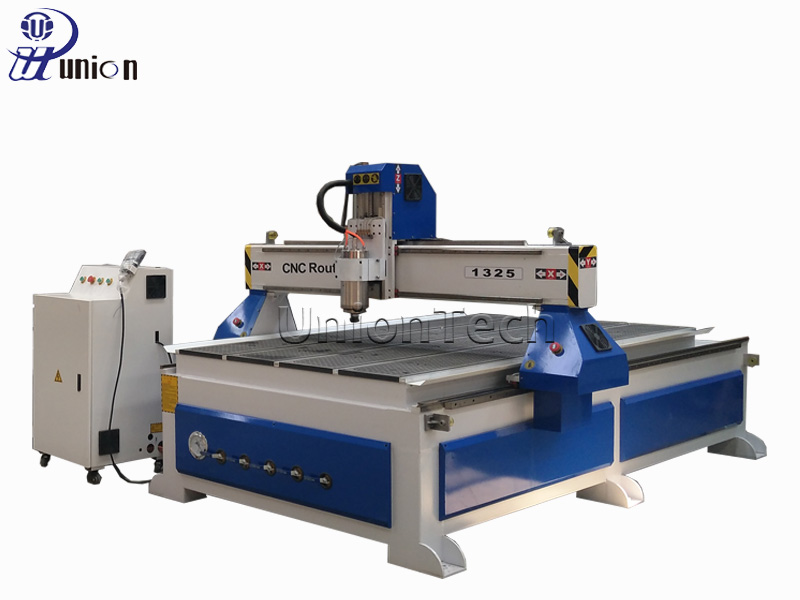

UT1325A woodworking cnc router

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP A11 control system

Spindle

3KW water air cooling spindle

Spindle speed

0-24000RPM

Motor and Driver

Leadshine driver and stepper motor

Inverter

3.7kw Fuling inverter

Structure

New type thicker and bigger welded frame and gantry

Table surface

T-slot and Vacuum Working Table with 4 zones

Gantry structure

Gantry Moving

Vacuum pump

5.5kw water cooling vacuum pump (380V,  3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

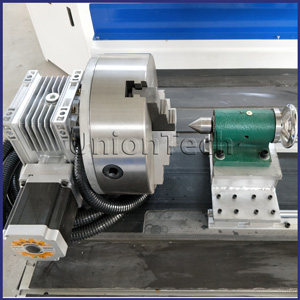

Rotary device: 100mm diameter* 2000mm   length



The wood CNC router details:

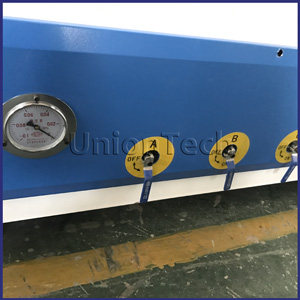

3kw Changsheng Water cooling spindleDSP A11 control systemVacuum valves

Fuling inverter 3.7kwHelical rack gears pinion transmissionRotary device


SOFTWARE

TYPE3, Artcam or UCANCAM


Spare Parts, Tools and Accessories for the machine

1. Tool bit  _________________________________________________ 1  set


2. Collets  ER20 or ER25 _____________________________ 4 pcs


3. Clamps  for fastening workpiece  ____________________________  6 pcs


4. Fused core  ______________________________________________ 2 pcs


5. Brush __________________________________________________1piece


6. Allen Key _______________________________________________ 4 pcs


7. Open Spanner ___________________________________________ 2pcs


8. Sealing Strip _____________________________________________ 1 piece


9. Achor Bolt _______________________________________________ 4-6 pcs


Wide range of application:

Except for advertising work. It is mainly designed for woodworking,any kinds of wood and plastic material processing work,

door making,furniture making etc.



Suitable for Materials:

Engrave and cut on hard wood, MDF,Acrylic sheet, ABS double color sheet, PVC foam sheet, metal, Aluminum and plastic composite panel,

wooden sheet, PCB Aluminum sheet etc.
