Parameters of cnc router spare parts:

Model

UT-1325C cnc  router parts

Working area

1300*2500*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

DSP A11 control system

Control box

Inside control box

Spindle

3.5KW HQD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

Japanese YASKAWA servo driver and motor

Inverter

7.5kw Fuling inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 4   zones

Gantry structure

Gantry Moving

Vacuum pump

3kw Becker vacuum pump (380V, 3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 20# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length


  • Solid steel frame constructure.

  • Professional air cooling spindle for woodworking,

  • DSP remote Control user-friendly operator interface,

  • Tool Calibration,

  • High Speed 3-axis Motion Controller,

  • Precision dual Y-axis micro stepping or servo drives,

  • Available for 4X8 CNC Router, 5X10 cnc router, 6X10 cnc router etc any size.


Details of the cnc router parts:

20180502110404843.jpg@!w400

20180502154901847.jpg@!w400

20180502110404275.jpg@!w400

7.5kw Fuling inverter,

Best quality in China

6kw HQD air cooling spindle,

Chinese best brand,

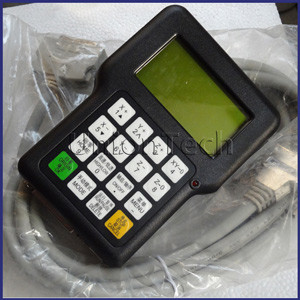

DSP A11 controller,

Most popular for 3axis cnc router

20180502154906984.jpg@!w400

20180502154901467.jpg@!w400

20180502163056393.jpg@!w400

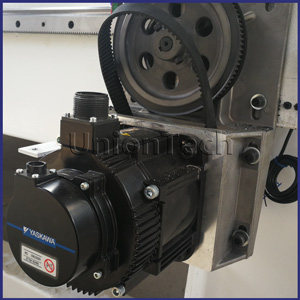

YASKAWA servo motor,

Japanese famous brand, higher speed

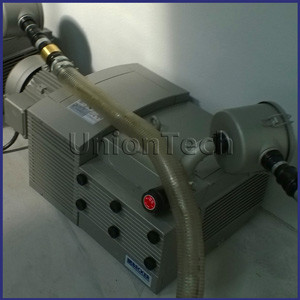

Becker pump,

Germany brand, kvt3.140

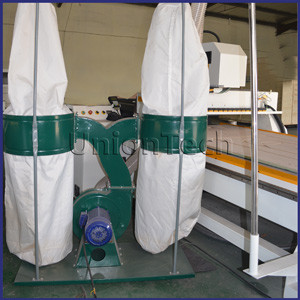

Dust collector,

3kw double packages


1. Wood furniture industry


Doors; Cabinets; Tables; Chairs.


Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising industry


Signage; Logo; Badges; Display board; Meeting sign board; Billboard


Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die industry


A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.


wood crafts; gift box; jewelry box
