Parameters:


Model

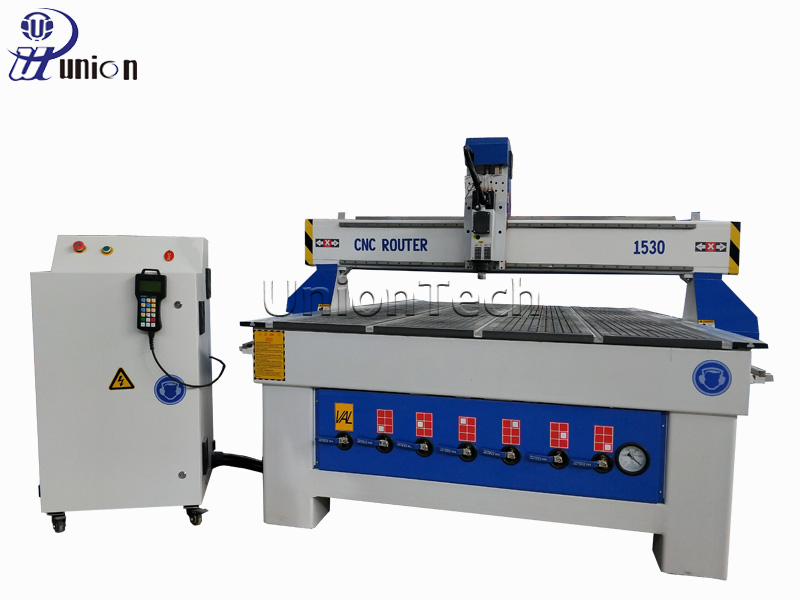

UT-1530A 3d engraving machine

Working area

1500*3000*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

NK105 control system

Control box

Independent control box

Spindle

7KW Italy HSD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

Leadshine 860H driver and stepper motor

Inverter

7.5kw Fuling inverter

Structure

Thicker and bigger welded frame and gantry

Table surface

T-slot and Vacuum Working Table with 6 zones

Gantry structure

Gantry Moving

Vacuum pump

kvt3.14 Becker vacuum pump (380V, 3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length



 Solid steel frame constructure

 High-frequency 7kw spindle

 NK105 remote Control user-friendly operator interface

 Auto lubrication system

 High Speed 3-axis Motion Controller

 Precision dual Y-axis micro stepping drives


Machine details:

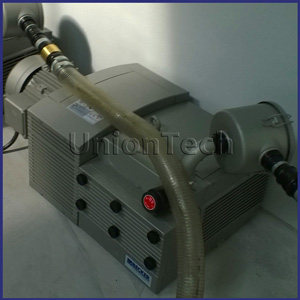

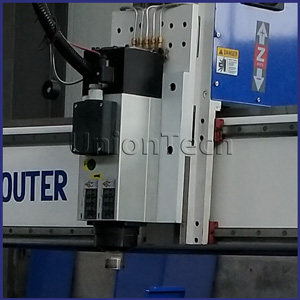

7kw Italy HSD air cooling spindleFuling inverter 7.5kwGermany Becker pump

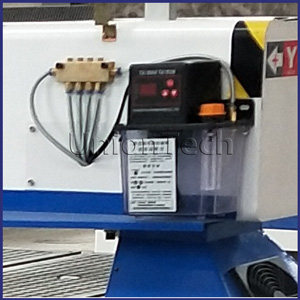

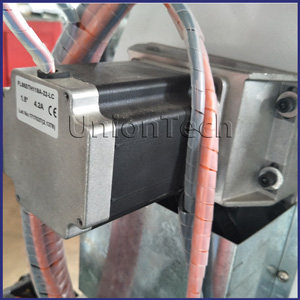

Auto oil lebrication systemStepper motor

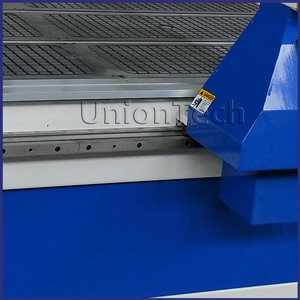

Gear and rack:

High precision Helical gear and rack , Left helical and right helical gear rack, gear and rack length 1400mm/pc



cnc router engraver machine can be used in following industries:

Building Industry ( Architectural Decoration Elements, Kitchen Cabinet & Door, Facades & Curtainwall, Column & Balustrade )

Sign& Advertising ( Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)

Models & Prototyping

Plastics & Composites ( ACP, ACM and solid surface material etc )

non-ferrous metals & Marine
