Parameters:

Model

UT-2030A

Working area

2000*3000*200mm (can be customized)

Working Voltage

220V, 1PHASE, 50HZ (can be customized)

Control System

Weihong NCstudio control system

Control box

Independent control box

Spindle

3kw water cooling spindle

Spindle speed

0-24000RPM

Motor and Driver

Leadshine 860H driver and stepper motor

Inverter

3.7kw Fuling inverter

Structure

Thicker and bigger welded frame and   gantry

Table surface

T-slot and Vacuum Working Table with 6   zones

Gantry structure

Gantry Moving

Vacuum pump

7.5kw water cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan Hiwin 20#   Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length


Machine details of 2030 cnc router:

3kw HQD water cooling spindle,

Best quality in China, 0-24000RPM

3.7kw Fuling inverterFrench Schneider electric parts

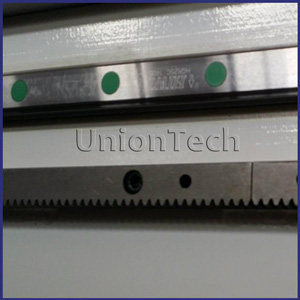

HIWIN 20 guide rails:

HG series linear guideway can achieve a long

life with high speed, highly accurate and

smooth linear motion.

7.5kw vacuum pumpTool box

SOFTWARE

TYPE3, ARTCAM or UCANCAM

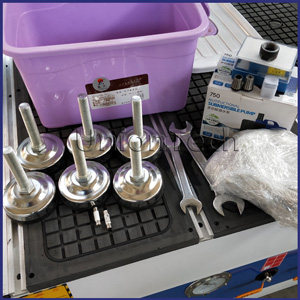

Spare Parts, Tools and Accessories for the machine

1. Tool kit  _________________________________________________ 1 kit


2. Collets  ER20  ______________________________ 4 pcs


3. Clamps for fastening workpiece  ____________________________  8 pcs


4. Kit of bits  ______________________________________________ 1 set


5. Brush____________________________________________________ 1piece


6. Allen Key _________________________________________________  4pcs


7. Open Spanner ____________________________________________  2pcs


8. Sealing Strip (if with vacuum table) _____________________________ 1 piece


9. Anchor Bolt _______________________________________________ 4-6pcs


Applicable Industries and materials


Wood furniture industry


Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


Advertising industry


engraving and cutting various labels and number plate like signage; logo; badges; display board; meeting sign board; billboard.


Artwork and Decoration


wood crafts; gift box; jewelry box


Art craft: engraving characters of any languages and graphics on souvenirs.


Others


Relief sculpture and 3D engraving and Cylindrical object.
