Parameters of wood engraving machine:

Model

UT-1530C cnc router

Working area

1500*3000*200mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

NCstudio control system, connect with computer

Control box

Inside control box

Spindle

6KW Italy HSD air cooling spindle

Spindle speed

0-18000RPM

Motor and Driver

Taiwan DELTA servo driver and motor

Inverter

7.5kw DELTA inverter

Structure

Heavy duty thicker and bigger welded frame and gantry

Table surface

T-slot working table with PVC

Gantry structure

Gantry Moving

Dust collector

3kw double packages

Calibration

Manual tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan PMI 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Optional

Rotary device: 200mm diameter* 2000mm   length

Features:

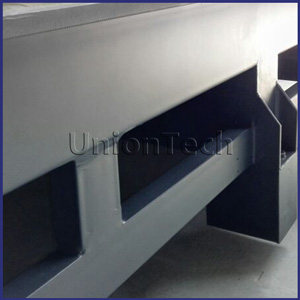

10-12mm industrial square tube strong bed. You can use our cnc router for more than 10 years.


T-slot working table, pvc protection. We can also provide vacuum table if needed.


 Weihong control system, very easy operation, It can go on working after the pausing.


 Italy HSD 6KW Air cooling spindle. International famous brand, good using and guaranteed after-sale service

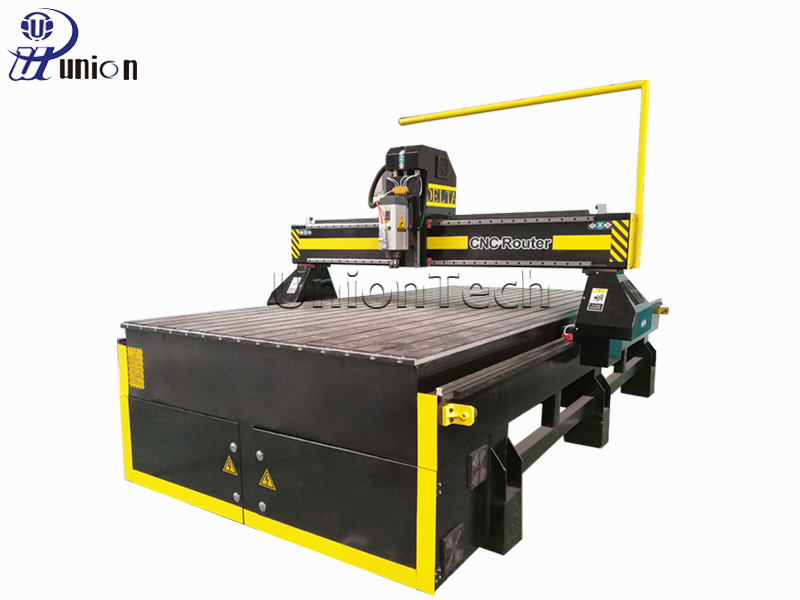

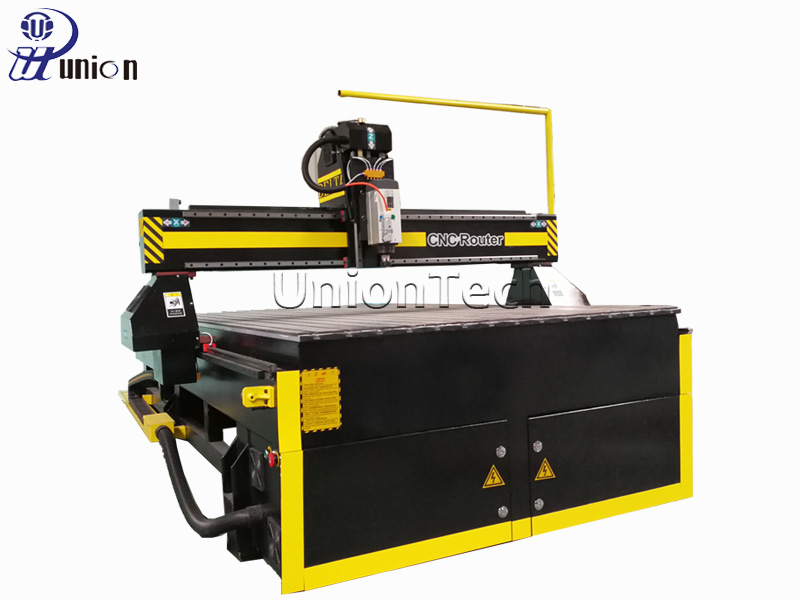

Machine details of 5* 10 ft cnc router:

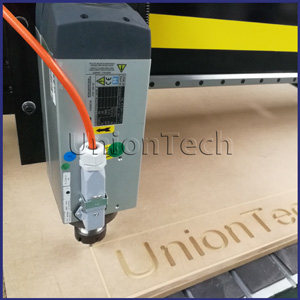

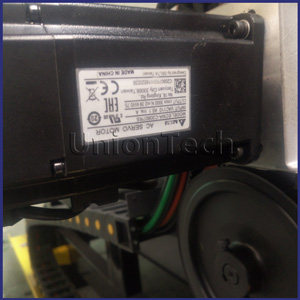

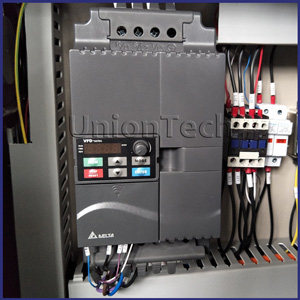

Italy 6kw HSD air cooling spindleDELTA servo motor:DELTA inverter:

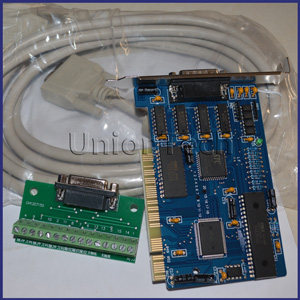

T-slot working table with PVCWeihong control board:Paintings


1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,

interior doors, sofa legs, headboards and so on.


2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,

and other advertising materials derivatives making.


3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe,

wooden planks and other non-metallic mold.
