Features:

  • Chinese brand 6kw air cooling spindle,

  • Heavy duty machine structure,

  • Taiwan DELTA inverter,

  • Professional NK105 control system,

  • Vacuum working table with Chinese oil free pump,


Parameters:

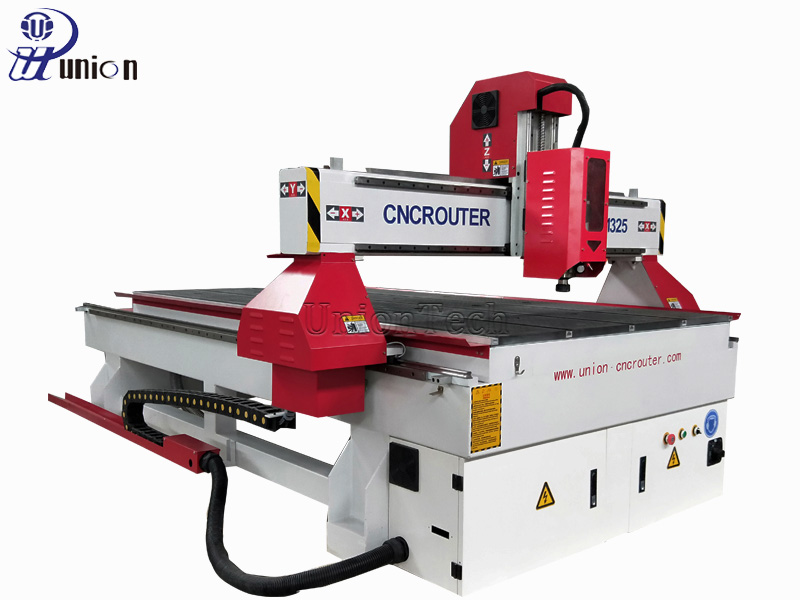

Model
UT-1325C
Working area
1300*2500*200mm
Working voltage
380V, 3ph, 50-690Hz ( 220V, 1ph for option)
Control systemWeihong NK105 controller
Spindle
HQD 6kw air cooling spindle
InverterTaiwan DELTA inverter
Motor and driver
Leadshine driver and stepper motor
X,Y,Z Repositioning Accuracy±0.03mm
Structure
Heavy duty bigger and thicker steel tube
Working table
Vacuum table with T-slot
Lubrication systemManual
X, Y StructureGear and rack transmission, HIWIN Linear Rail
Z StructureTaiwan TBI Ball Screw, HIWIN 20 Linear Rail
Command LanguageG code
Computer InterfaceUSB interface


Main parts:

20180502154901847.jpg@!w400

20180428152351981.jpg@!w400

20180428152238636.jpg@!w400

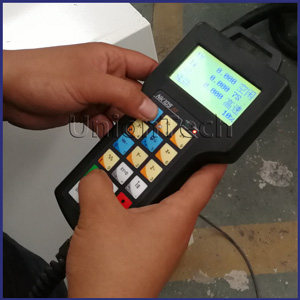

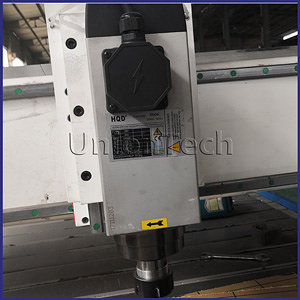

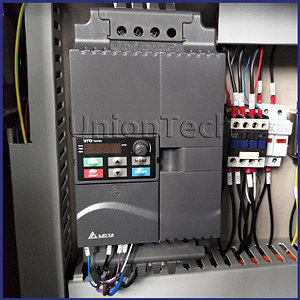

HQD 6kw air cooling spindleNK105 G2 controllerDELTA inverter

20180428152240907.jpg@!w400

20180428152238732.jpg@!w400

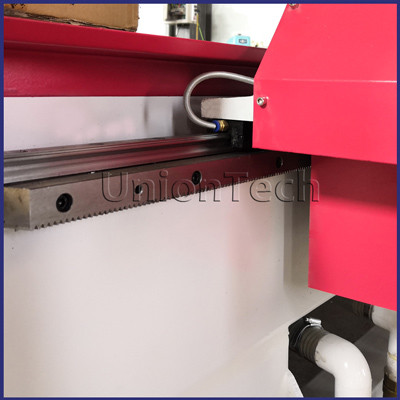

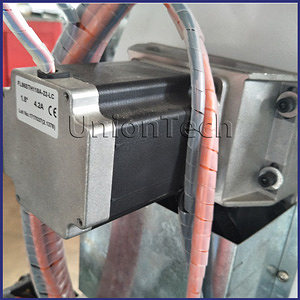

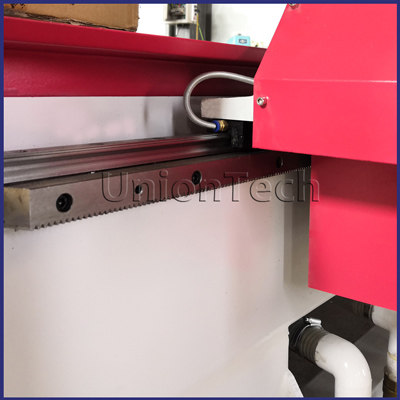

Linear guide rails and rach pinionBall screw for Z axisStepper motor


Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,

craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,

crystal word making, blaster molding, and other advertising materials derivatives making.



3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial

marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



4. relief sculpture, 3D engraving & Cylinder object engraving.
