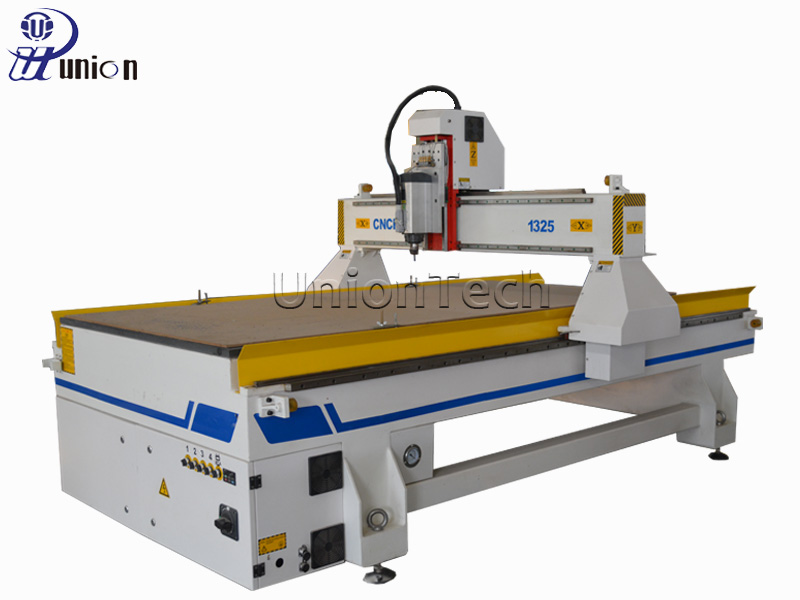

Parameters of 4*8ft cnc router:

ModelUT-1325C cnc router 3 axis
Working area1300-2500*200mm
Working Voltage380V, 3PHASE, 50HZ (can be customized)
Control SystemDSP A11 controller
Spindle3.5kw Chinese HQD air cooling spindle
Spindle speed0-18000RPM
Motor and DriverJapanese YASKAWA servo motor
Inverter7.5kw Fuling brand
StructureHeavy duty thicker and bigger welded frame and gantry
Table surfaceT-slot with PVC
CalibrationManual tool sensor
Transmission

X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 20# Rail Linear Bearing

Z Axis: Taiwan TBI2510 Ball Screw

Repositioning resolution0.02mm
Command languageG code
SoftwareArtCam, JdPaint,Type3


HQD air cooling spindleDSP A11 control systemTBI ball screw

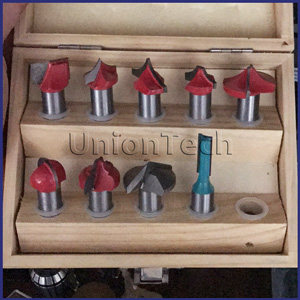

Dust collectorT-slot working tableTools


1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
