Features:

  • Italy imported HSD air cooling spindle,

  • Heavy duty machine structure,

  • Taiwan DELTA inverter,

  • Professional NK105 control system,

  • Vacuum working table with Becker pump,


Parameters:

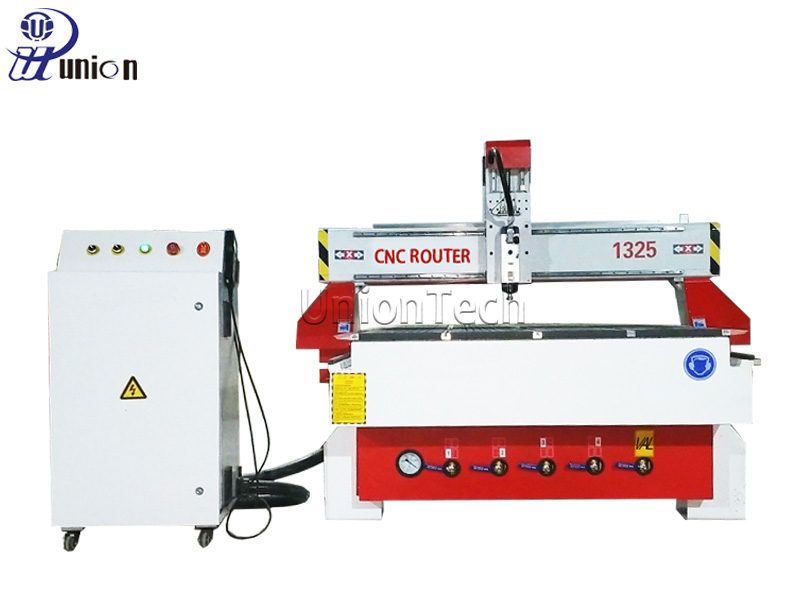

Model
UT-1325B
Working area
1300*2500*200mm
Working voltage
380V, 3ph, 50-690Hz ( 220V, 1ph for option)
Control systemWeihong NK105 controller
Spindle
Italy HSD 6kw air cooling spindle
InverterTaiwan DELTA inverter
Motor and driver
Leadshine driver and stepper motor
X,Y,Z Repositioning Accuracy±0.03mm
Structure
Heavy duty bigger and thicker steel tube
Working table
Vacuum table with T-slot
Lubrication systemAuto
X, Y StructureGear and rack transmission, HIWIN Linear Rail
Z StructureTaiwan TBI Ball Screw, HIWIN 20 Linear Rail
Command LanguageG code
Computer InterfaceUSB interface



20180428152238636.jpg@!w400

20180428152351981.jpg@!w400

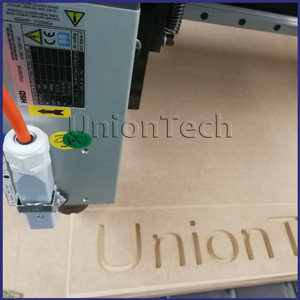

  • 6kw Italy HSD air Cooling Spindle

Spindle speed: 18000RPM

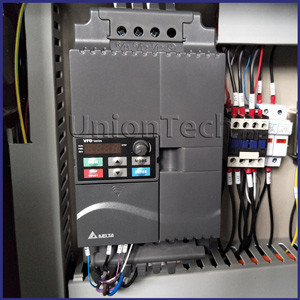

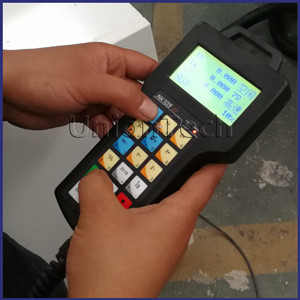

7.5kw DELTA inverterNK105 controller

20180428152240907.jpg@!w400

20180428152238732.jpg@!w400

20180428152240631.jpg@!w400

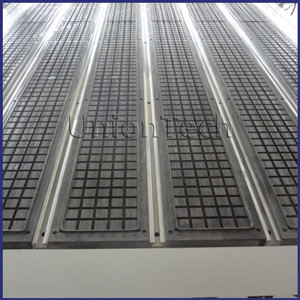

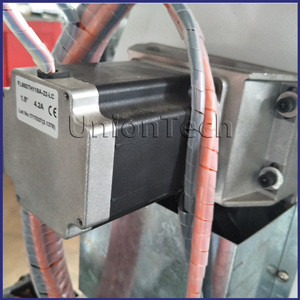

TBI ball screw for Z axisStepper motorVacuum working table with T-slot


1. Wood furniture industry


Doors; Cabinets; Tables; Chairs.


Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.


2. Advertising industry


Signage; Logo; Badges; Display board; Meeting sign board; Billboard


Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.


3. Die industry


A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.


wood crafts; gift box; jewelry box


4. Others


Relief sculpture and 3D engraving and Cylindrical object.
