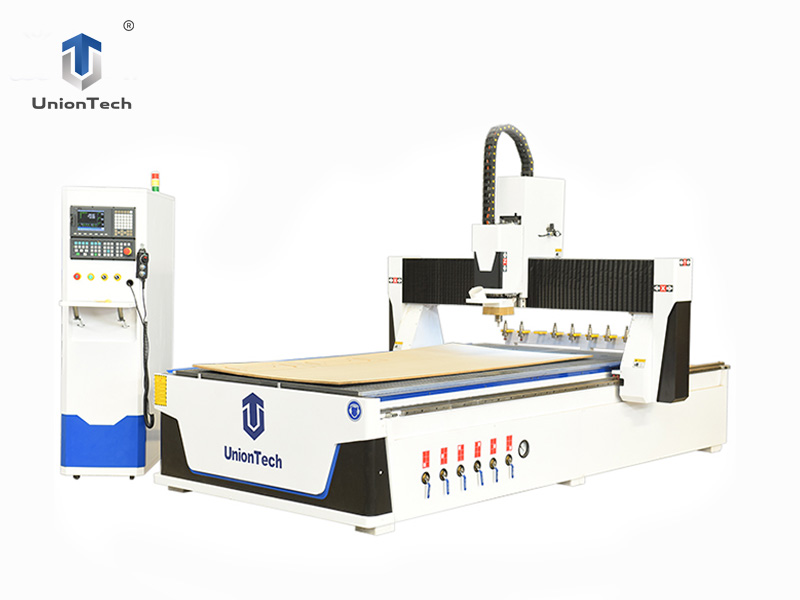

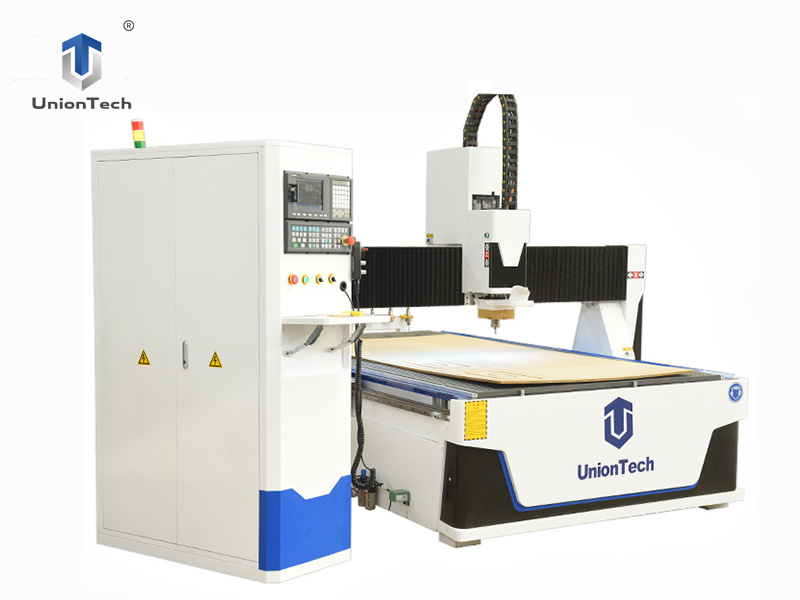

UnionTech New Design 1530 ATC CNC Router Machine

Brand : UnionTech
Model : UT-1530ATC
Category : ATC CNC Router
Price Range : $11000 to $17000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter

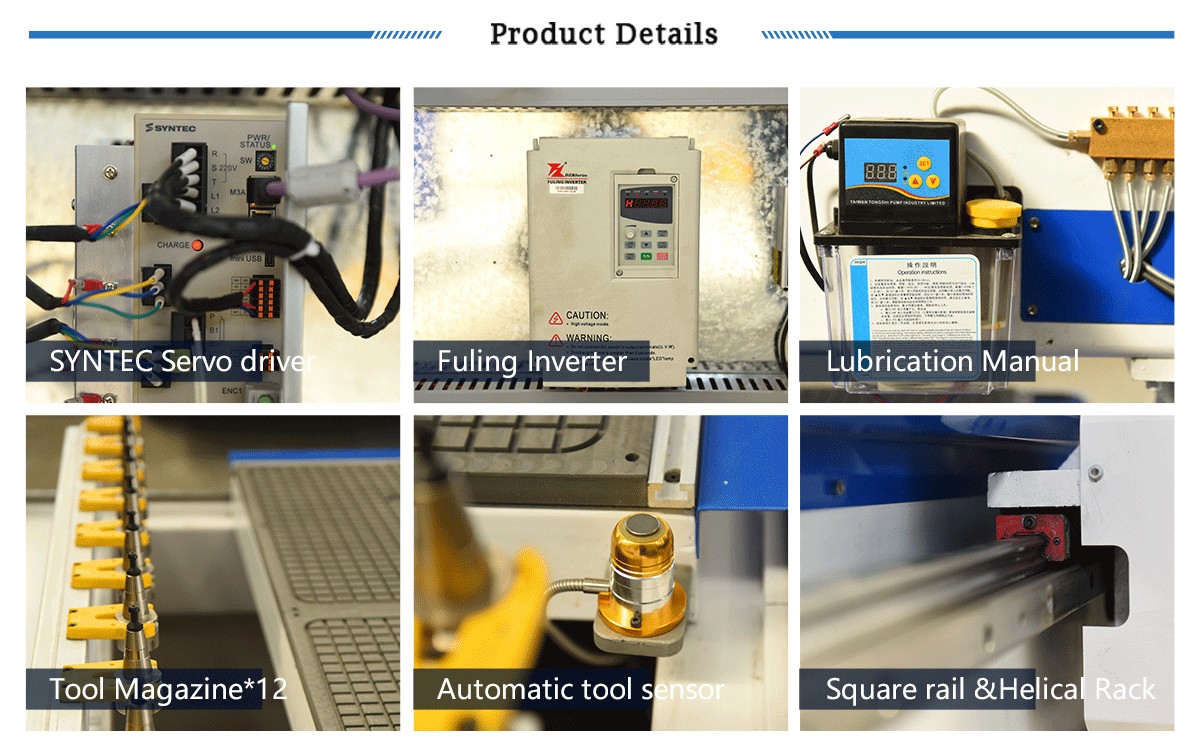

Parts
Applications

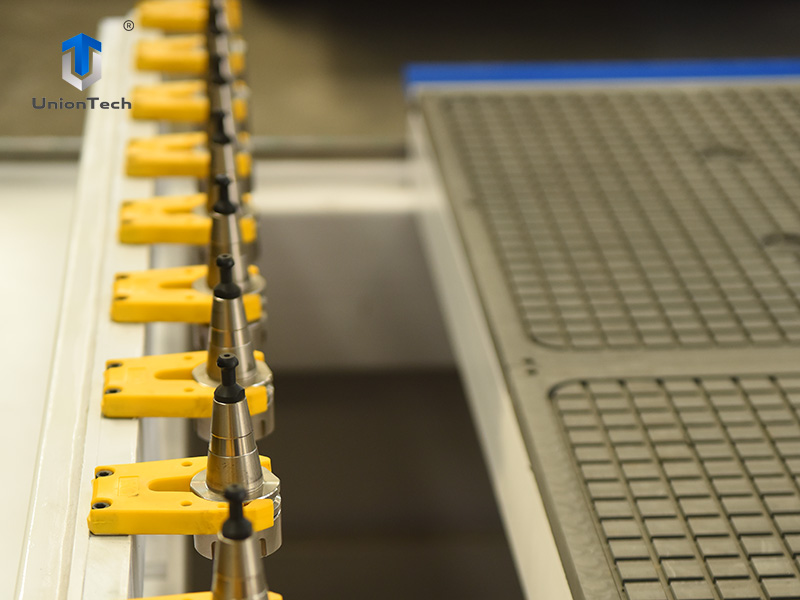

  1. Linear automatic tool changer, 5x10 CNC machine can change 8/10/12 sets of tools automatically in wood engraving or cutting, which saves a lot of time and labor cost for heavy-duty or long time woodworking.

  2. The imported servo motor, makes machine running smoothly.

  3. The working size of the 5x10 CNC Router can be customized according to your needs.

  4. 5x10 CNC Router has a dust collector, so it can make the machine cleaner.



ModelUT-1530ATC
X,Y axis travelling1300*2500mm/1500*3000mm/2000*4000mm
Z axis travelling200mm/300mm/400mm
Spindle 9kw air cooling spindle, ISO30
Inverter11kw Fuling/DELTA
Tool storageLinear type with 8/10/12 tools
Tool holderISO30, ER32 collet
Control systemTaiwan LNC/Syntec
Driving systemJapanese YASKAWA servo motor
Working tableAluminum T-slot and Vacuum table
Position cylindersYes, X2, Y3
TransmissionX,Y axis: Taiwan helical racks and pinion,Z axis: Taiwan ball screw,
Tool calibrationAuto tool sensor
Compatible softwareArtcam, Aspire, AlphaCAM, Fusion 360, etc.
Command languageG code & M code
Travelling speed80m/min
Working speed0-25m/min
Working air requested≥0.8Mpa
Working accuracy±0.03mm
Working voltage

220V,1ph/3ph, 50/60Hz. 380V,3ph,50/60Hz


Vacuum pumpWater circulation pump,Rotary vane pump, Air pump,Germany Becker pump
Dust collect system3kw/5.5kw/7.5kw, double/four bags.
Air compressorPiston air compressor,Screw air compressor
Protection deviceInfrared light curtain




Applicable Materials:  Wood, MDF, plywood, acrylic, artificial stone, artificial marble, bamboo, organic board, double-color board, PVC board, copper, aluminum, brass, and other materials.


A rotary axis CNC wood router is good at carving wood cylinders with the help of the rotary device. For example, square or rectangle wooden sticks, round sticks, rubber sticks, etc. This helps make table legs, chair armrests, stair armrests, handrails, building columns, pillars, posts, 3D statues, molds, and other three-dimensional workpieces.


Applicable Industries:

Woodworking: Home doors, windows, beds, cabinets, tables, chairs, kitchenware, exquisite european furniture, redwood classical and antique furniture, decorative products sculpture.Artworks & Decorations: Wood crafts, jewelry box, gift box, and more exquisite arts & crafts.Music Industry: Musical instruments and loudspeaker box.Mold Making: Copper molds, aluminum molds, metal molds, building models, shoe molds, badge molds, biscuit, chocolate molds, embossed molds, candy molds, plastic sheeting, artificial marble, wood, foam, PVC, and more nonmetal mold.Advertising: Signage, logo making, company plate, sign making, emblem, badges, building numbers, lightbox, acrylic cutting, display panels, decorations, LED/Neon channel, billboard, 3D letters cutting.
