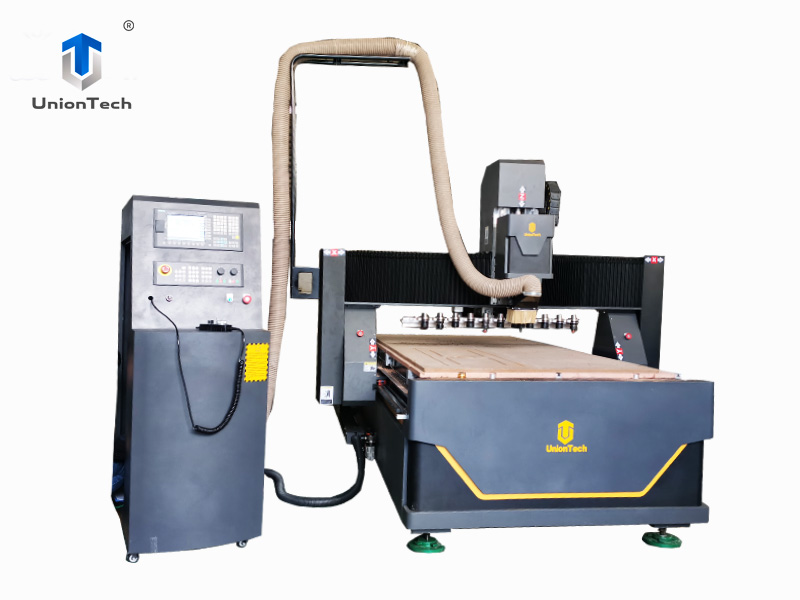

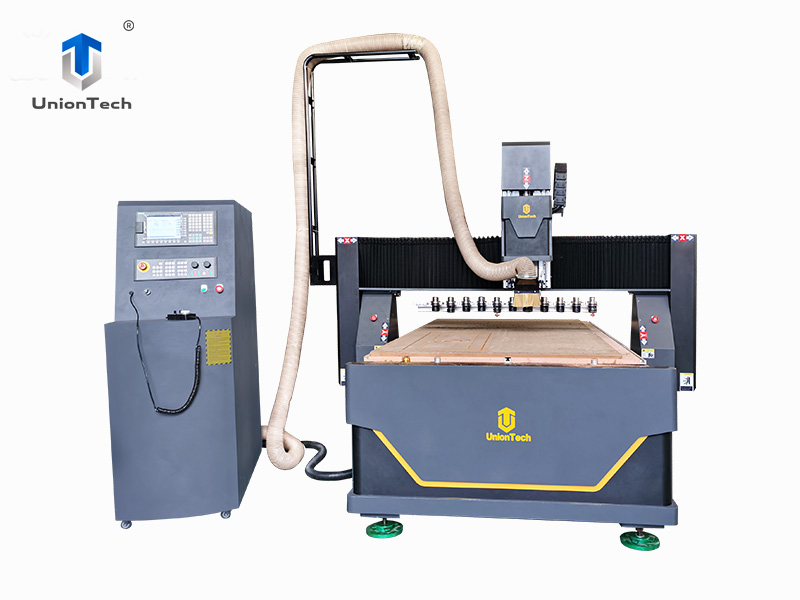

New design ATC cnc router machine for furniture making

Brand : UnionTech
Model : UT-1530ATC
Category : ATC CNC Router
Price Range : $11000 to $17000 / Set
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards.
After-sale Service : Free professional machine operation training.
Supply Ability : 200 Sets per Month
Tel:+86 15562667312
Email:bill@union-cnc.com
WhatsApp:+86 15562667312
Parameter
Parts
Applications

Parameters

Model

UT1325 atc cnc router

Working area

1300*2500*300mm (can be customized)

Working Voltage

380V, 3PHASE, 50HZ (can be customized)

Control System

SIEMENS control system

Control box

Imported Rittal control box

Spindle

12kw water cooling spindle

Spindle speed

0-18000RPM

Tool holderHSK 63F

Motor and Driver

SIEMENS servo driver and motor

Inverter

15kw DELTA inverter

Structure

Heavy duty thicker and bigger welded   frame and gantry

Table surface

T-slot and Vacuum Working Table with 4 zones

Gantry structure

Gantry Moving

Vacuum pump

7.5kw air cooling vacuum pump (380V,   3PHASE, 50HZ)

Calibration

Auto tool sensor calibration

Transmission

X,Y Axis: Helical rack, Taiwan   Hiwin/PMI/ABBA 25# Rail Linear Bearing

Z Axis: Taiwan TBI Ball Screw

Command language

G Code

Software

ArtCam, JdPaint,Type3

Auto tool changer

Linear type with 12 tools



Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,craft sash,

composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4. relief sculpture, 3D engraving & Cylinder object engraving.
